HP Array Configuration Utility 30
†If performed with a Gen8 controller, this task requires a registered HP SmartCache license key.
Configuring a controller
1. Open ACU.
For more information, see "Using the ACU GUI (on page 19)."
2. Select a controller from the Controller/Device menu.

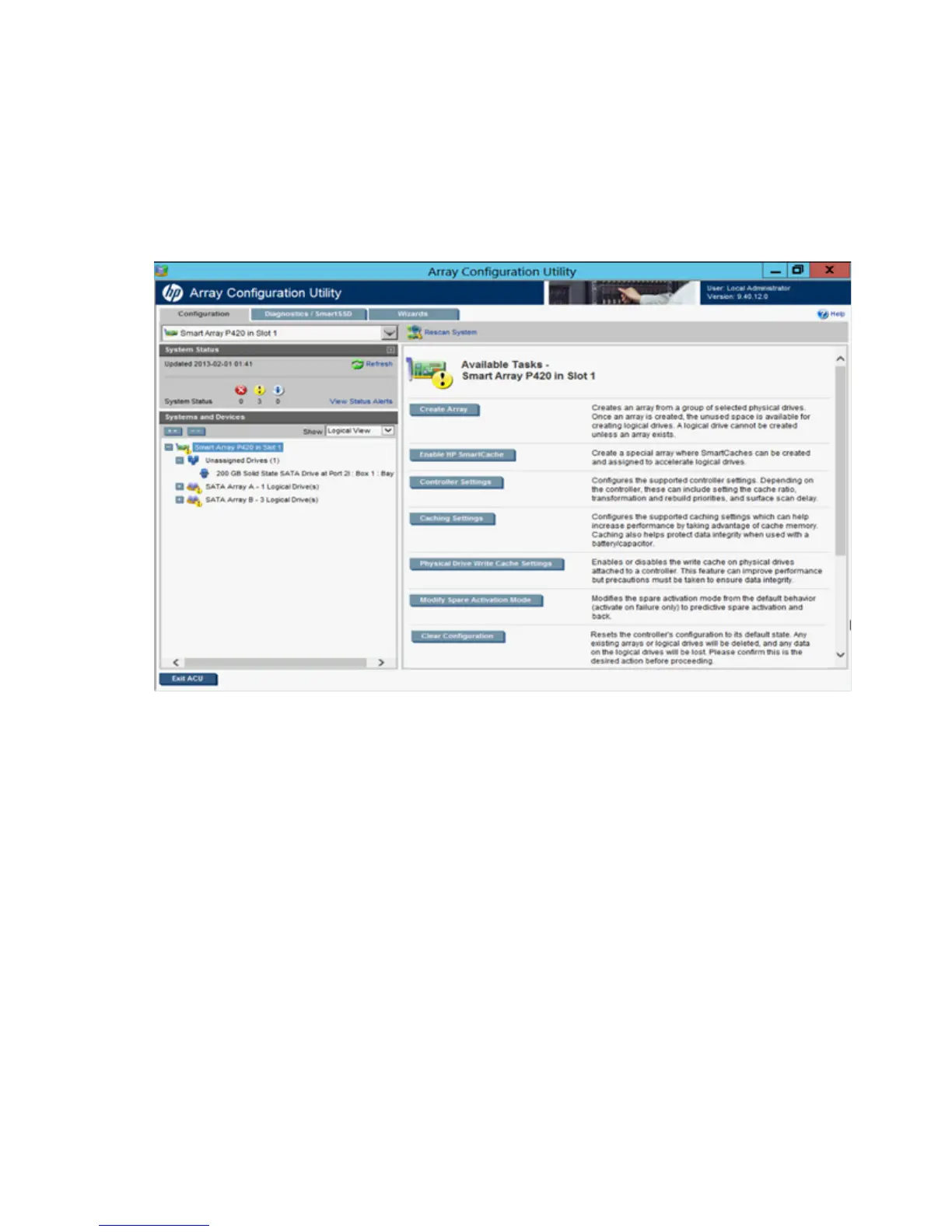

The Configuration screen appears.
3. Configure the controller:
o To configure manually, see "Performing a Configuration task (on page 30)."
o To configure with a wizard, see "Using Wizards (on page 42)" or "Using Express Configuration (on
page 44)."
4. When prompted, save the configuration.
5. Do one of the following:
o Configure an additional controller. Repeat steps 3 through 5.
o Click Exit ACU.
Performing a Configuration task
1. Open ACU.
For more information, see "Using the ACU GUI (on page 19)."
If ACU is already open, click the Configuration tab.
2. Select a device from the Controller/Device menu.
