14. Close the processor cage (Figure 14).
a. Grasp the processor cage handle and rotate the cage closure inward toward the rear of
the assembly until it is completely closed.
b. Push the handle down until it is flush with the cage.
15. Replace the processor board assembly. See “Removing and Replacing the Processor Board
Assembly” (page 30).
16. Replace the memory carrier assembly. See “Removing and Replacing the Memory Carrier
Assembly” (page 21).
17. Replace the memory carrier assembly cover and latch the top cover release lever closed. See
“Removing and Replacing the Memory Carrier Assembly Cover” (page 13).

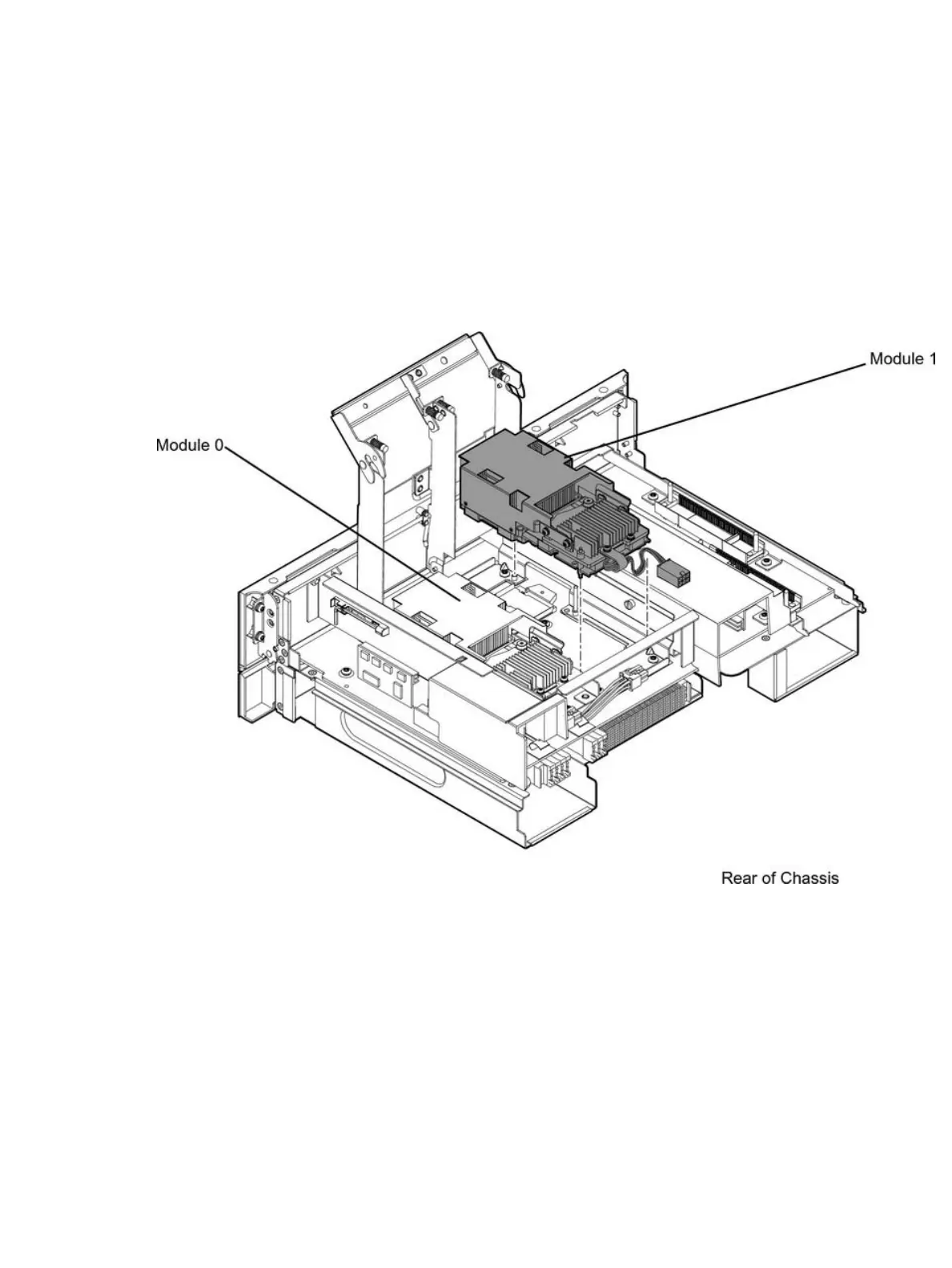

Figure 14 Installing a Dual-Core Processor on the Processor Board
Figure 15 shows the power connector and cable for the processor.
Installing Additional Components 35
