Configuring an iSCSI device 13
iSCSI Statistics tab
To view the iSCSI statistics for the selected adapter:
1. Select an HP Multifunction Adapter in the NCU Main window and click Properties to display the
Multifunction Adapter Properties Settings tab. Alternatively, hold down the Alt key and enter p to
display the Settings tab.

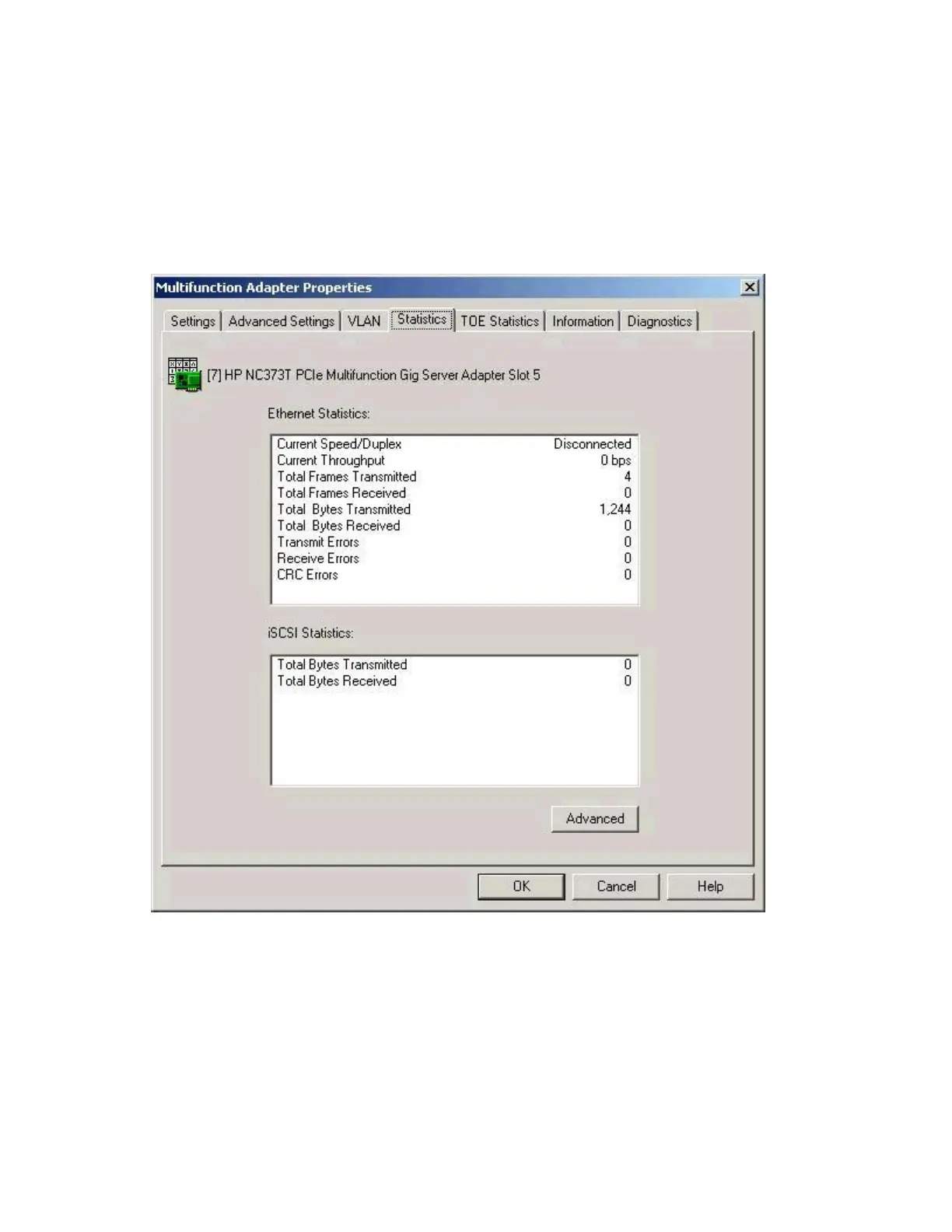

2. Select the Statistics tab. The Multifunction Adapter Properties Statistics tab appears showing activity
on the iSCSI device since it was last initialized.
The following read-only statistics are available:
o Total Bytes Transmitted. Displays the total bytes sent in iSCSI headers and payload.
o Total Bytes Received. Displays the total bytes received in iSCSI headers and payload.
3. Click OK to close the Multifunction Adapter Properties Statistics window.
iSCSI Diagnostics tab
The Diagnostics tab is not supported for iSCSI-enabled adapters.
