2-12
Getting Started
IDM GUI Overview
RADIUS Servers: Clicking the RADIUS Servers node displays the RADIUS List tab,
with status and configuration information for each RADIUS Server in the
Realm that has an IDM Agent installed, or that is manually defined.

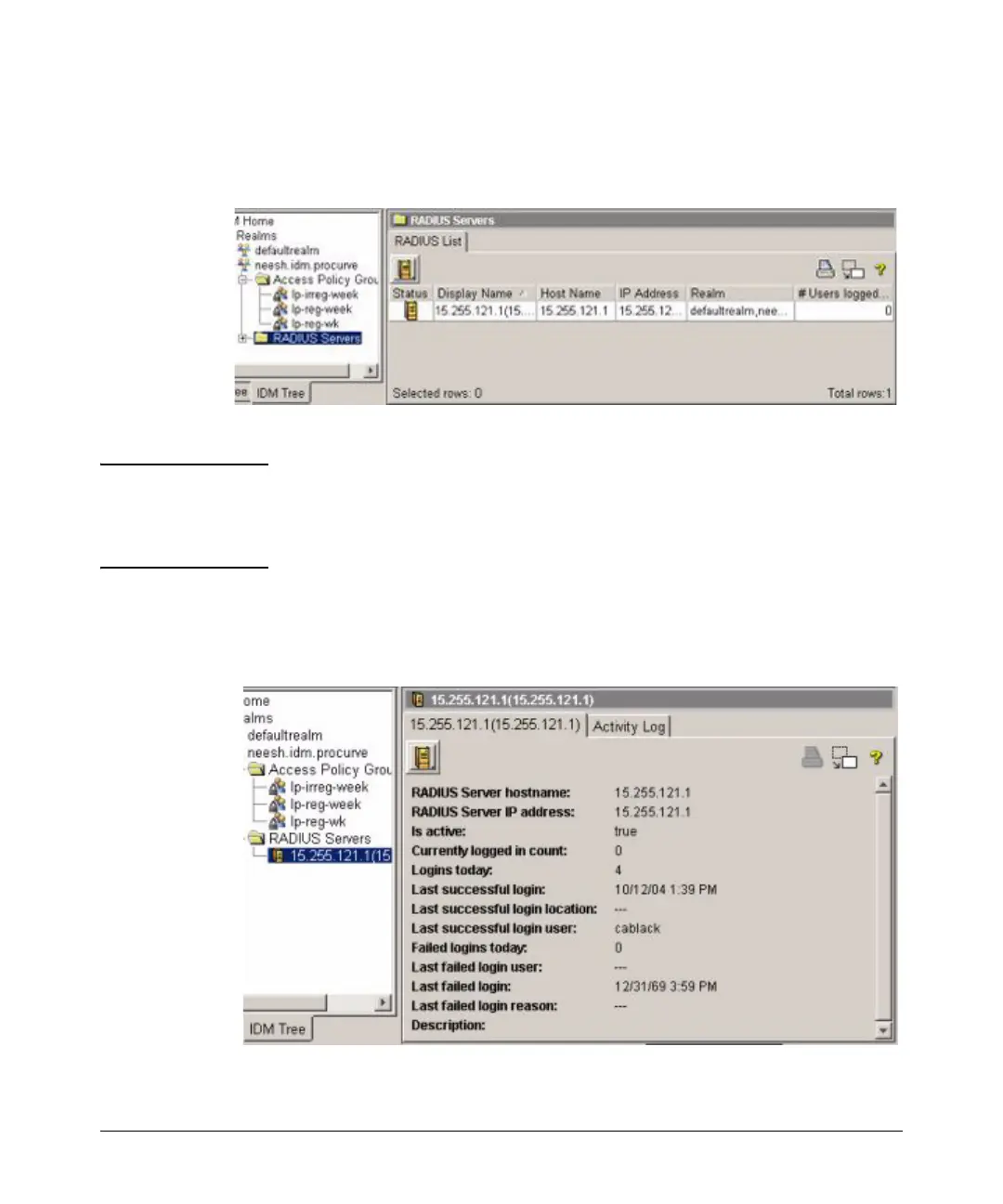

Figure 2-8. RADIUS List tab
NOTE: If the RADIUS server is not in the IDM tree, check in the PCM Events for the
following message: "PCM remote client authentication failure: <ip address>"
Make sure the IP address for the RADIUS server is included in the access.txt
file on the PCM server. See “Installing the IDM Agent” on page 2-2 for details.
You can expand the RADIUS Servers node to view the servers in the tree. Click
the individual server to display the RADIUS Server Properties.
Figure 2-9. RADIUS Server Properties tab
