Installing the Switch
Installation Procedures
Note The mounting brackets have multiple mounting holes and can be rotated
allowing for a wide variety of mounting options. These include mounting the
switch so its front face is flush with the face of the rack as shown in the
illustration, or mounting it in a more balanced position.
2. Hold the switch with attached brackets up to the rack and move it
vertically until rack holes line up with the bracket holes, then insert and
tighten the four number 12-24 screws holding the brackets to the rack.

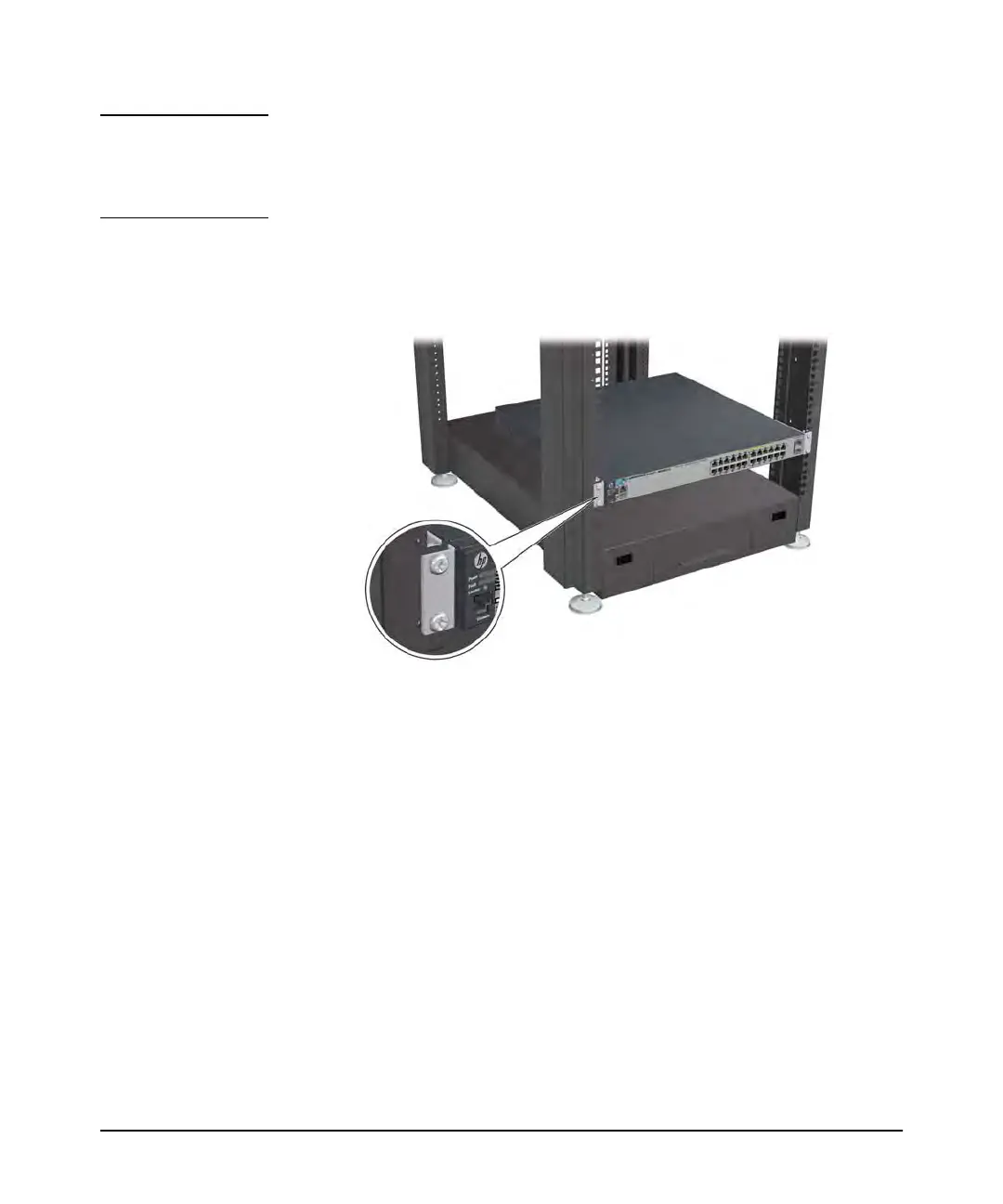

Figure 2-8. Mounting the switch in a rack
To Next Page
