Installing the switch
Installation procedure
Note The mounting brackets have multiple mounting holes and can be rotated allowing
for a wide variety of mounting options. These include mounting the switch so its
front face is flush with the face of the rack as shown in the illustration, or rotating
the brackets so the switch is in a more balanced position with its face forward of the
rack face.

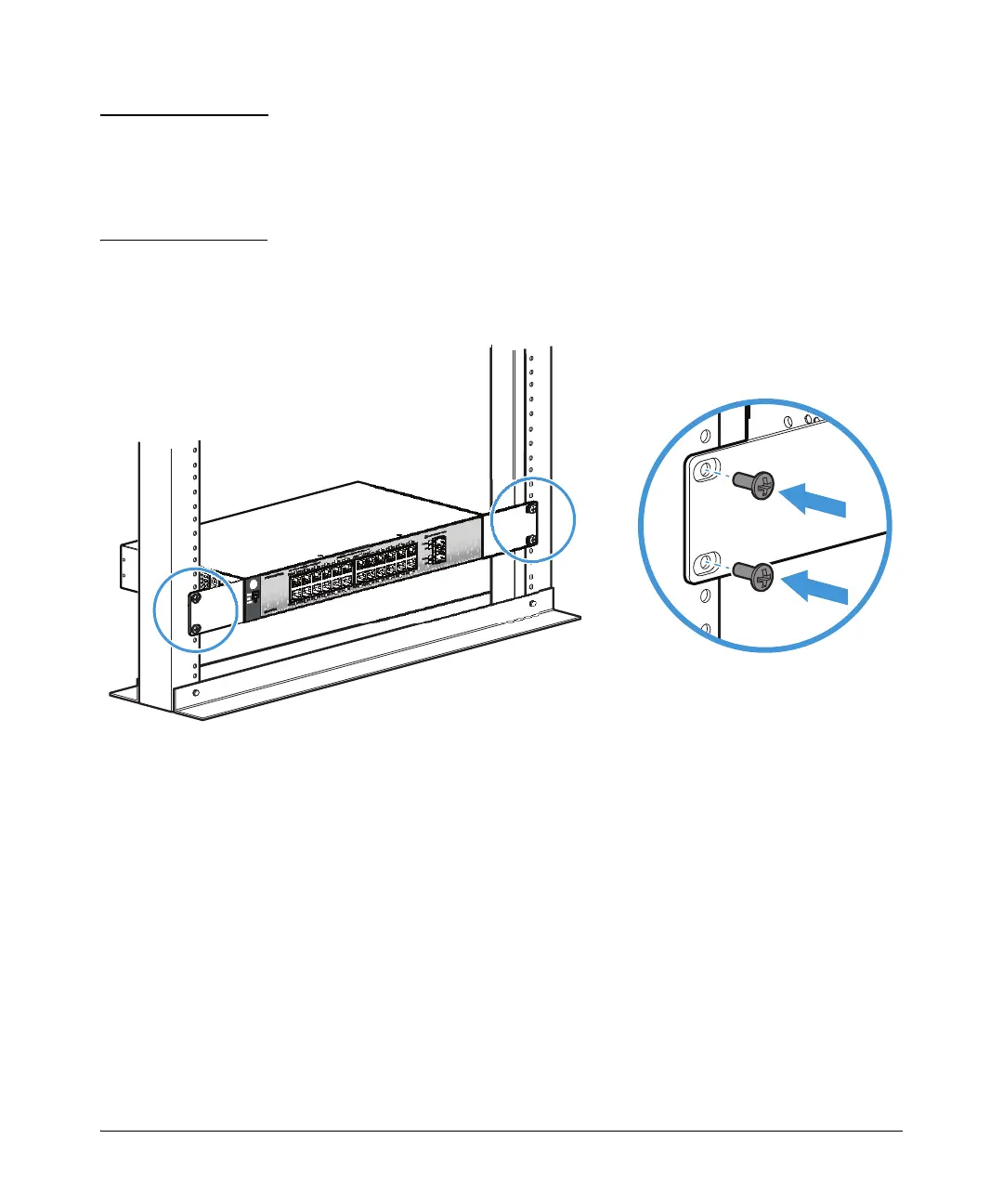

2. Hold the switch with attached brackets in the rack and move it vertically until
rack holes line up with the bracket holes, then insert and tighten the four 12-24
screws holding the brackets to the rack.
