HP LE2201w User Manual

3 Setting Up the Monitor
To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other
attached devices, then follow the instructions below.
Attaching the Monitor Base
1. Set the base on a flat surface such as a table top.
2. Using both hands, position the pedestal over the base and press down firmly to lock it in place. Be
sure the base is securely locked in place and adjust the tilt angle to the desired position.
CAUTION: Do not touch the surface of the LCD panel. Pressure on the panel may cause non-
uniformity of color or disorientation of the liquid crystals. If this occurs the screen will not recover to its
normal condition.

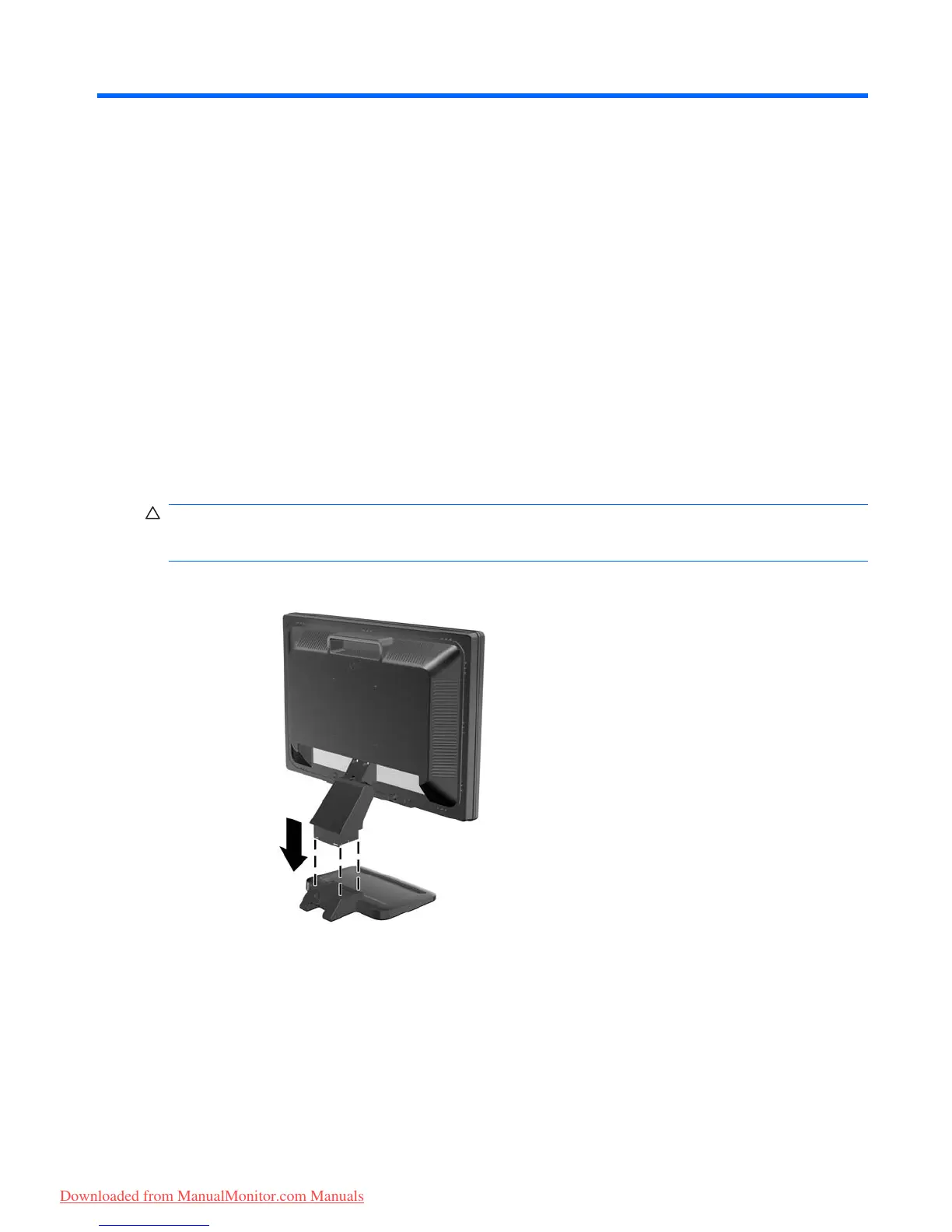

Figure 3-1 Attaching the Base to the Monitor
ENWW Attaching the Monitor Base 5
Downloaded from ManualMonitor.com Manuals

HP LE2201w Specifications

General

3D	No
Pixel pitch	0.282 x 0.282 mm
Aspect ratio	16:10
Display diagonal	22 \
Display resolution	1680 x 1050 pixels
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	720 x 400, 1152 x 870, 1280 x 960, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Plug and Play	Yes
LED indicators	Power
Tilt angle range	-5 - 25 °
Panel mounting interface	100 x 100 mm
Product color	Black
Country of origin	China
Storage temperature (T-T)	20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	161 mm
Package width	587 mm
Package height	489 mm
Package weight	4700 g
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	1 W
Power consumption (standby)	2 W
Power consumption (typical)	35 W
Sync input impedance	75 Ω
Dimensions (W x D x H) (imperial)	20.28 x 2.36 x 13.58 \
Mean time between failures (MTBF)	30000 h
DVI-D ports quantity	0

Weight and Dimensions

Depth (with stand)	207 mm
Height (with stand)	415 mm
Depth (without stand)	60 mm
Width (without stand)	515 mm
Height (without stand)	345 mm
Weight (without stand)	5200 g
