Connecting the Cables

1. Place the monitor in a convenient, well-ventilated location near the computer.

2. Connect a VGA signal cable or DVI-D signal cable.

NOTE: For models with both VGA and DVI-D connectors, the monitor is capable of supporting

either analog or digital input. The video mode is determined by the video cable used. The monitor

will automatically determine which inputs have valid video signals. The inputs can be selected by

pressing the + (Plus) button on the front panel or through the On-Screen Display (OSD) feature by

pressing the Menu button.

●

For analog operation, use the VGA signal cable provided. Connect the VGA signal cable to

the VGA connector on the rear of the monitor and the other end to the VGA connector on the

computer.

●

For digital operation, use the DVI-D signal cable (not provided) (select models). Connect the

DVI-D signal cable to the DVI connector on the rear of the monitor and the other end to the

DVI connector on the computer.

3. Connect the built-in monitor speakers (on select models) to the computer using the audio cable.

NOTE: An optional speaker bar that mounts on to the monitor is available from HP.

4. Connect one end of the power cable to the AC power connector on the back of the monitor, and

the other end to an electrical wall outlet.

Adjusting the Monitor

Tilt the monitor's panel forward or backward to set it to a comfortable eye level.

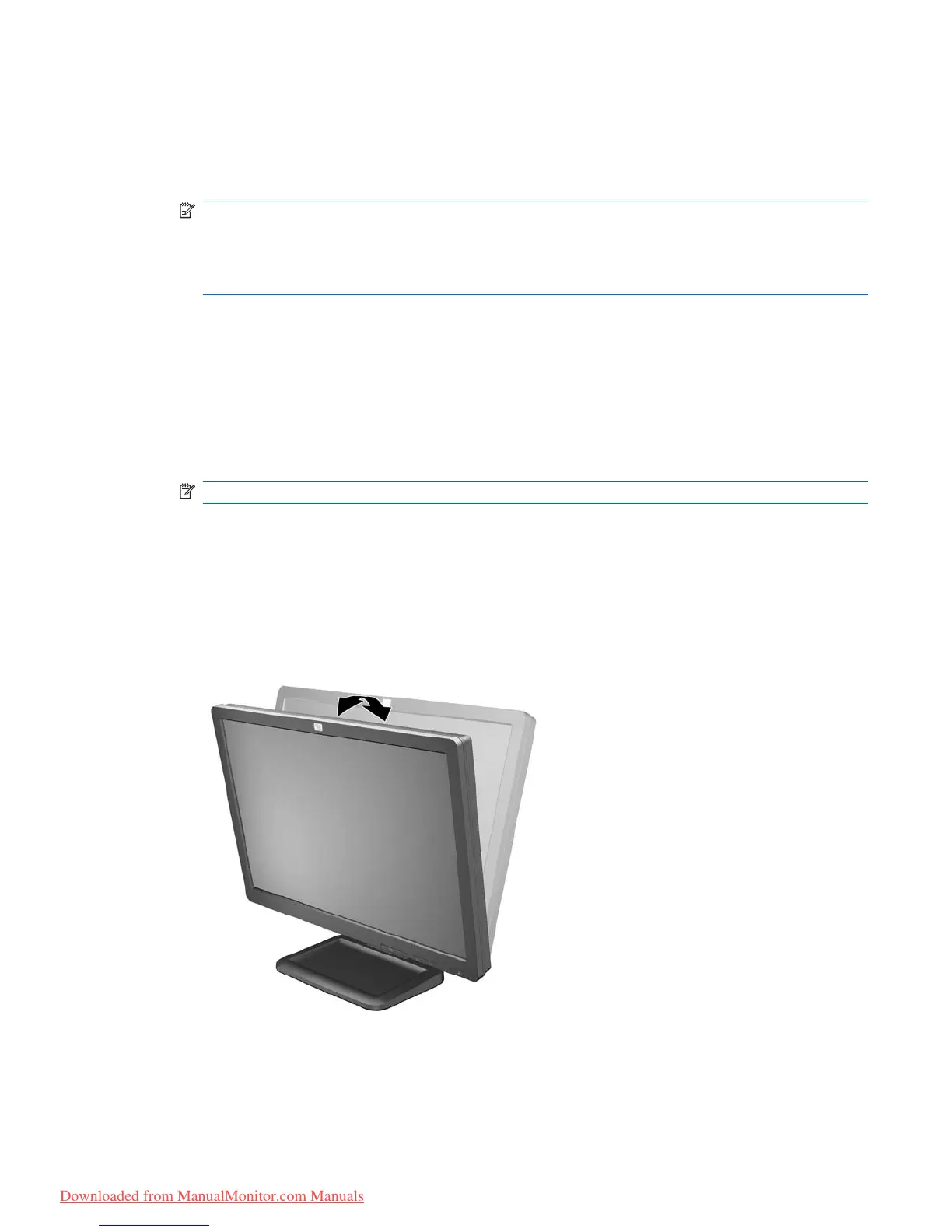

Figure 3-3 Tilting the Monitor

ENWW Connecting the Cables 7

Downloaded from ManualMonitor.com Manuals

Questions and Answers:

Need help?

Do you have a question about the HP LE2201w and is the answer not in the manual?

HP LE2201w Specifications

General

3D	No
Pixel pitch	0.282 x 0.282 mm
Aspect ratio	16:10
Display diagonal	22 \
Display resolution	1680 x 1050 pixels
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	720 x 400, 1152 x 870, 1280 x 960, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Plug and Play	Yes
LED indicators	Power
Tilt angle range	-5 - 25 °
Panel mounting interface	100 x 100 mm
Product color	Black
Country of origin	China
Storage temperature (T-T)	20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	161 mm
Package width	587 mm
Package height	489 mm
Package weight	4700 g
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	1 W
Power consumption (standby)	2 W
Power consumption (typical)	35 W
Sync input impedance	75 Ω
Dimensions (W x D x H) (imperial)	20.28 x 2.36 x 13.58 \
Mean time between failures (MTBF)	30000 h
DVI-D ports quantity	0

Weight and Dimensions
