HP M24fwa - Illustrated parts catalog

8
3 Illustrated parts catalog

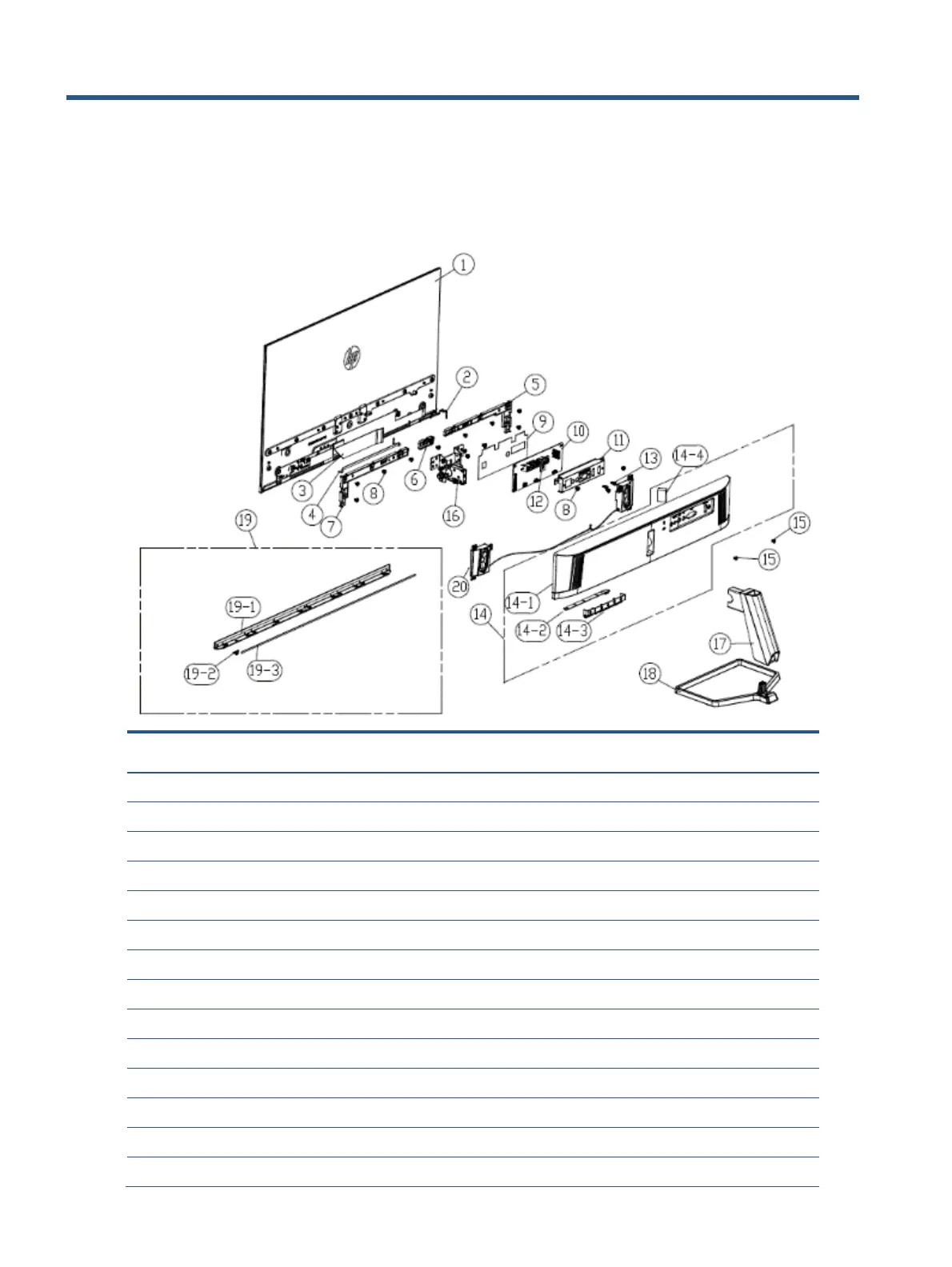

To identify the monitor major components, use this illustration and table.
 M24fwa
Item Description Qty
1
23.8 LCM for Encore III
1
2
WH A1007H00-6P-2L/A1251-H06 #28 95mm+ACETATE W/B HF
1
3
WH FFC 30P(1.0mm)180mm(1FOLD+PRO)60V G/F
W/CONN(A15+BC)+AL HF
1
4
WH FFC 8P(0.5mm)270mm(3FOLD)90V G/F (A8+A6) HF
1
5
REAR SUPPORT-L(PCR-85% ABS+5% PET/JACK BLACK (6009-
0337))(ENCORE 3-M24F)
1
6
REAR SUPPORT-M(PCR-85% ABS+5% PET/JACK BLACK
(6009-0337))(ENCORE 3-M24F)
1
7
REAR SUPPORT-R(PCR-85% ABS+5% PET/JACK BLACK
(6009-0337))(ENCORE 3-M24F)
1
8
MAC. SCREW-MI M3.0*4.0L, BLK-Ni
15
9
MYLAR BLACK(150*40*0.325t) (ENCORE 3-M24F LGD PANEL)
1
10
MAIN BD ASS'Y HP Encore III M24fwa (LM238WF2-HSAK1)
1
11
SHIELDING (SECC 0.5T)(1A2H-AUDIO)(ENCORE3)
1
12
MYLAR BLACK(16.5*15*0.325t) (ENCORE 3-SHIELDING
MIDDLE SCREW)
1
13
MAC. SCREW-MH #4-40*5.0L,Ni
2
14
REAR COVER(ABS 85% PCR +5% OBP/CERAMIC
WHITE)(ENCORE 3-M24FWA)ASS'Y
