HP M27fwa - Internal Component Connections

EL-MF877-00 Page 5
Template Revision C
Last revalidation date 19-March-2021
HPI instructions for this template are available at EL-MF877-01

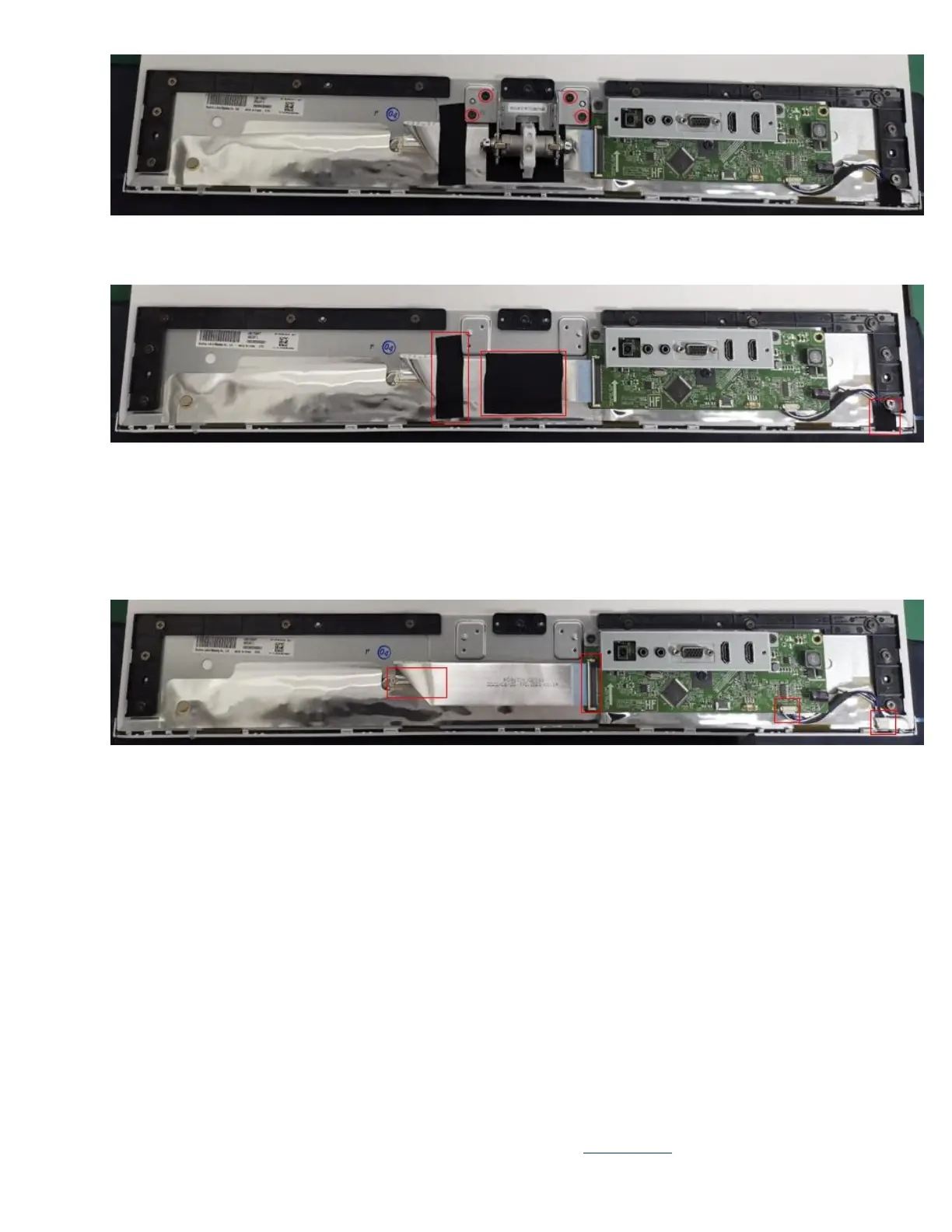

5. Remove the acetate tapes from the LVDS/ LED cable.
6. Pull out the LVDS/ LED cable to panel.
7. Strip fourteen screws from the rear cover supporter and M/B.
