HP Mini 110 User Manual

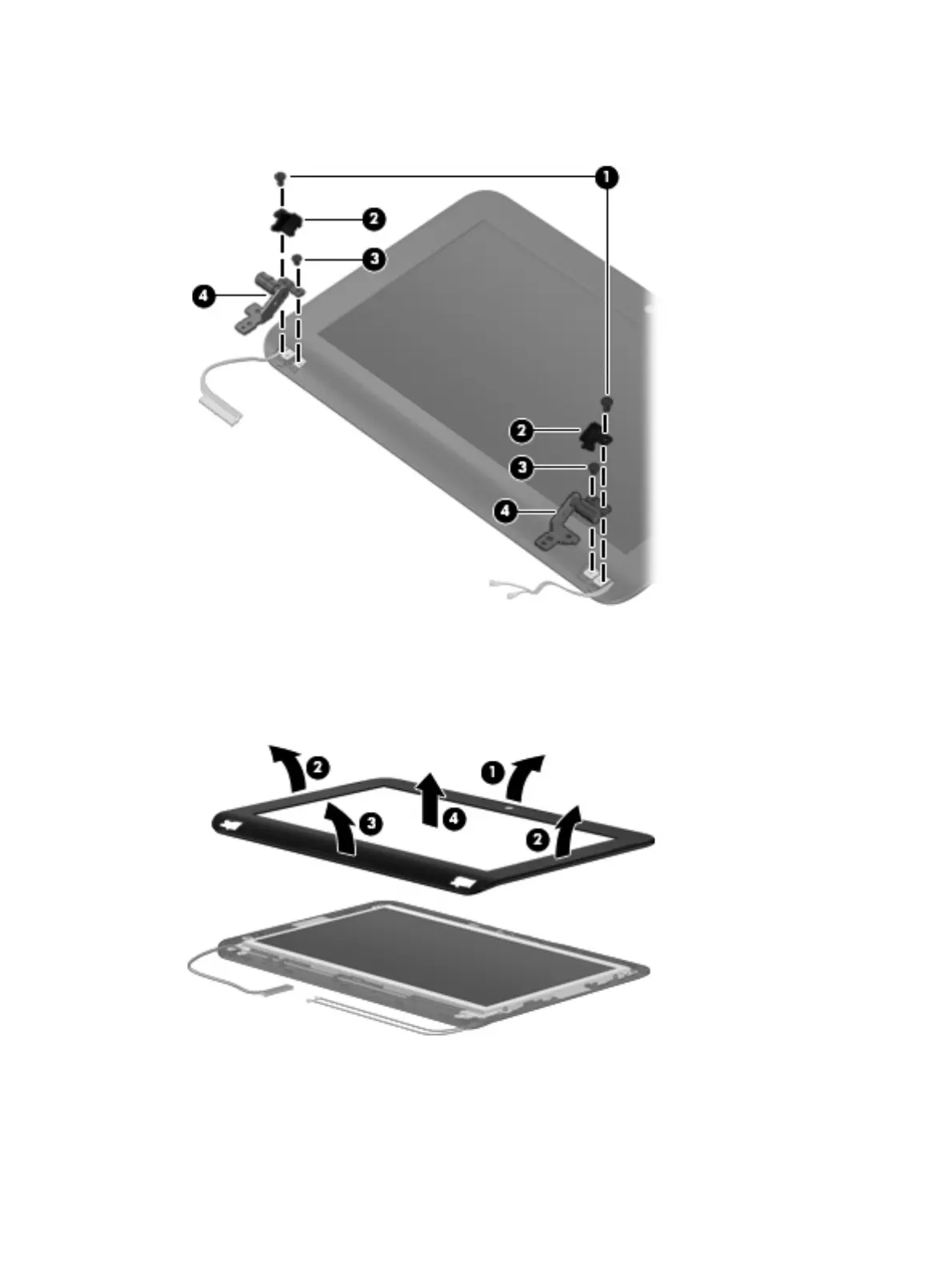

4. Remove the display hinges (4). The display hinges are available using spare part number
633482-001
5. If you need to remove the display bezel, loosen the top of the bezel (1), loosen the left and right
sides of the bezel (2), loosen the bottom of the bezel (3), and then lift the bezel from the display
(4). The display bezel is available using spare part number 633489-001 for Compaq-branded
models and 633493-001 for HP-branded models.
60 Chapter 4 Removal and replacement procedures
Download from Www.Somanuals.com. All Manuals Search And Download.

HP Mini 110 Specifications

General

Graphics	Intel GMA 950
Wireless	802.11b/g
RAM	1GB
Storage	160GB HDD
Display	10.1 inch
Resolution	1024 x 600
Weight	1.06 kg (2.34 lbs) with 3-cell battery
Ports	3 x USB 2.0, 1 x VGA, 1 x Headphone/Microphone combo
