Table 2 Port LEDs (continued)
MeaningStateStatus LEDs
One of the following conditions exist:Blinking
(green)
Link
• The mini-GBIC is not supported by the current software
• The mini-GBIC is not a genuine HP Mini-GBIC and is not supported
• The mini-GBIC is an “A” version in a controller that requires a “B” version or
later
Both the Link and Mode LED turn on solid for 2 seconds and then go to normal
operation. This indicates the mini-GBIC has been recognized by the controller.
On for 2
seconds
Link and Mode (green)
LED mode select button and indicator LEDs
The Port Mode LED shows Activity (Act LED on), Duplex (FDx LED on), or Speed (Spd LED on). Press
the LED Mode Select button to sequence through the three modes.

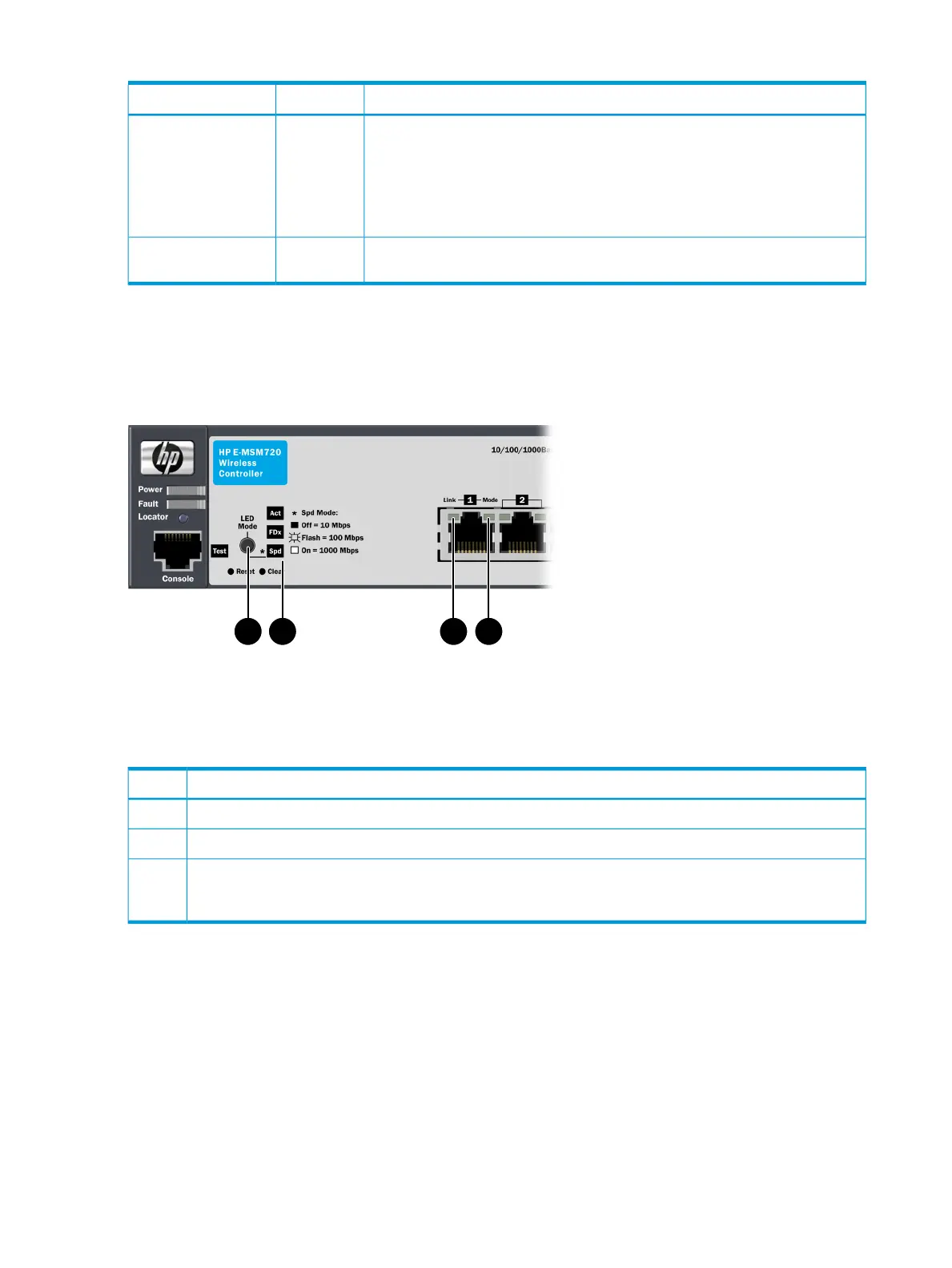

Figure 2 LED mode select button and LEDs
3. Port Link LED1. LED Mode Select button
4. Port Mode LED2. Mode Indicator LEDs (Act, FDx, Spd)
Table 3 Port LED mode indicator LEDs
MeaningMode
The Port Mode LED displays network activity.Act
The Port Mode LED is on when the port is in full-duplex mode.FDx
The Port Mode LED indicates port speed. If the Port Mode LED is off, the port is operating at 10 Mbps. if the
Port Mode LED is blinking, the port is operating at 100 Mbps. If the Port Mode LED is on continuously, the
port is operating at 1000 Mbps.
Spd
Resetting to factory defaults
To reset the controller to its factory default configuration:
1. Using a paperclip, press and release the Reset button.
2. Immediately press and hold the Clear button until the LEDs above the Clear button blink three
times, then release the Clear button.
Using the console port
The Console port is used to connect a console to the controller by using the supplied RJ-45 to DB9
cable. This is used for the CLI (Command Line Interface). See the MSM7xx Controllers CLI Reference
Guide.
6 Identifying controller physical features
