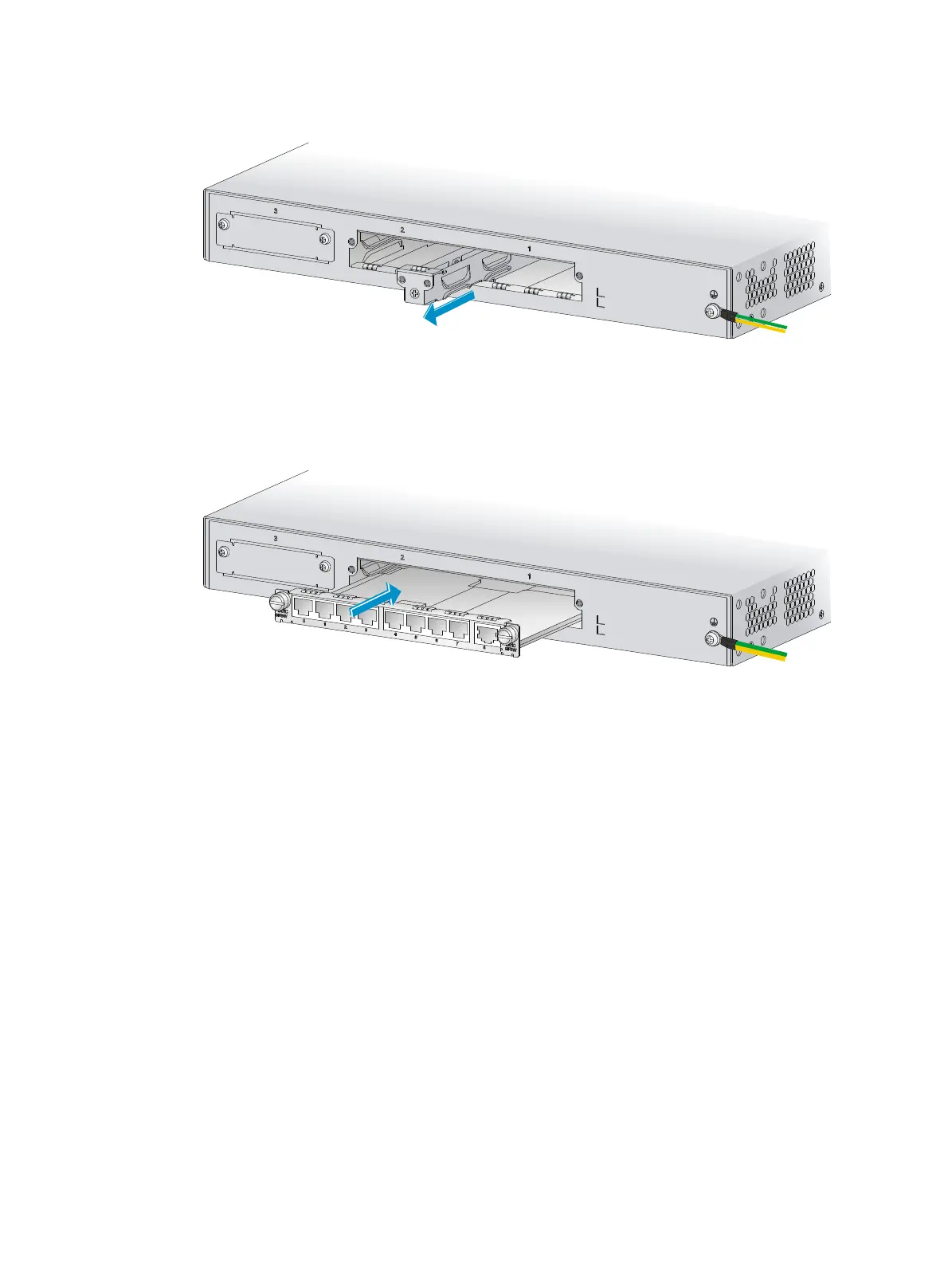

Figure 15 Removing the slot divider
3. Insert the DSIC into the slot and push it along the slide rails until it makes close contact with the
backplane of the router.
Figure 16 Installing a DSIC
4. Fasten the captive screws to secure the DSIC.
Connecting interface cables
Connect interface cables before powering on the router. This section describes how to connect Ethernet
cables. For other cable connection methods, see HP MSR Series Routers Interface Module User Guide.
To connect an Ethernet cable:
1. Plug one end of an Ethernet cable into the Ethernet port on the router.
2. Plug the other end of the cable into the Ethernet port of the peer device.
17
