HP MSR1003-8S

2. Connect the RJ-45 connector to the console port of the router.

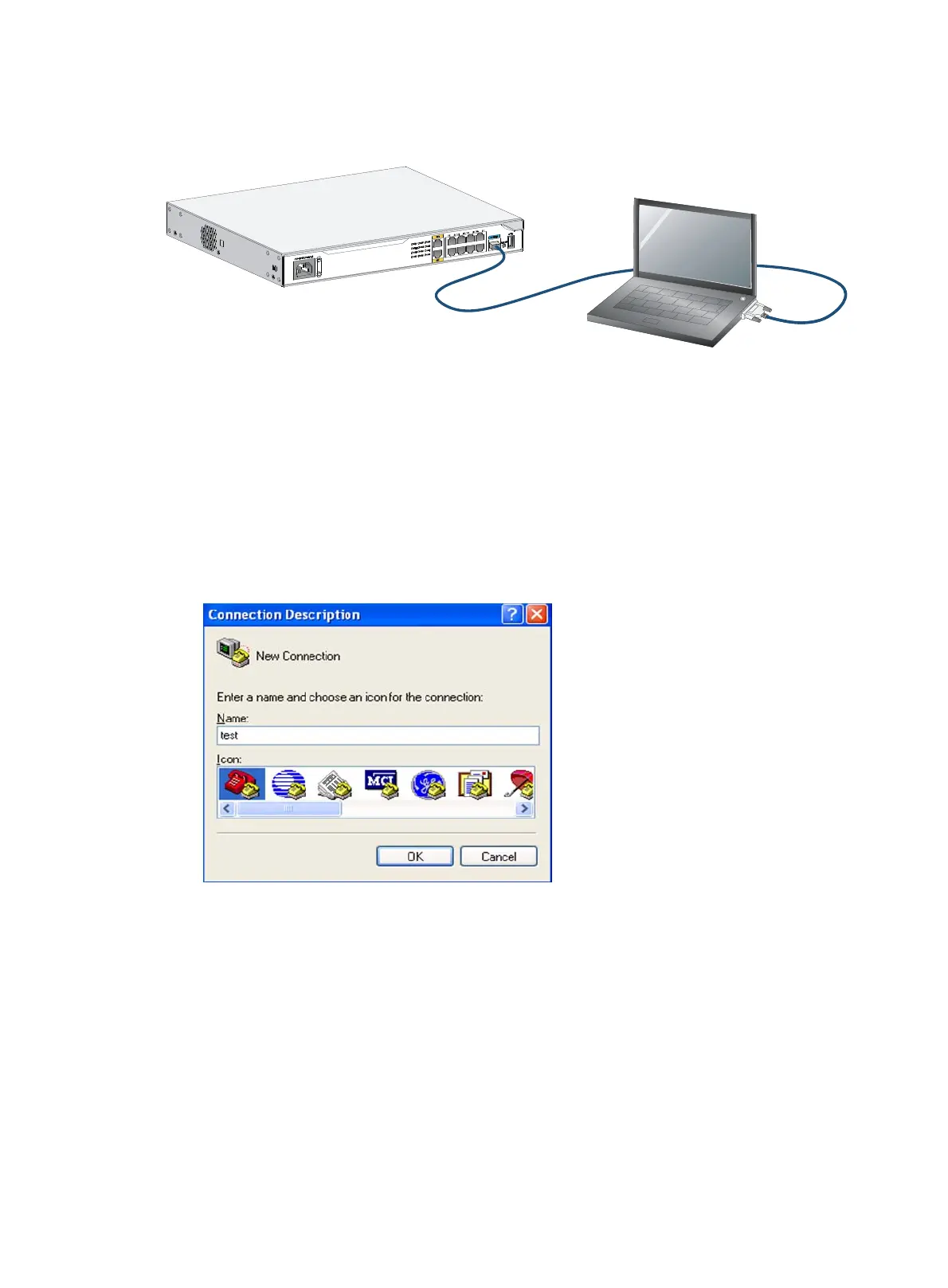

Figure 19 Connecting the console cable
Setting terminal parameters
This section uses a PC with Windows XP as an example.
To set terminal parameters:
1. Select Start > All Programs > Accessories > Communications > HyperTerminal.
The Connection Description dialog box appears.
Figure 20 Connection description
2. Select the serial port to be used from the Connect using list, and click OK.
19
