HP MSR1003-8S

27
To install filler panels, proceed to steps 3 and 4.
3. Gently push the slot divider into the DSIC slot along the slide rails and tighten the screws.
4. Install the filler panels and tighten the screws.

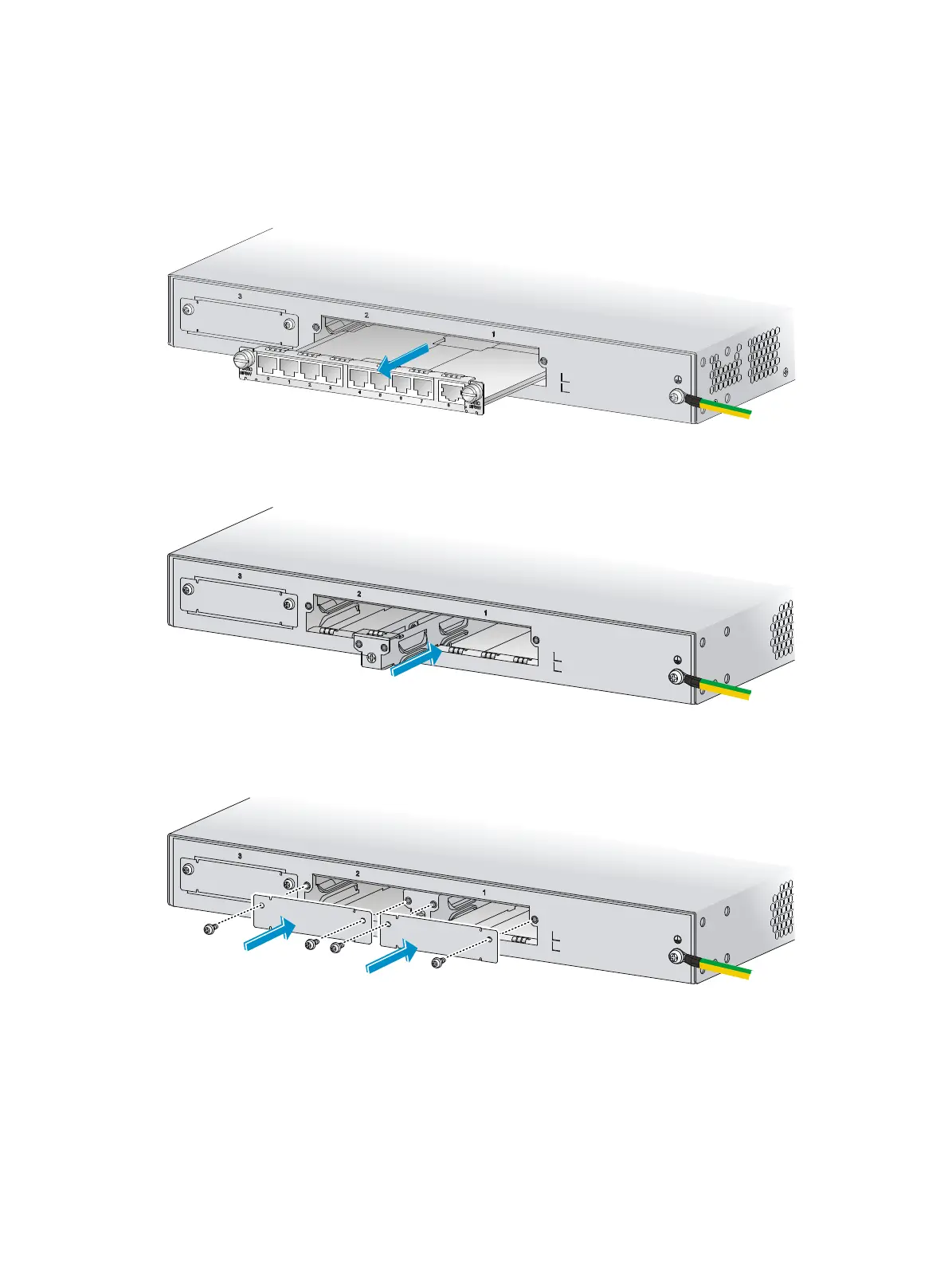

Figure 28 Removing a DSIC
Figure 29 Installing the slot divider
Figure 30 Installing filler panels
