HP OMEN Maintenance And Service Guide

Power connector cable
Description Spare part number
For use only on computer models equipped with the AMD R17M or Nvidia N17P GPUs 926204-001
For use only on computer models equipped with the Nvidia N17E GPU 938137-001
IMPORTANT: Make special note of each screw and screw lock size and location during removal
and replacement
Before removing the power connector cable, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 33), and then remove the following components:
a. Hinge covers (see Hinge covers on page 48).
b. System support brackets (see System support brackets on page 49).

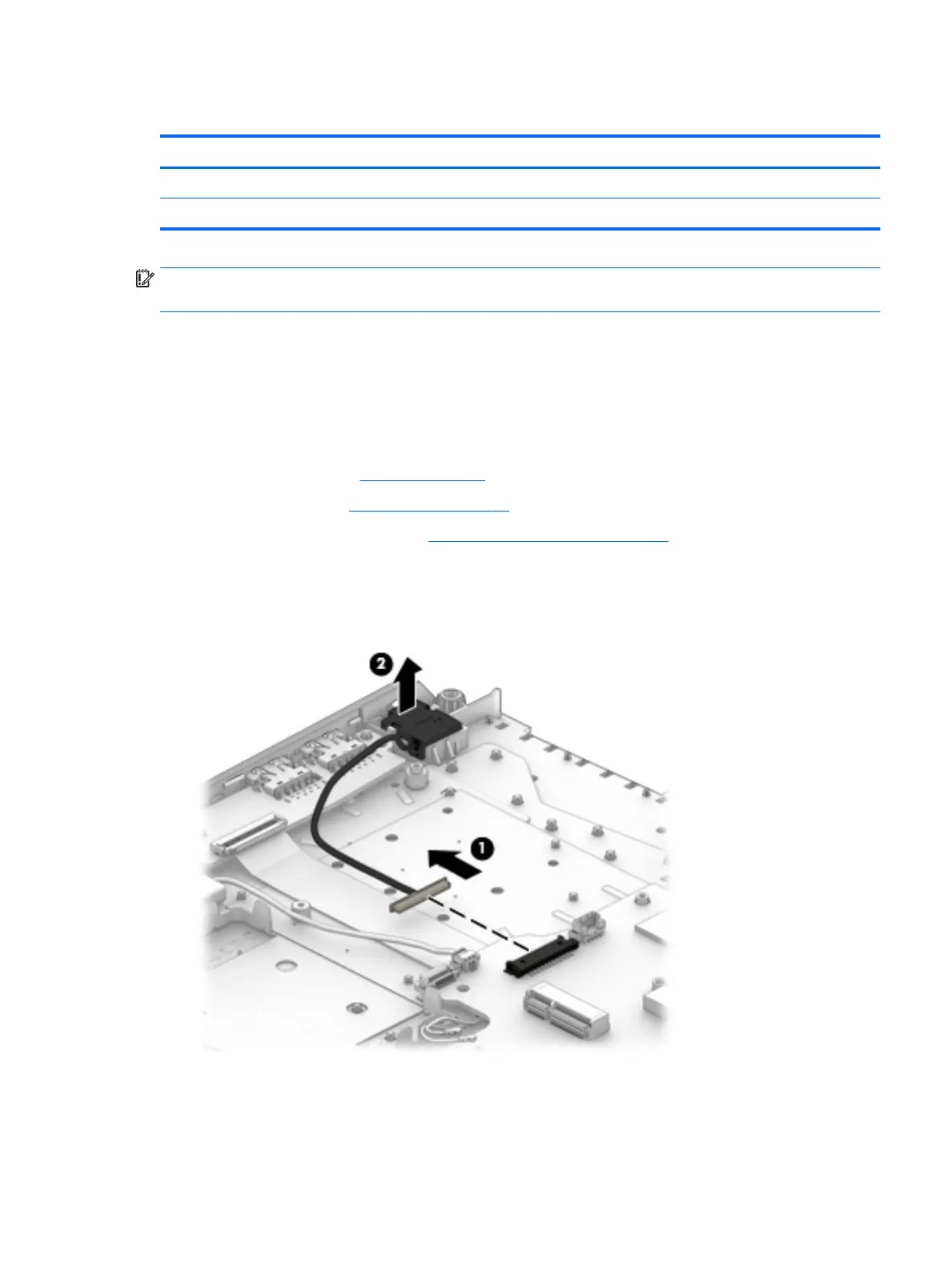

Remove the power connector cable:
1. Disconnect the power connector cable from the system board (1).
2. Remove the power connector cable (2).
Reverse this procedure to install the power connector cable.
Component replacement procedures 51

HP OMEN Specifications

General

3D	-
Panel type	TN
Pixel pitch	0.283 x 0.283 mm
Aspect ratio	16:9
Screen shape	Flat
Display diagonal	24.5 \
Display technology	LED
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Display brightness (typical)	400 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
On/off switch	Yes
Tilt angle range	-5 - 23 °
Certification	CE; ICES; VCCI; FCC; C-Tick; CB; TUV-GS; ISO-9241-307; cTUVus; TUV LBL; CCC; CEL; BSMI; KCC; Australia MEPS; E-standby; PSB; ISC; Microsoft WHQL Certification (Windows 10, Windows 8.1 and Windows 7); SmartWay Transport Partnership - NA only
Product color	Black
Country of origin	China
Market positioning	Gaming
USB hub version	3.2 Gen 1 (3.1 Gen 1)
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	3
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (max)	40 W
Power consumption (standby)	0.5 W
Power consumption (typical)	30 W
HP segment	Home
Cables included	AC, HDMI, DisplayPort, USB

Weight and Dimensions

Depth (with stand)	227.5 mm
Height (with stand)	407.9 mm
Weight (with stand)	4600 g
Depth (without stand)	62.8 mm
Width (without stand)	569 mm
Height (without stand)	346.2 mm
Weight (without stand)	3550 g
