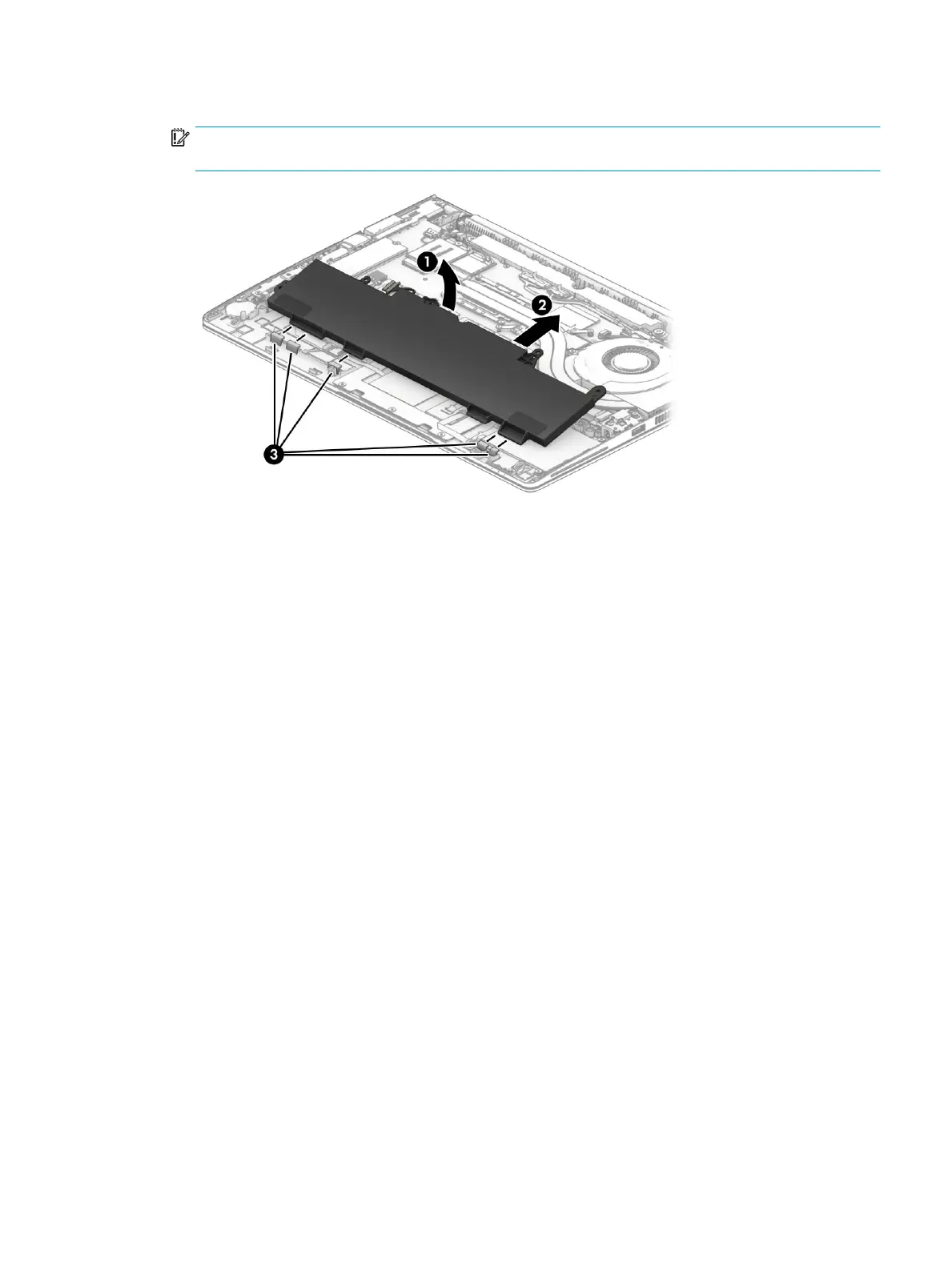

3.
Rota
te the top o
f the battery upwar
d
(1)
, and then lift the battery out of the c
omputer
(2)
.
IMPORT
ANT
:
When installing the b
attery, insert the tabs on the bottom of batt
ery into the clips buil
t
into the c
omputer
(3)
, and then r
otate the ba
ttery into place
Rev
erse the removal pr
ocedur
es to instal
l the battery
.
Component r
eplacement pr
ocedure
s
47
56
58
Table of Contents
Table of Contents
7
Product Description
11
Components
17
Right
17
Left
19
Display
20
Keyboard Area
21
Touchpad
21
Lights
22
Buttons, Speakers, and Fingerprint Reader
23
Special Keys
25
Hot Keys (Select Products Only)
26
Bottom
26
Front
27
Labels
28
Illustrated Parts Catalog
30
Computer Major Components
30
Display Assembly Subcomponents
33
Plastics Kit
34
Cable Kit
35
Miscellaneous Parts
36
Removal and Replacement Procedures Preliminary Requirements
39
Tools Required
39
Service Considerations
39
Plastic Parts
39
Cables and Connectors
39
Drive Handling
40
Workstation Guidelines
40
Electrostatic Discharge Information
40
Generating Static Electricity
41
Preventing Electrostatic Damage to Equipment
41
Personal Grounding Methods and Equipment
42
Grounding the Work Area
42
Recommended Materials and Equipment
42
Packaging and Transporting Guidelines
43
Removal and Replacement Procedures for Customer Self-Repair Parts
44
Component Replacement Procedures
44
Preparation for Disassembly
44
Bottom Cover
44
Solid-State Drive (SSD)
46
Memory Modules
47
Wlan/Bluetooth Combo Card
48
WWAN Module
50
Keyboard
52
Removal and Replacement Procedures for Authorized Service Provider Parts
55
Component Replacement Procedures
55
Battery
56
Heat Sink Assembly
58
RTC Battery
61
USB Board
62
RJ-45 Board with Bracket
63
Power Button Board
64
Speaker Assembly
65
Touchpad
66
Touchpad Button Board
68
Prepare the Computer for Disassembly (Preparation for Disassembly
68
Remove the Bottom Cover
68
NFC Module
69
Smart Card Reader
70
Fan
71
System Board
73
Remove the RJ-45 Board and Bracket
73
Fingerprint Reader Assembly
76
Prepare the Computer for Disassembly (Preparation for Disassembly
76
Display Assembly
77
Remove the Bottom Cover
77
Disconnect the Battery Cable from the System Board (See Battery
77
Top Cover
87
Interpreting System Validation Diagnostic Front Panel Leds and Audible Codes
88
Computer Setup (BIOS), TPM, and HP Sure Start
90
Using Computer Setup
90
Starting Computer Setup
90
Navigating and Selecting in Computer Setup
90
Restoring Factory Settings in Computer Setup
90
Updating the BIOS
91
Determining the BIOS Version
91
Downloading a BIOS Update
91
Changing the Boot Order Using the F9 Prompt
92
TPM BIOS Settings (Select Products Only)
92
Using HP Sure Start (Select Products Only)
93
Using HP PC Hardware Diagnostics
94
Using HP PC Hardware Diagnostics Windows (Select Products Only)
94
Downloading HP PC Hardware Diagnostics Windows
94
Downloading the Latest HP PC Hardware Diagnostics Windows Version
95
Downloading HP Hardware Diagnostics Windows by Product Name or Number (Select Products Only)
95
Installing HP PC Hardware Diagnostics Windows
95
Using HP PC Hardware Diagnostics UEFI
95
Starting HP PC Hardware Diagnostics UEFI
96
Downloading HP PC Hardware Diagnostics UEFI to a USB Flash Drive
96
Downloading the Latest HP PC Hardware Diagnostics UEFI Version
96
Downloading HP PC Hardware Diagnostics UEFI by Product Name or Number (Select Products Only)
96
Using Remote HP PC Hardware Diagnostics UEFI Settings (Select Products Only)
97
Downloading Remote HP PC Hardware Diagnostics UEFI
97
Downloading the Latest Remote HP PC Hardware Diagnostics UEFI Version
97
Downloading Remote HP PC Hardware Diagnostics UEFI by Product Name or Number
97
Customizing Remote HP PC Hardware Diagnostics UEFI Settings
97
10 Backing Up, Restoring, and Recovering
99
Backing up Information and Creating Recovery Media
99
Using Windows Tools
99
Using the HP Cloud Recovery Download Tool to Create Recovery Media (Select Products Only)
99
Restoring and Recovery
100
Restoring, Resetting, and Refreshing Using Windows Tools
100
Recovering Using HP Recovery Media
100
Changing the Computer Boot Order
100
Using HP Sure Recover (Select Products Only)
101
11 Specifications
102
Computer Specifications
102
35.6 CM (14.0 In) Display Specifications
103
M.2 Pcie Solid-State Drive Specifications
104
M.2 SATA Solid-State Drive Specifications
105
12 Power Cord Set Requirements
106
Requirements for All Countries
106
Requirements for Specific Countries and Regions
107
13 Statement of Memory Volatility
109
Nonvolatile Memory Usage
111
Questions and Answers
113
Using HP Sure Start (Select Models Only)
114
14 Recycling
115
Index
116
Other manuals for HP P EliteBook 745 G6
