Touchpad
Table 6-8 Touchpad descriptions and part numbers
Description Spare part number
Touchpad for use in models without an NFC module L62731-001
Touchpad for use in models with an NFC module L62732-001
Before removing the touchpad, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 34).
2. Remove the bottom cover (see Bottom cover on page 34).
3. Remove the battery (see Battery on page 46).

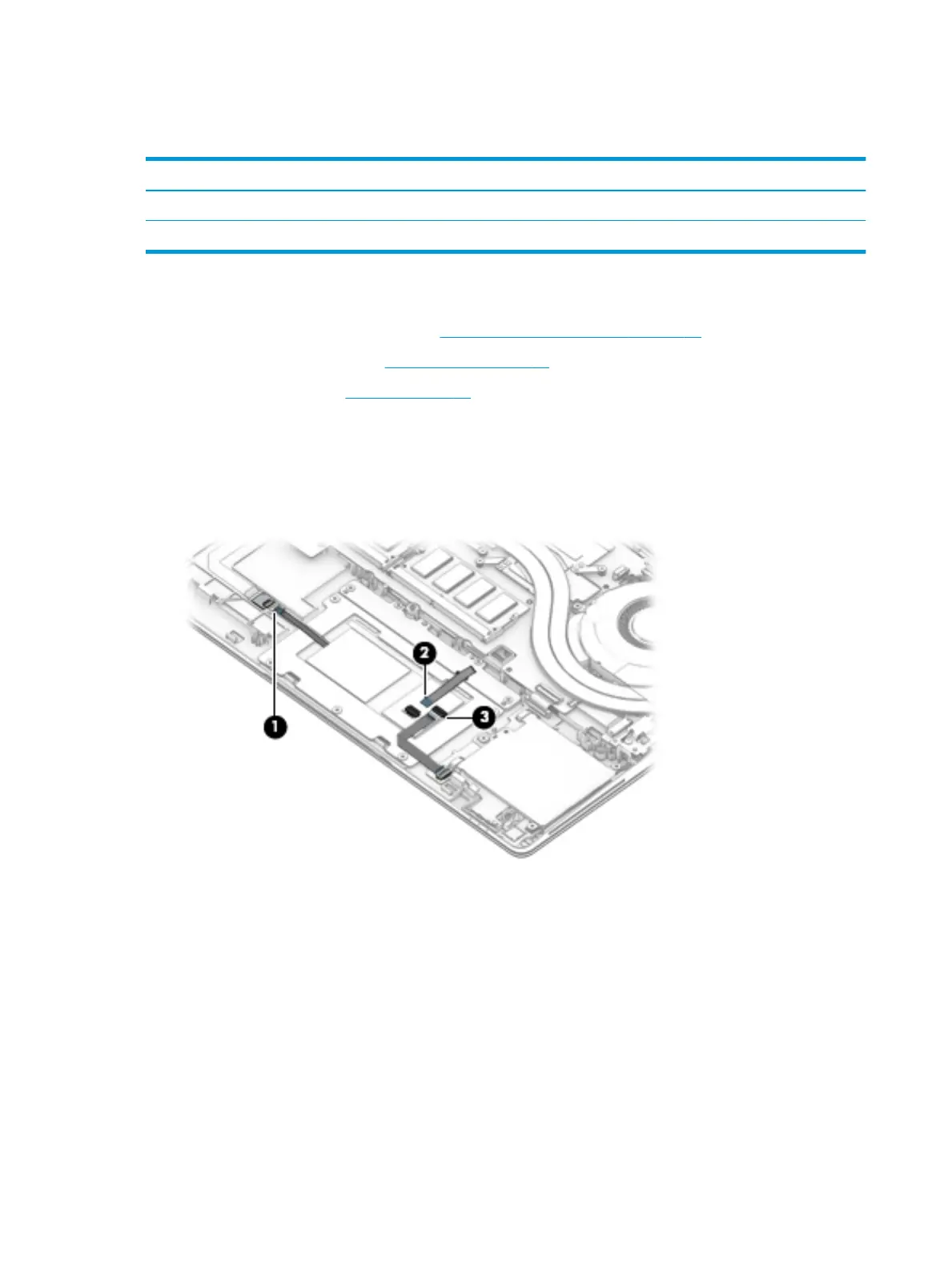

Remove the touchpad:
1. Disconnect the NFC module cable from the ZIF connector on the NFC module (1).
2. Disconnect the touchpad button board cable from the ZIF connector on the touchpad (2).
3. Disconnect the card reader cable from the ZIF connector on the touchpad (3).
4. Remove the ve Phillips M2.0 × 2.5 screws (1) that secure the touchpad to the computer.
