Fingerprint reader assembly
Table 6-14 Fingerprint reader and bracket descriptions and part numbers
Description Spare part number
Fingerprint reader assembly (includes cable) L62741-001
Fingerprint reader bracket (included in Bracket Kit) L62737-001
Before removing the ngerprint reader assembly, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 34).
2. Remove the bottom cover (see Bottom cover on page 34).
3. Remove the battery (see Battery on page 46).
4. Remove the system board (see System board on page 63).

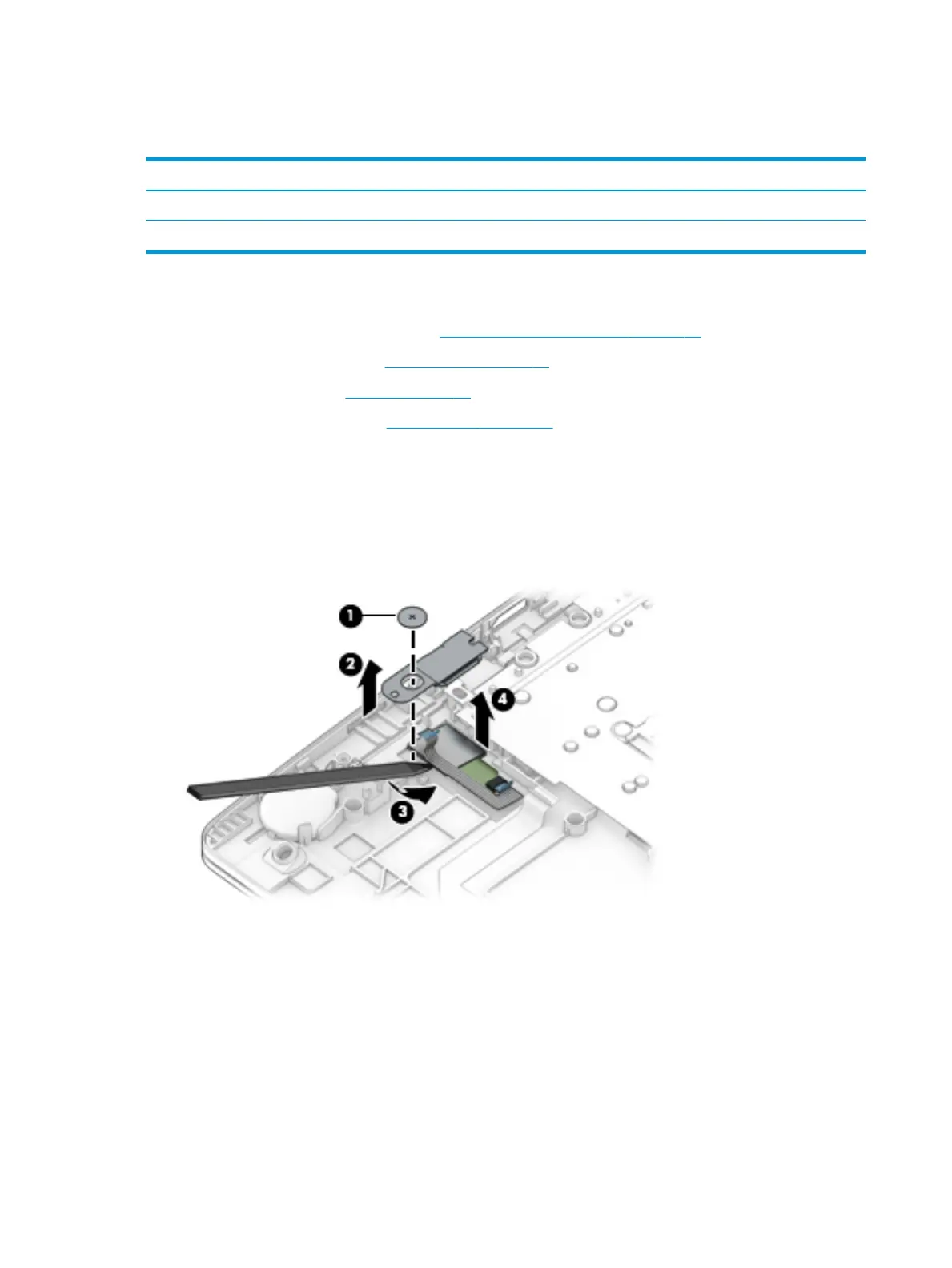

Remove the ngerprint reader assembly:
1. Remove the Phillips M2.0 × 3.0 screw (1) that secures the ngerprint reader bracket to the computer.
2. Lift the bracket from the ngerprint reader assembly (2).
3. Use a tool to pry the ngerprint reader board free from the computer (3), and then remove the assembly
from the computer (4).
Reverse this procedure to install the ngerprint reader assembly.
66 Chapter 6 Removal and replacement procedures for authorized service provider parts
