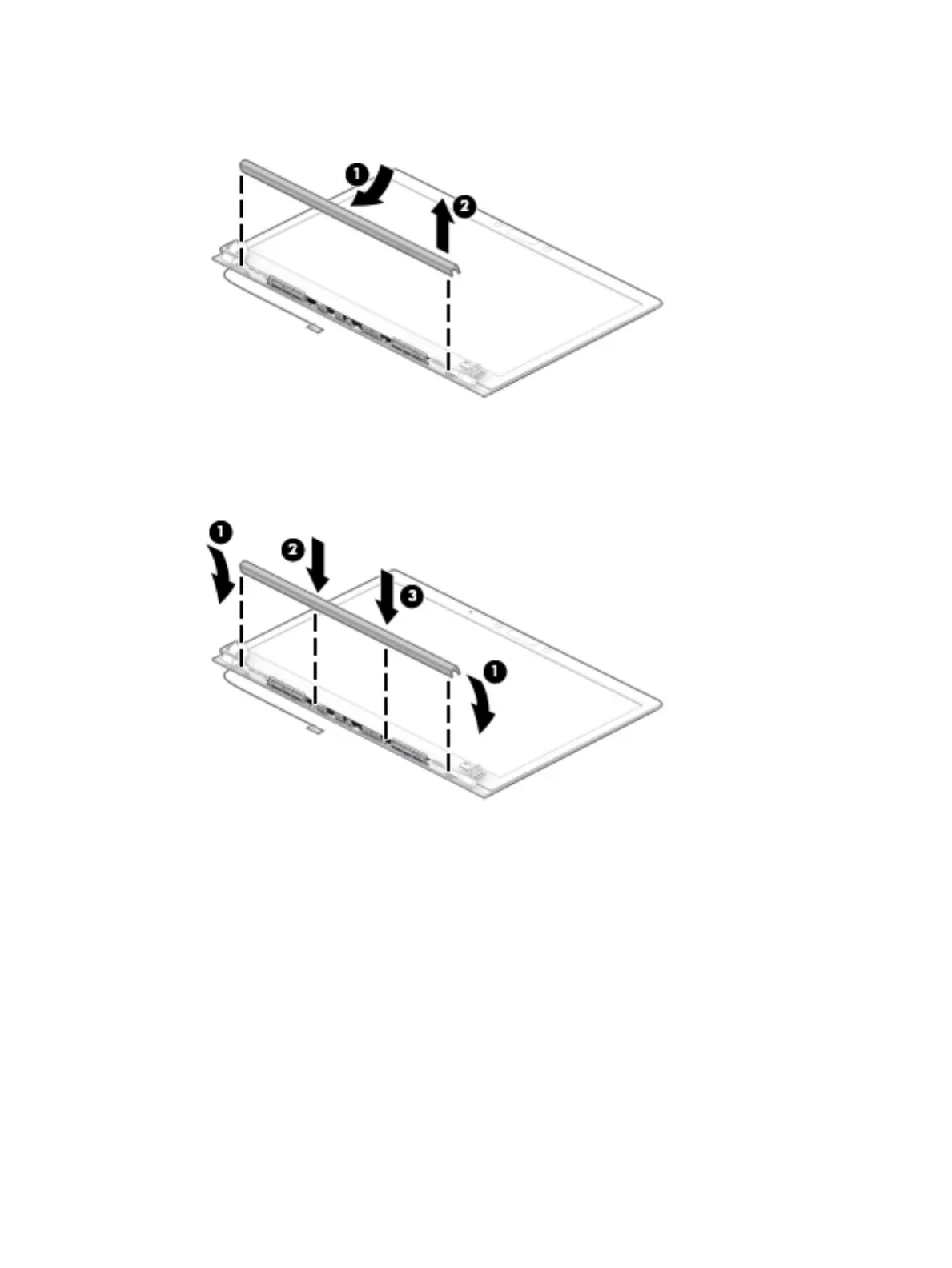

8. To remove the display hinge cover, rotate top of hinge cover away from display enclosure to release the
tabs (1), and then pull the cover o the enclosure (2).
The display hinge cover is available in the Hinge Kit as spare part number L14376-001.
When installing the hinge cover, make sure all cables are routed correctly under the hinge cover and the
hooks on the end of the cover are aligned correctly with the snaps on the bottom of the display (1).
Press the left (2) and then right (3) middle sections of the hinge cover until it snaps into place.
9. To remove the display bezel, ex the top (1) of the bezel, the inside edges of the left and right sides (2),
and then the bottom (3) of the bezel until it releases from the display enclosure.
Component replacement procedures 69
