The HD camera module is available as spare part number L62742-001. The microphone module is
available as spare part number L62744-001.
b. IR camera

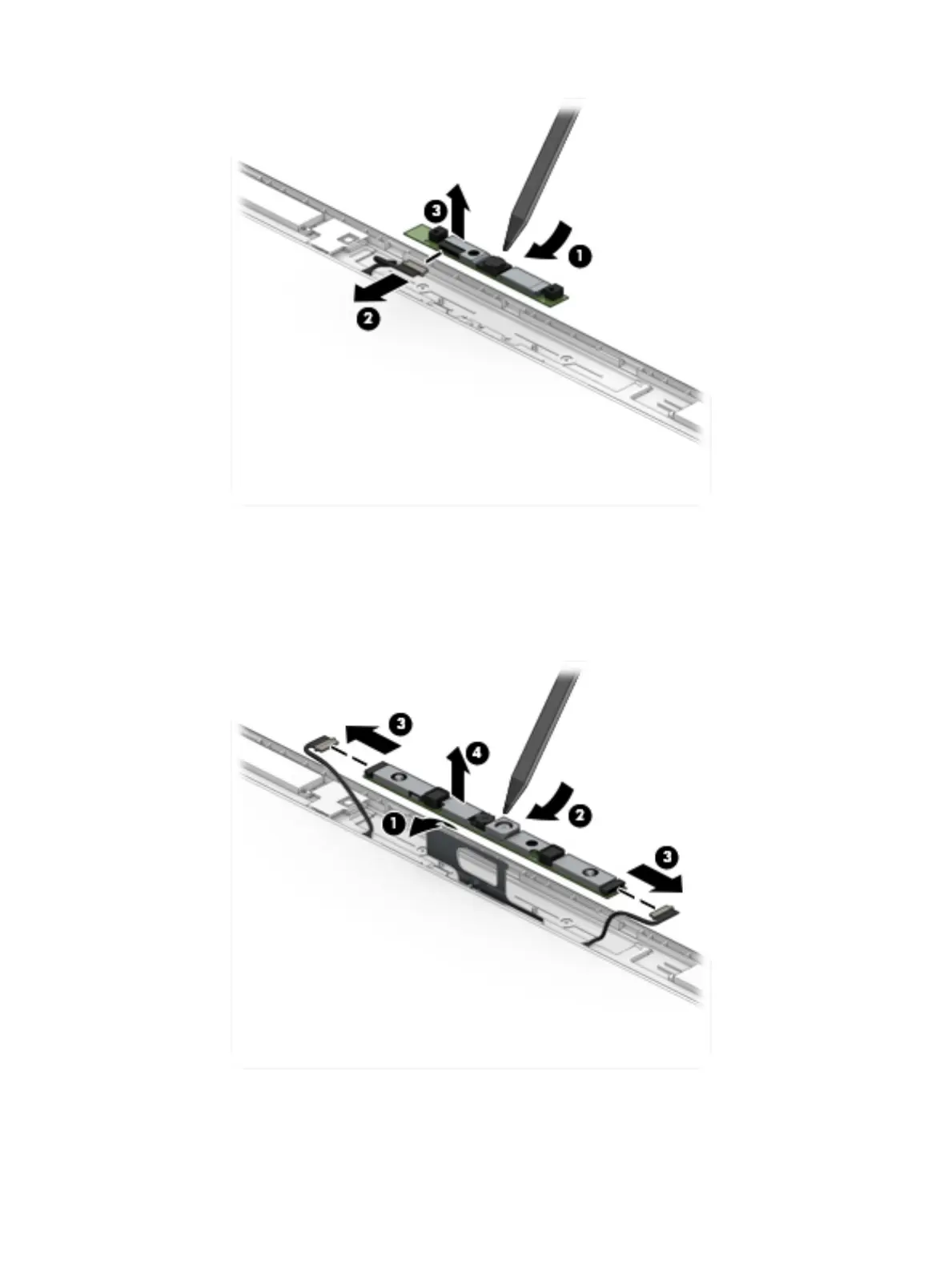

Remove the tape from the module (1), lift upward to release the module from the adhesive on the
display enclosure (2), disconnect the cables from the left and right sides of the module (3), and
then remove the camera module from the display (4).
The IR camera module is available as spare part number L64702-001.
Component replacement procedures 71
