HP PAVILION 1100 - Figure 1-3. Bottom View

Service Manual Product Information 1-5

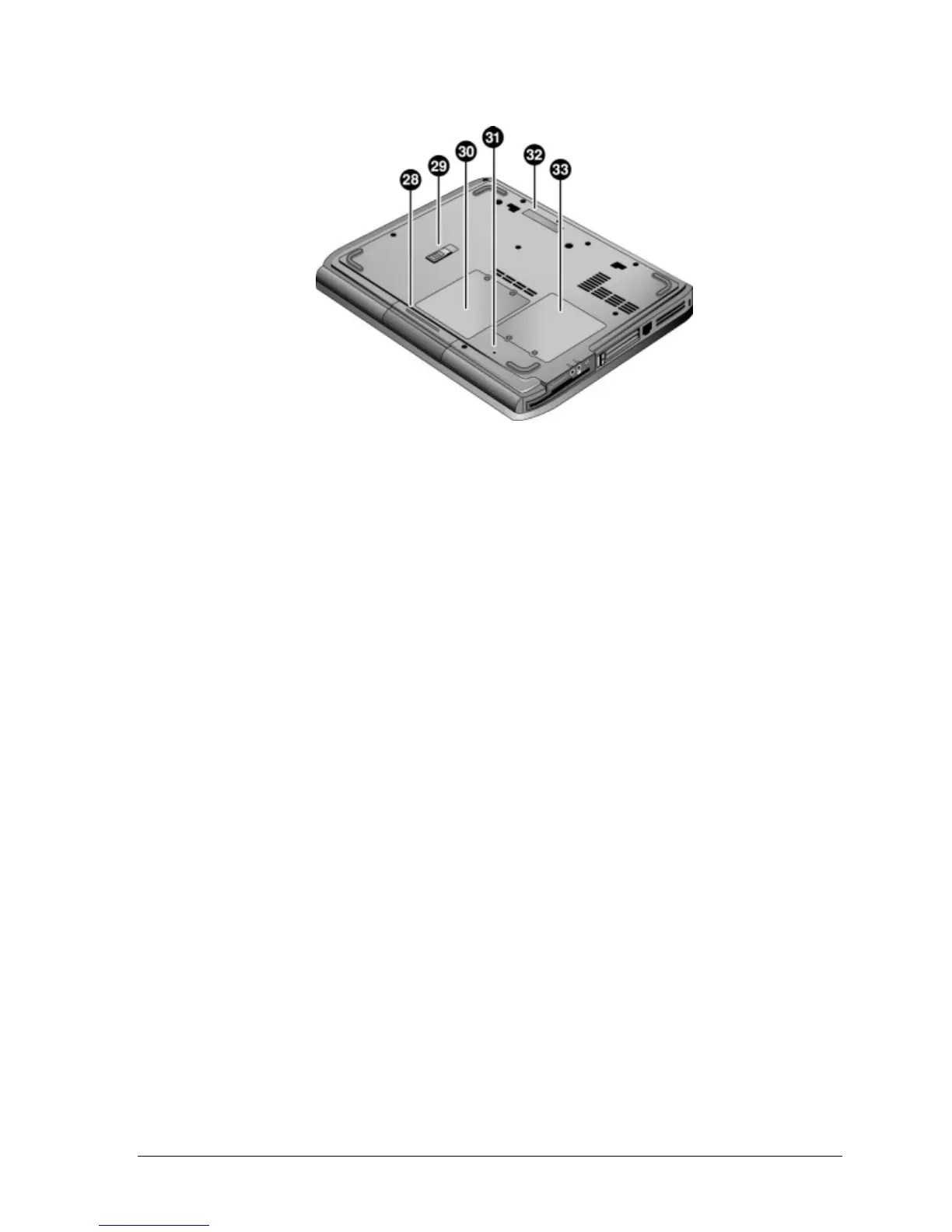

Figure 1-3. Bottom View
28. Hard disk drive.
29. Battery latch.
30. SDRAM door.
31. Reset button.
32. Port replicator connect.*
33. Mini-PCI door (no user parts inside).
* on certain models
