2-12 Removal and Replacement Service Manual
Removing the Speaker Assembly
(User-Replaceable)
Note:
The following speaker assembly removal procedures apply only to Compaq Evo
Notebook N1010v and Compaq Presario 1100 Series notebooks. The Pavilion ze4100 Series
notebook speakers are integrated into the top case. Refer to the “Removing the Top Case” section
later in this chapter for procedures on removing the top case and speakers on the Pavilion ze4100
Series notebook.
Required Equipment
•
#1 Phillips screwdriver.
Removal Procedure
1. Unplug the AC adapter, if present, and then remove the battery.
2. Remove the keyboard cover (page 2-10).
3. Remove the screw that secures the speaker assembly to the top case.
4. Disconnect the 4-wire cable from the switchboard PCA.

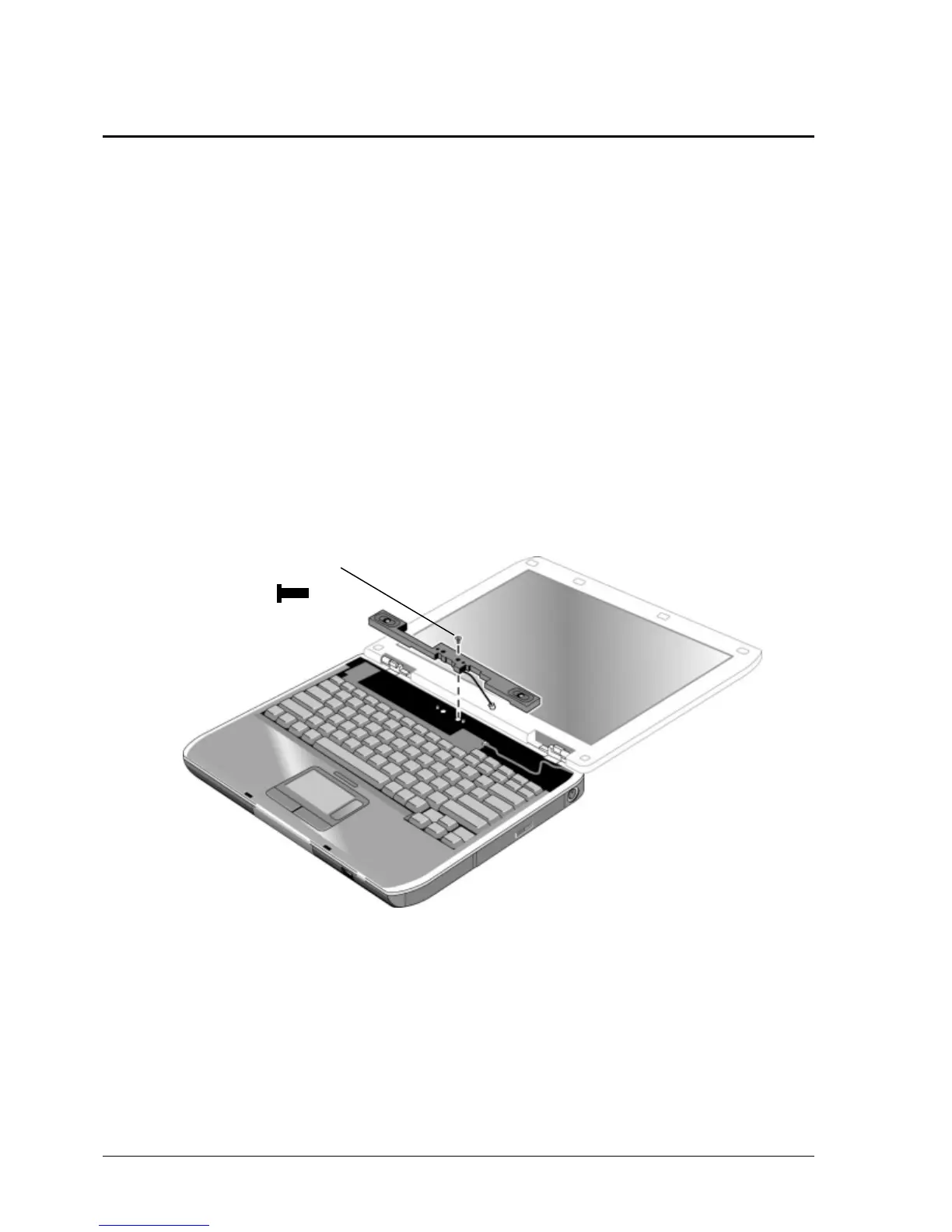

Figure 2-8. Removing the Speaker Assembly
Screw,
M2.5×6mm
