HP PAVILION 1100 - Figure 2-16. Removing the Heatsink (with Fan); Removing the Heatsink (with Fan) (Authorized Service Providers Only)

Service Manual Removal and Replacement 2-27
Removing the Heatsink (with Fan)
(Authorized Service Providers Only)
Required Equipment
•
#0 Phillips screwdriver.
Removal Procedure
1. Unplug the AC adapter, if present, and remove the battery.
2. Remove these additional assemblies:
•
Hard disk drive (page 2-6).
•
Keyboard cover (page 2-10).
•
Switchboard PCA (page 2-13).
•
Keyboard (page 2-13).
•
Display assembly (page 2-17).
•
Top case (page 2-20).
3. Remove all three retaining screws.
4. Lift up on the heatsink (with fan) and then disconnect the fan cable from the motherboard.

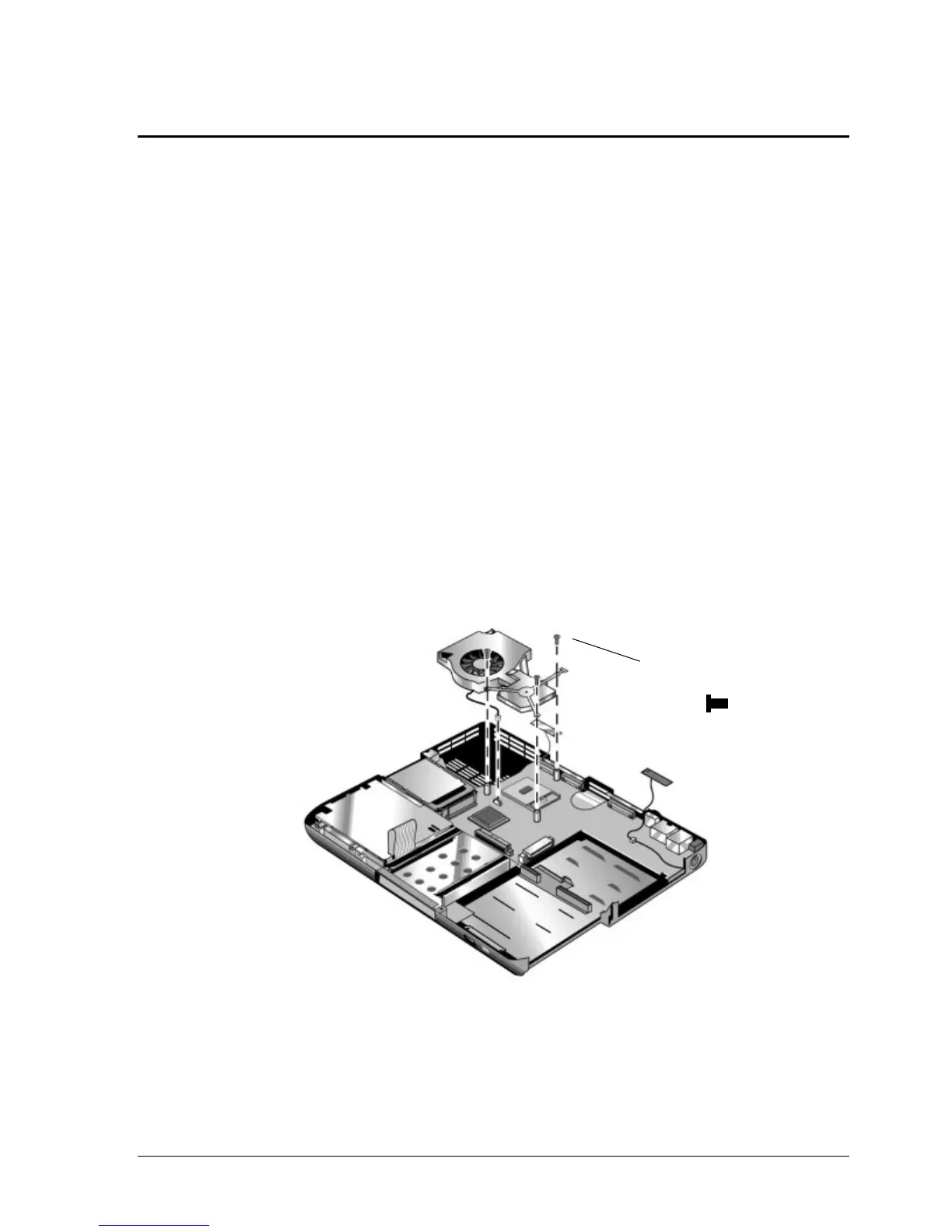

Figure 2-16. Removing the Heatsink (with Fan)
Screw, M2.5×4mm (3)
