2-16 Removal and Replacement Service Manual
Removing the CD/DVD Drive
(User-Replaceable)
Required Equipment
•
#1 Phillips screwdriver.
Removal Procedure
1.
Unplug the AC adapter, if present, and remove the battery.
2.
Remove these additional assemblies:
•
Keyboard cover (page 2-10).
•
Keyboard (page 2-13).
3.
Remove the screws that secure the CD/DVD drive to the top case and motherboard.
4.
Place your index finger in the top case opening and push out on the CD/DVD drive to release it
from the motherboard.
5.
Remove the CD/DVD drive.

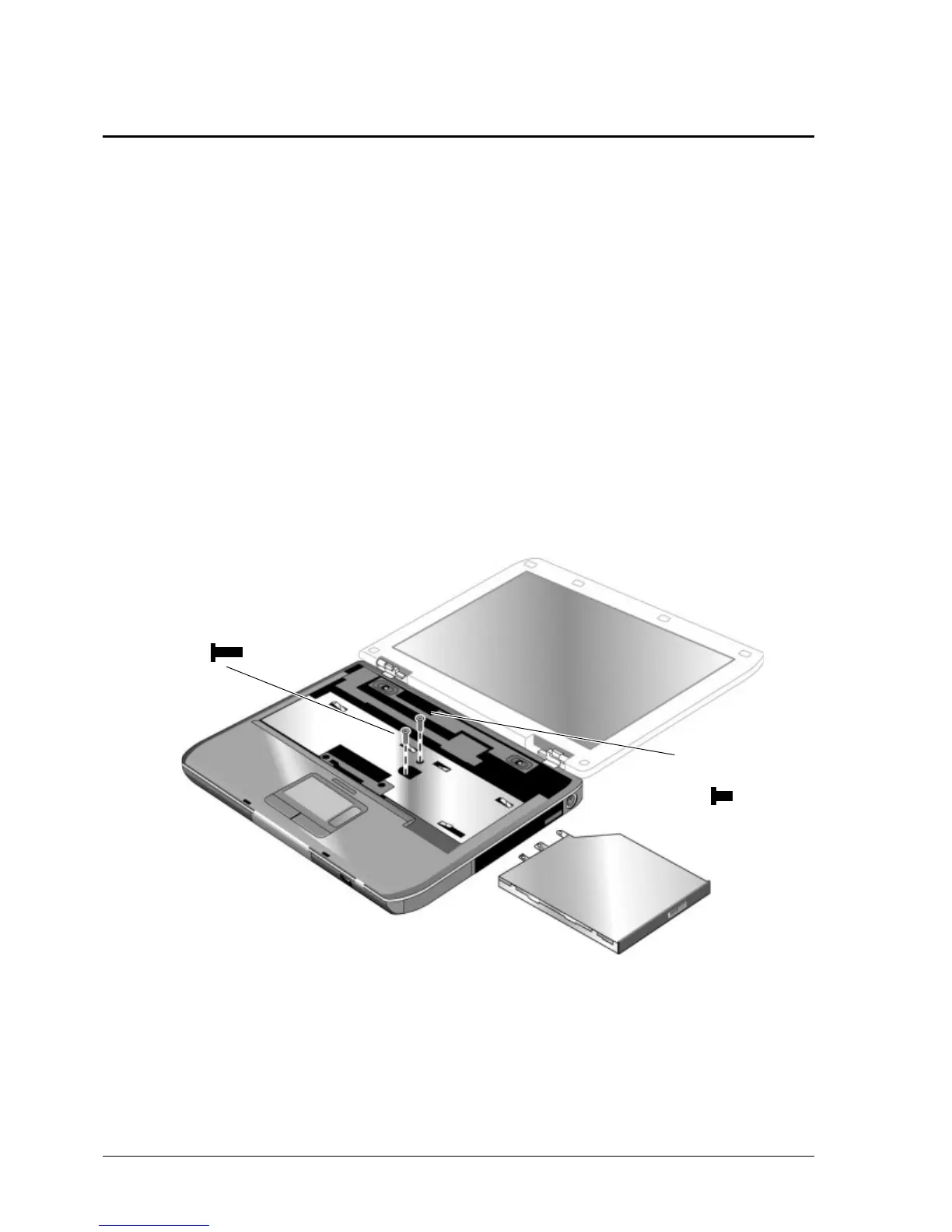

Figure 2-11. Removing the CD/DVD Drive
Screw,
M2.5×4mm
Screw,
M2.5×6mm
To Next Page
