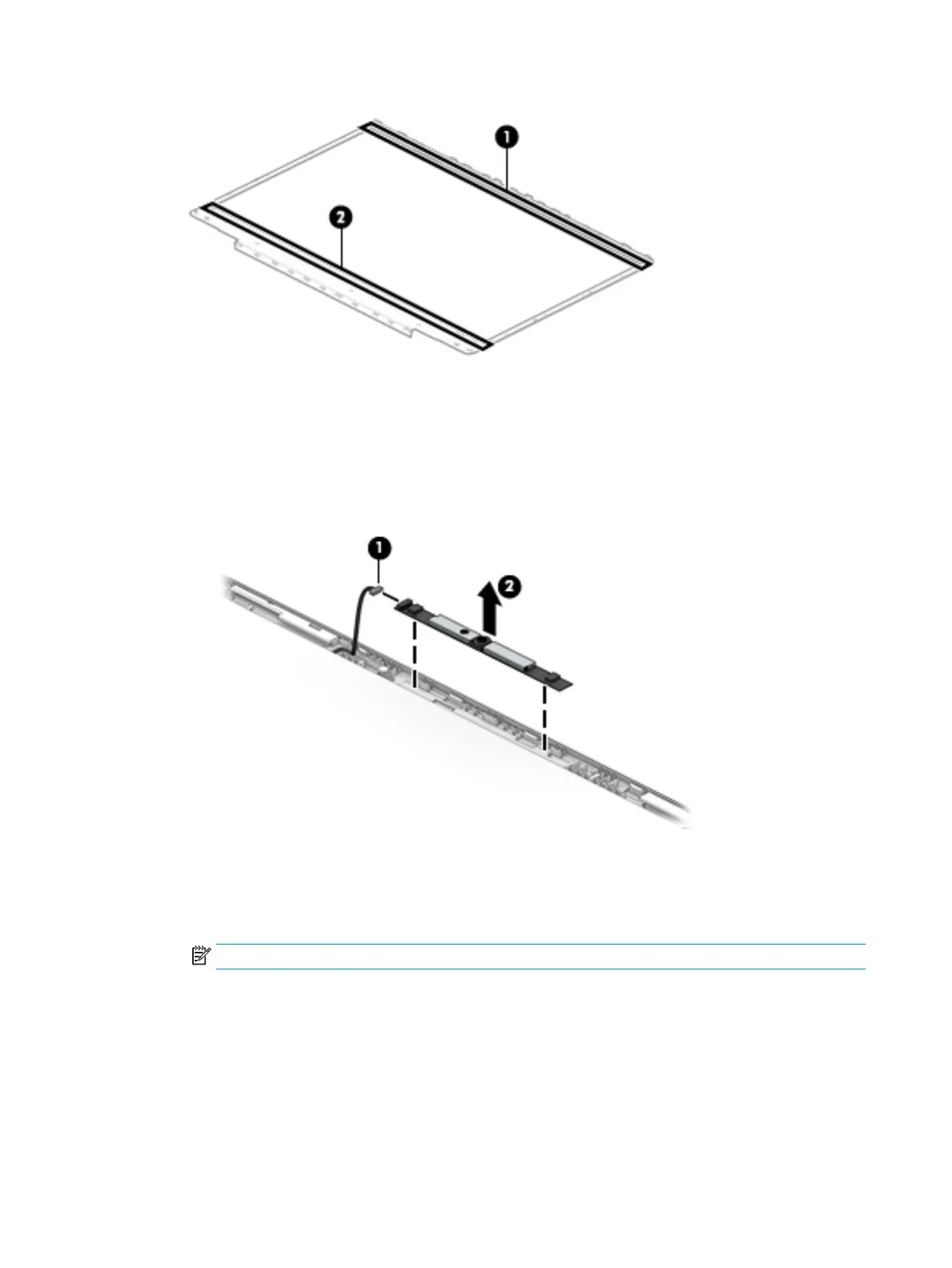

9. If it is necessary to replace the camera/microphone module:
a. Disconnect the cable (1) from the camera/microphone module.
b. Detach the camera/microphone module (2) from the display enclosure. (The module is attached
with double-sided adhesive.)
The camera/microphone module is available using spare part number L37362-001.
10. If it is necessary to replace the display panel:
a. The panel is secured to the display enclosure with long strips of adhesive tape located on each side
of the panel. Use a tweezer to grasp the tape just above each hinge, and then steadily pull the tape
out from behind the panel.
NOTE: You have to pull on the tape multiple times before it is completely removed.
Display adhesive tape is available using spare part number L38078-001.
48 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
