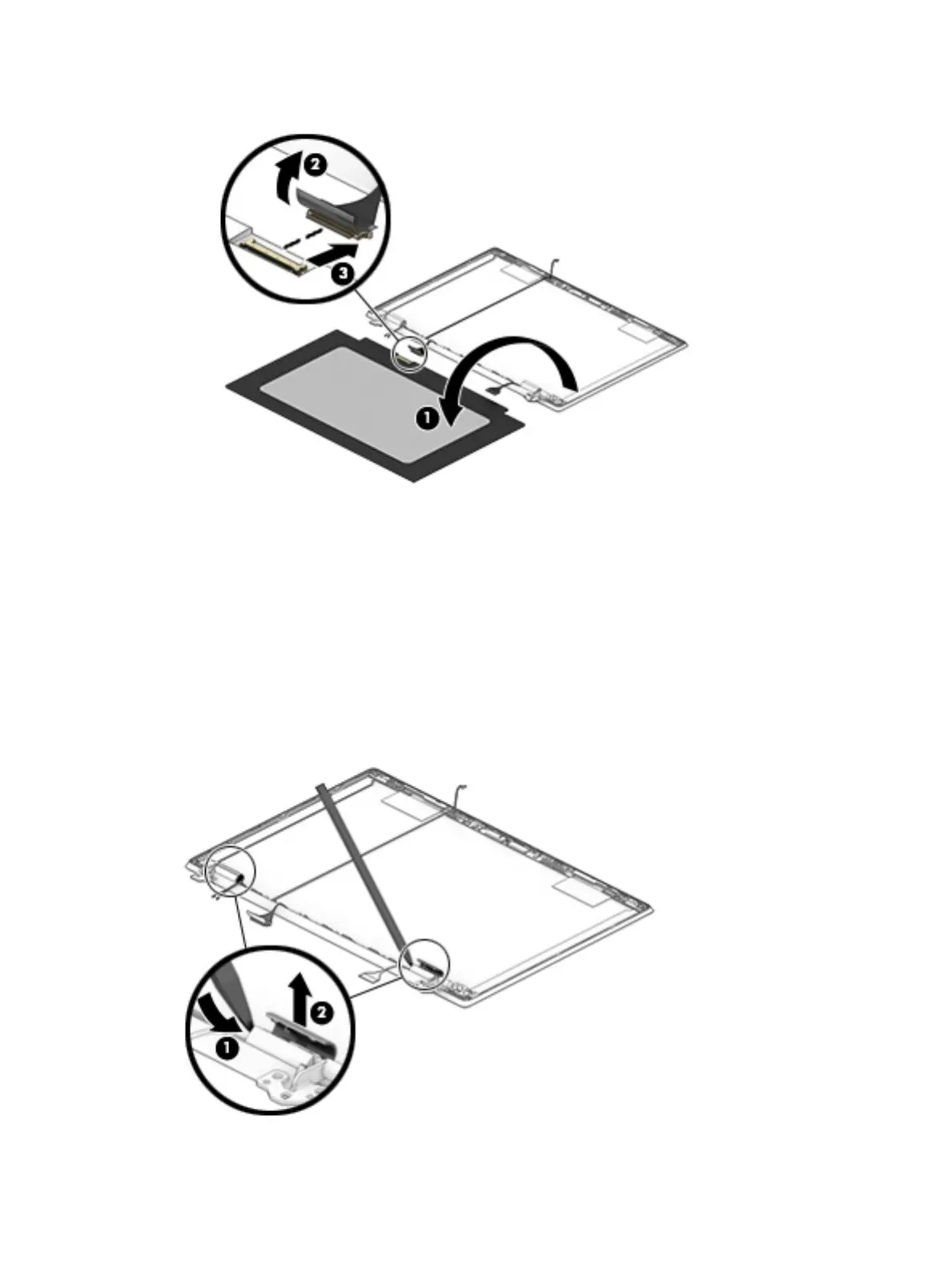

d. Disconnect the display panel cable (3) from the display panel.
e. Remove the display panel.
The display panel is available using the following spare part numbers:
●
L37352-001 – FHD, UWVA, slim, 220 nits
●
L37353-001 – FHD, UWVA, uslim, 300 nits
●
L37354-001 – HD, SVA, 220 nits
11. If it is necessary to replace the hinge covers, use a tool (1) to lift up the side of the hinge cover to remove
it (2).
Hinge covers are available using spare part number L37383-001 for mineral silver models and
L37384-001 for pike silver models.
50 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
