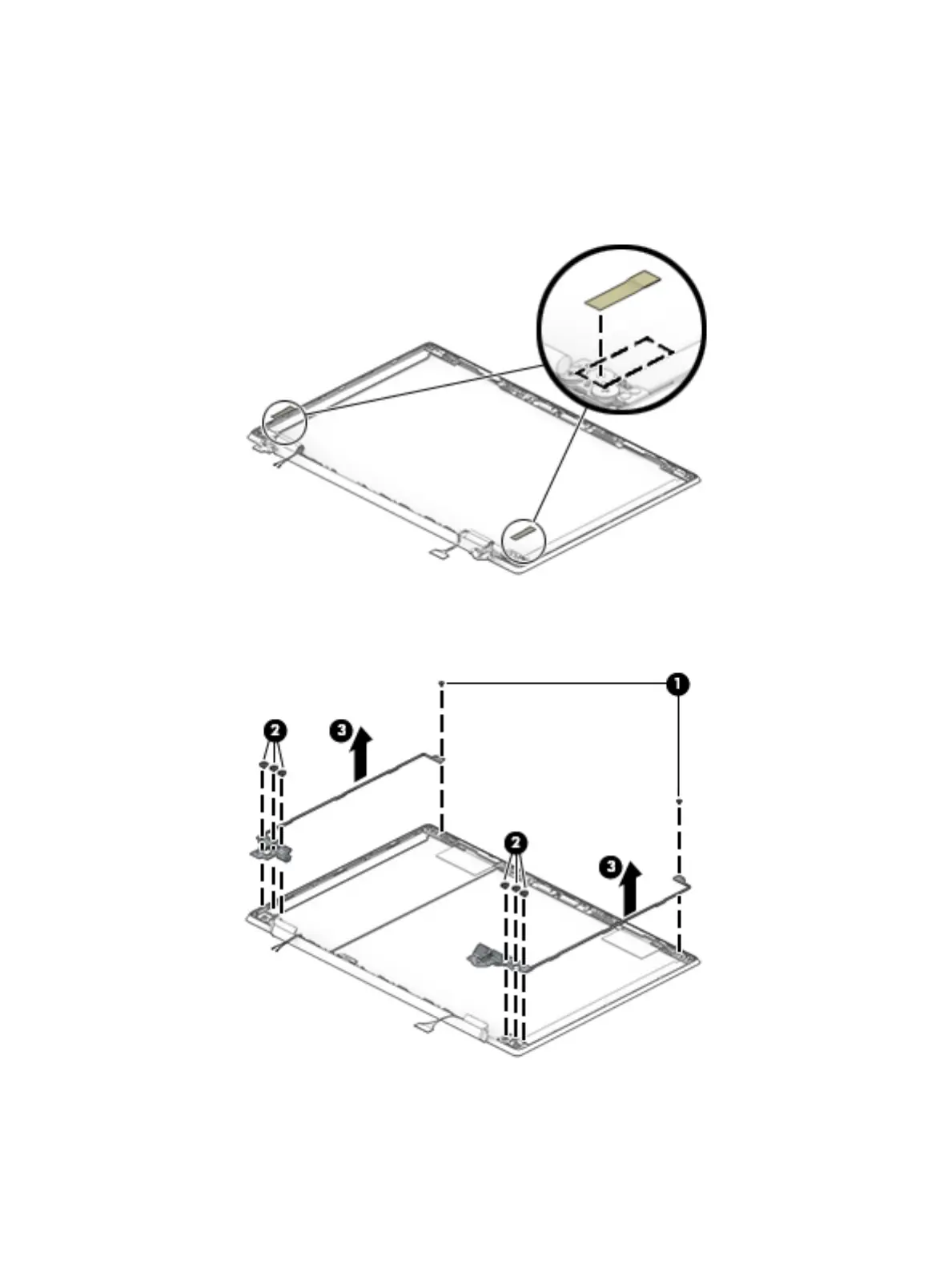

12. If it is necessary to replace the display hinges:
a. Remove the two Phillips M2.0×2.5 screws (1) from the top of the hinges.
b. Remove the six Phillips M2.0×2.5 broad head screws (2) from the bottom of the hinges.
c. Remove the two gaskets from the bottom of the display hinges as shown in the following
illustration. The gaskets are available using spare part number L45222-001.
d. Remove the display hinges (3).
The display hinges are available using spare part number L37382-001.
13. If it is necessary to replace the display panel cable:
Component replacement procedures 51
