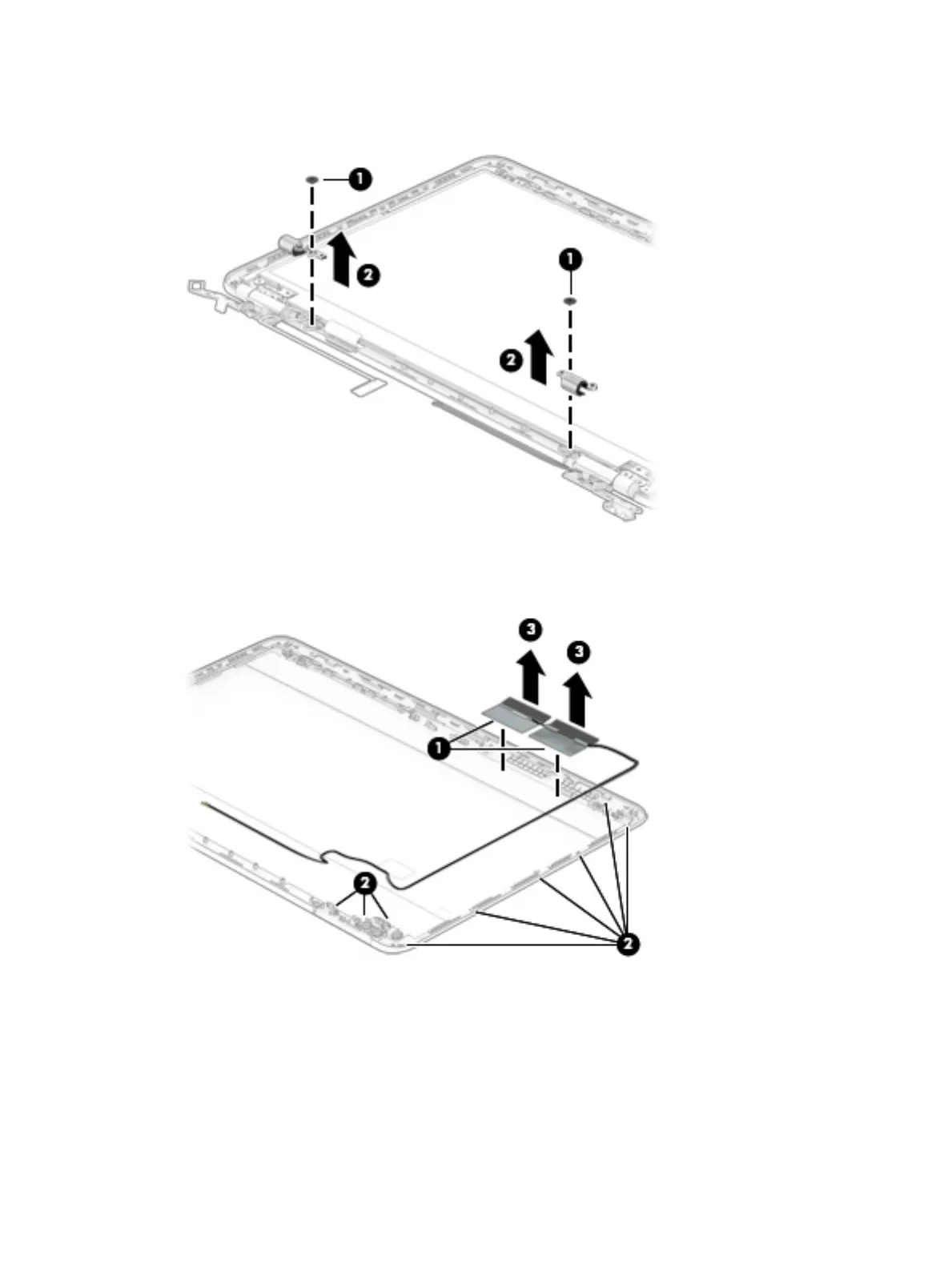

14. Remove Phillips M2.0x2.0 screw from each hinge cover (1), and then remove the hinge covers from the
enclosure (2).
15. If it is necessary to remove the WLAN antennas from the back cover (1), release the WLAN cable from the
routing channels (2), and then lift the antennas and cable to remove them (3).
Reverse this procedure to install the display assembly.
64 Chapter 5 Removal and replacement procedures for authorized service provider parts
