Solid-state drive (M.2)
Description Spare part number
Solid state drive for use in the following models: 15-dp0000~0999
●
Optane memory module, 16 GB, PCIe L43005-001
●
256 GB, PCIe L44430-001
●
128 GB, SATA-3 L43004-001
Solid state drive for use in the following models: 15-bc300~399, 15-bc400~499
●
Optane memory module, 16 GB, PCIe L27067-001
●
128 GB, SATA-3. TLC 759848-032
●
128 GB, SATA-3, Value 827560-017
●
256 GB, PCIe 3 × 4 SS, TLC 847109-005
●
512 GB, PCIe 3 × 4 SS, TLC 847110-002
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 34).
2. Remove the base enclosure (see Base enclosure on page 34).
3. Disconnect the cable from the battery (see Battery on page 36).
Remove the solid-state drive:
▲

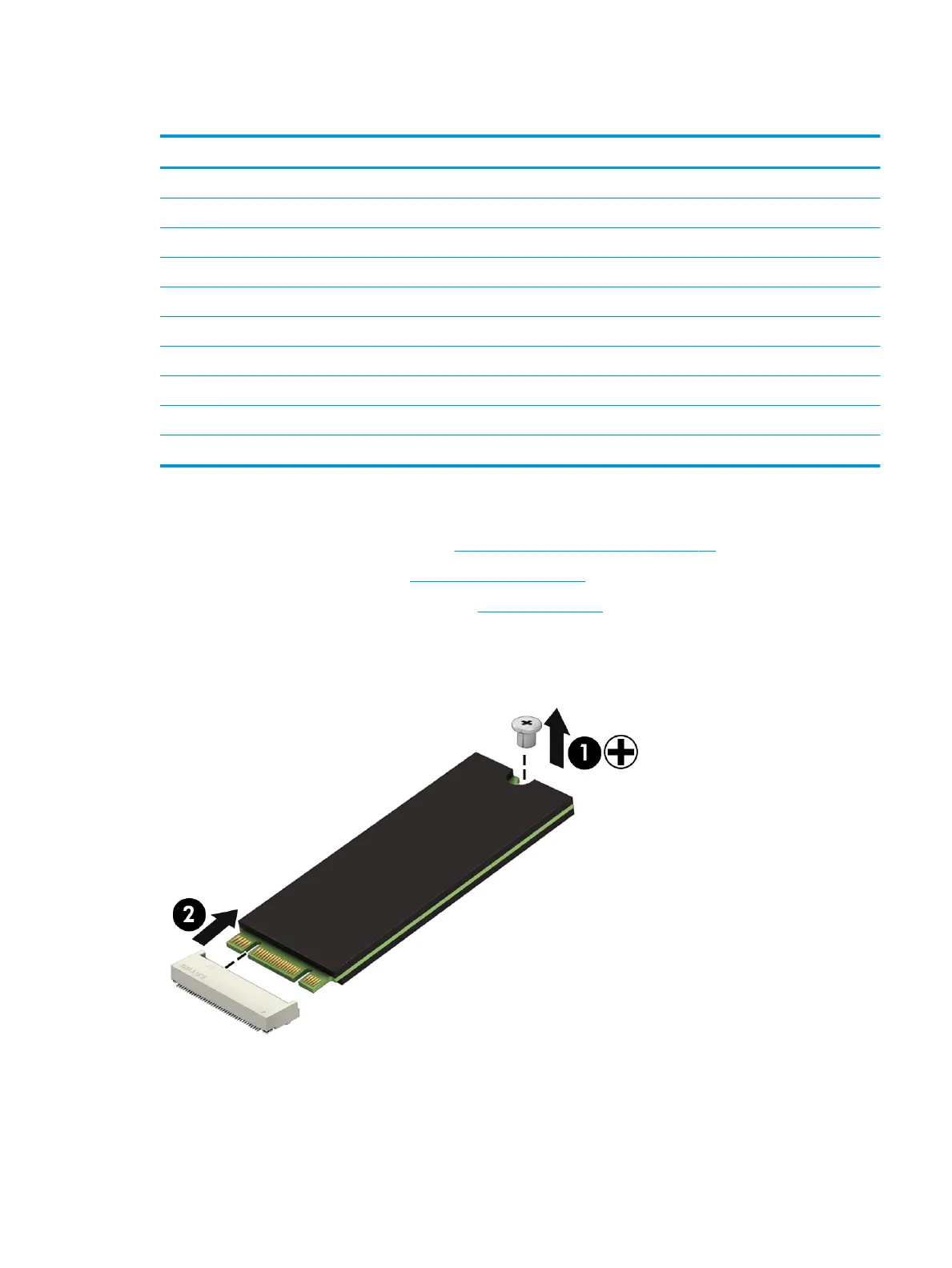

Remove the Phillips M2.0 × 3.0 screw (1), and then pull the solid-state drive away from the connector
(2).
Reverse this procedure to install the solid-state drive.
Component replacement procedures 41
