Power connector
Description Spare part number
Power connector cable for use in model numbers: 15-dp0000~0999 L42996-001
Power connector cable for use in model numbers: 15-bc300~399, 15-bc400~499 858021-001
Before removing the power connector, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 34).
2. Remove the base enclosure (see Base enclosure on page 34)
3. Disconnect the cable from the battery (see Battery on page 36), and then remove the following
components:
a. Solid-state drive (see Solid-state drive (M.2) on page 41).
b. Fans (see Fans on page 52).
c. System board (see System board on page 53).

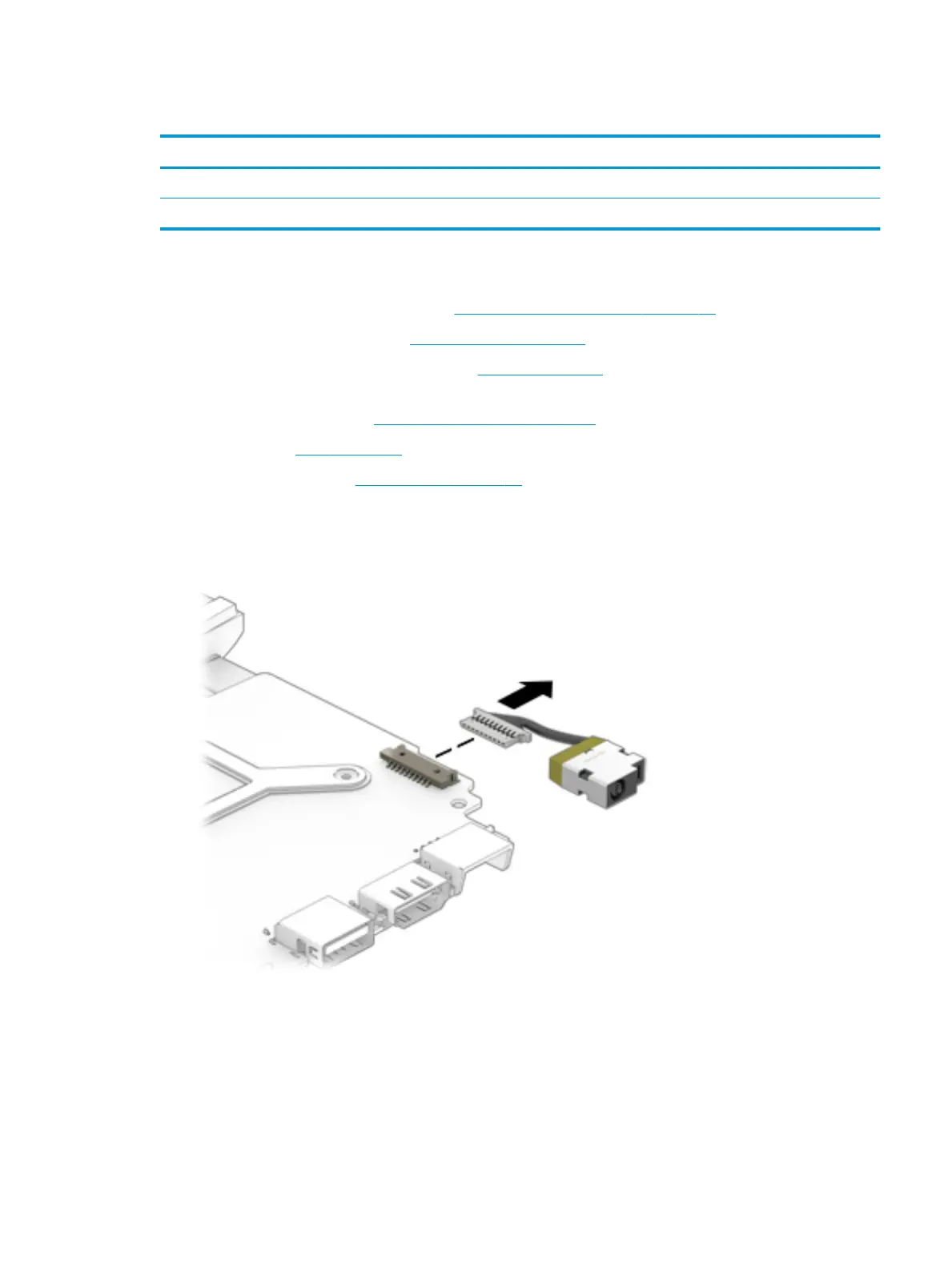

Remove the power connector:
1. Position the removed system board upside down.
2. Disconnect the connector cable, and then remove the power connector.
Reverse this procedure to install the power connector.
Component replacement procedures 57
