WLAN module
Description Spare part number
Intel Dual Band wireless-AC 7265 802.11ac, 2 × 2, WiFi + Bluetooth 4.2 Combo Adapter (non-vPro) 793840-005
Realtek RTL8822BE 802.11ac 2 × 2 WiFi + Bluetooth 4.2 Combo Adapter 924813-855
Before removing the WLAN module, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 34).
2. Remove the base enclosure (see Base enclosure on page 34).
3. Disconnect the cable from the battery (see Battery on page 36).
Remove the WLAN module:

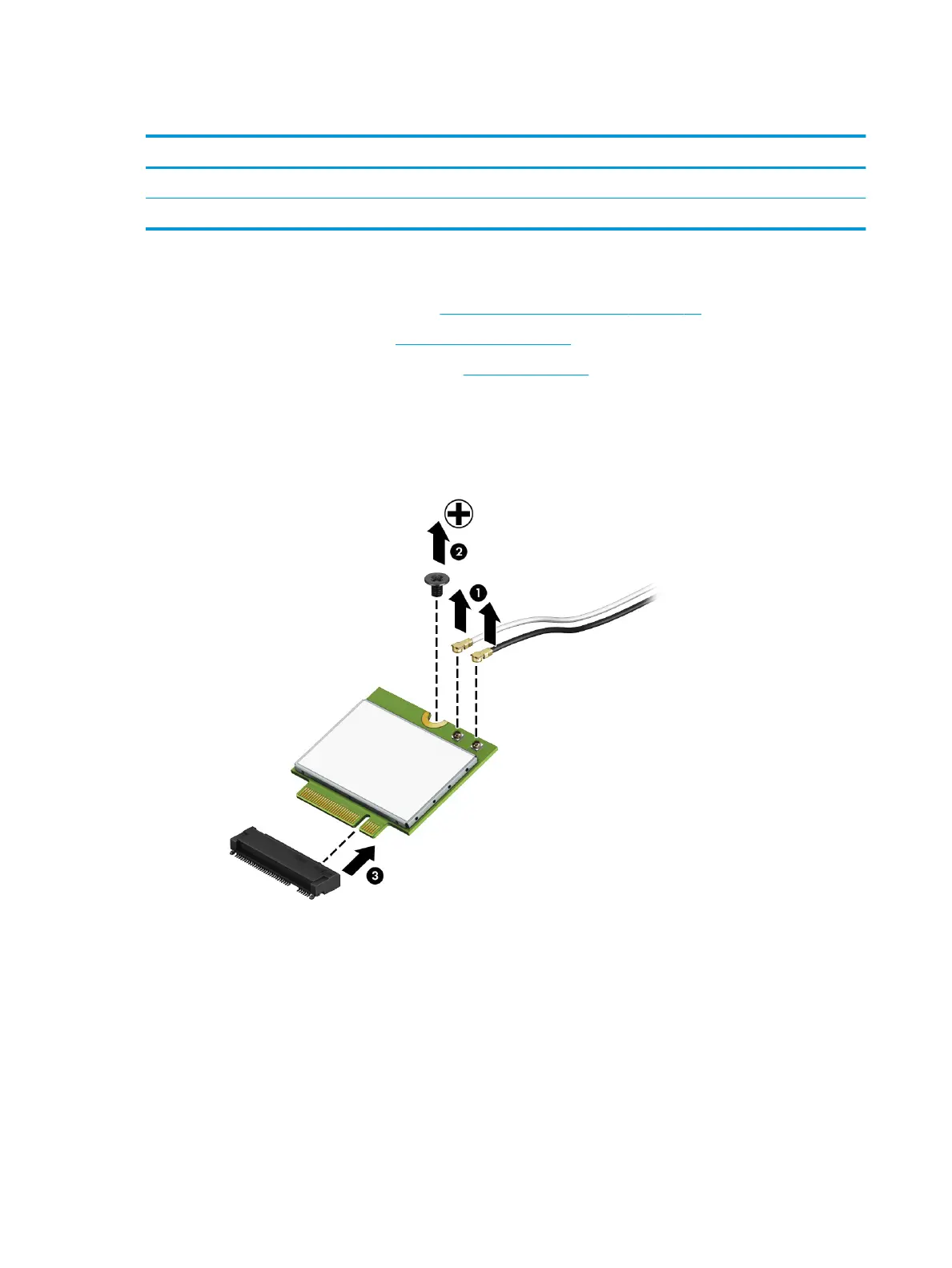

1. Carefully disconnect the two antenna cables from the module (1).
2. Remove the Phillips M2.0 × 3.0 screw (2), and then remove the WLAN module from the socket (3).
Reverse this procedure to install the WLAN module.
