TouchPad
Description Spare part number
TouchPad board for use in models 15-dp0000~15-dp0999 860364-001
TouchPad board for use in models 15-bc300~15-bc399 and 15-bc400~15-bc499 L06001-001
TouchPad cable for use in models 15-dp0000~0999 L42995-001
TouchPad cable for use in models 15-bc300~15-bc399 and 15-bc400~15-bc499 858967-001
Before removing the TouchPad, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 34).
2. Remove the base enclosure (see Base enclosure on page 34).
3. Remove the battery (see Battery on page 36).
Remove the TouchPad:

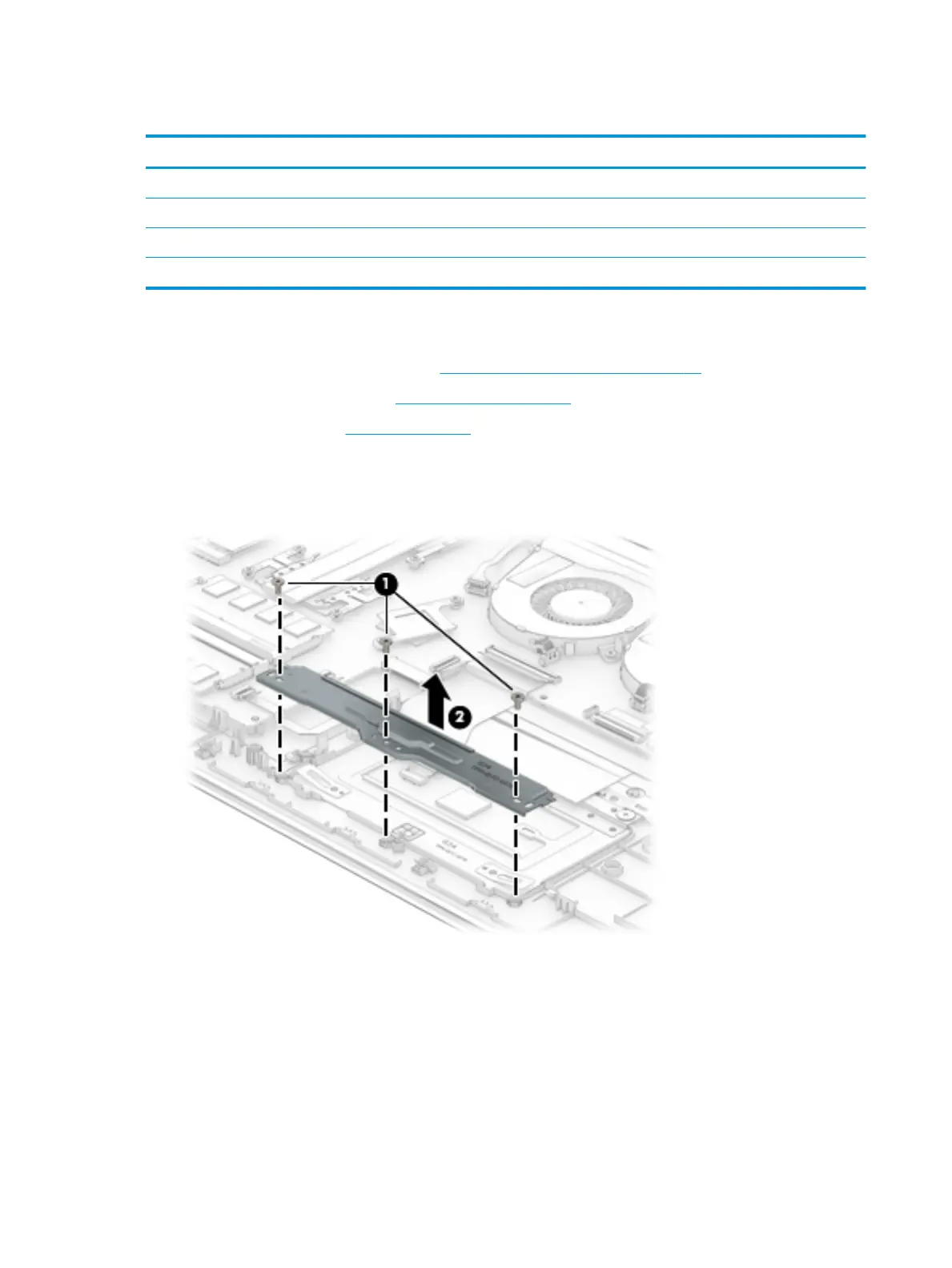

1. Remove the three Phillips M2.0 × 2.0 screws that secure the TouchPad bracket (1), and then remove the
TouchPad bracket from the computer (2).
2. Disconnect the TouchPad cable from the ZIF connector (1) on the TouchPad.
3. If tape secures the TouchPad to the computer, remove the.
4. Remove the three Phillips M2.0 × 2.5 screws (2) that secure the TouchPad to the computer.
50 Chapter 5 Removal and replacement procedures for authorized service provider parts
