d. Models with an HD camera
The display panel cable is available using the following spare part numbers:
L23903-001 – non-touch display assembly and an HD camera
L23904-001 – non-touch display assembly and an infrared camera
L23905-001 – touch display assembly and an HD camera
L23906-001 – touch display assembly and an infrared camera

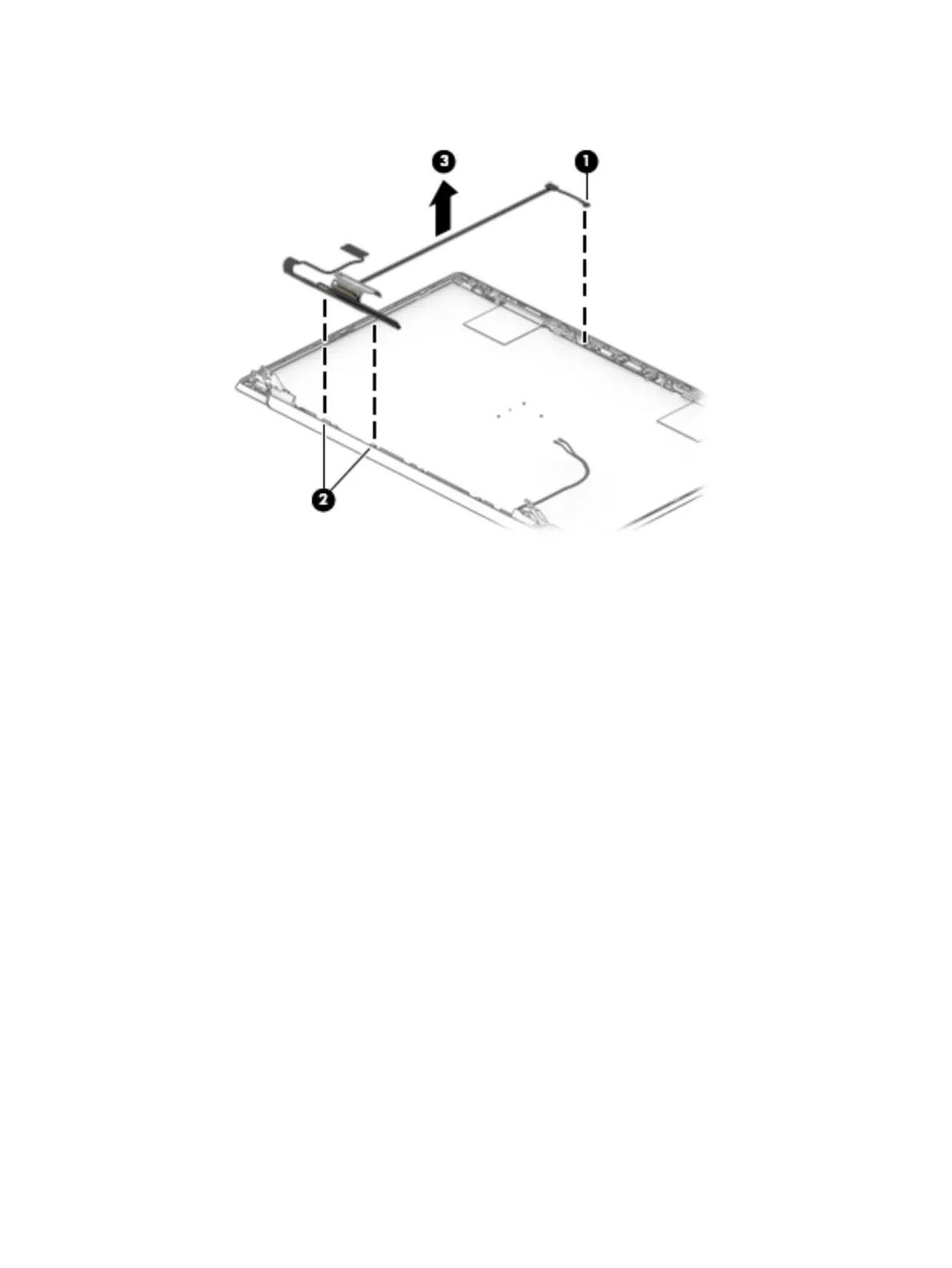

14. If it is necessary to remove the wireless antenna cables and transceivers:
a. Detach the wireless antenna transceivers (1) from the display back cover. The wireless antenna
transceivers are attached to with double-sided adhesive.
b. Release the wireless antenna cables from the retention clips (2) and routing channels built into the
sides of the display back cover.
Component replacement procedures 47
