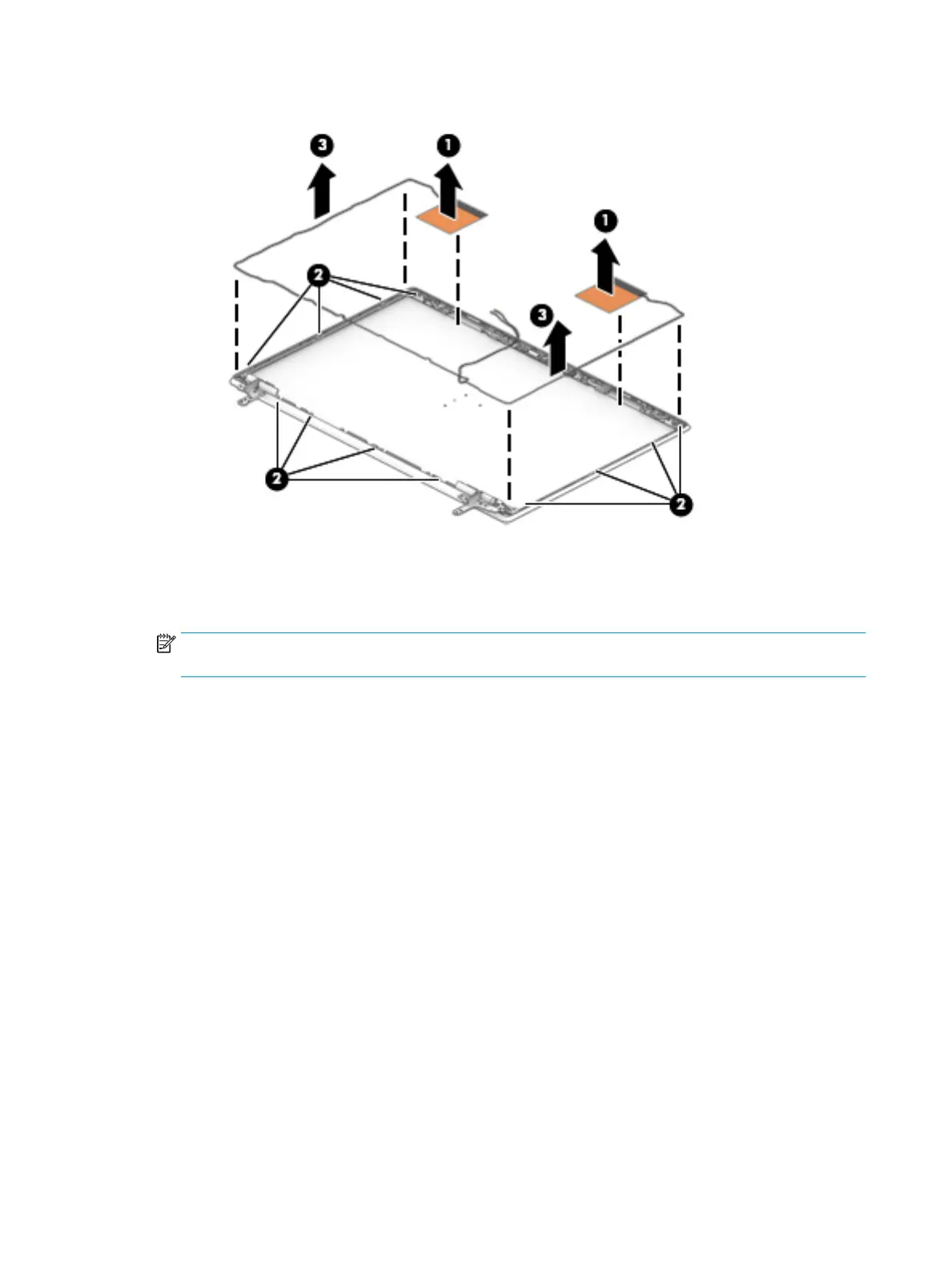

c. Remove the antennas from the display back cover (3).
The wireless antenna cables and transceivers are available using spare part number L24790-001.
Remove the display assembly on models equipped with GTX graphics:
1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE: The WLAN antenna cable labeled "1/MAIN" connects to the WLAN module "Main" terminal. The
WLAN antenna cable labeled "2/AUX" connects to the WLAN module "Aux" terminal.
2. Release the WLAN antenna cables from the retention clips and routing channel built into the right
speaker (2).
3. Disconnect the display cable from the system board ZIF connector (3).
4. Remove the left speaker (4).
48 Chapter 5 Removal and replacement procedures for authorized service provider parts
