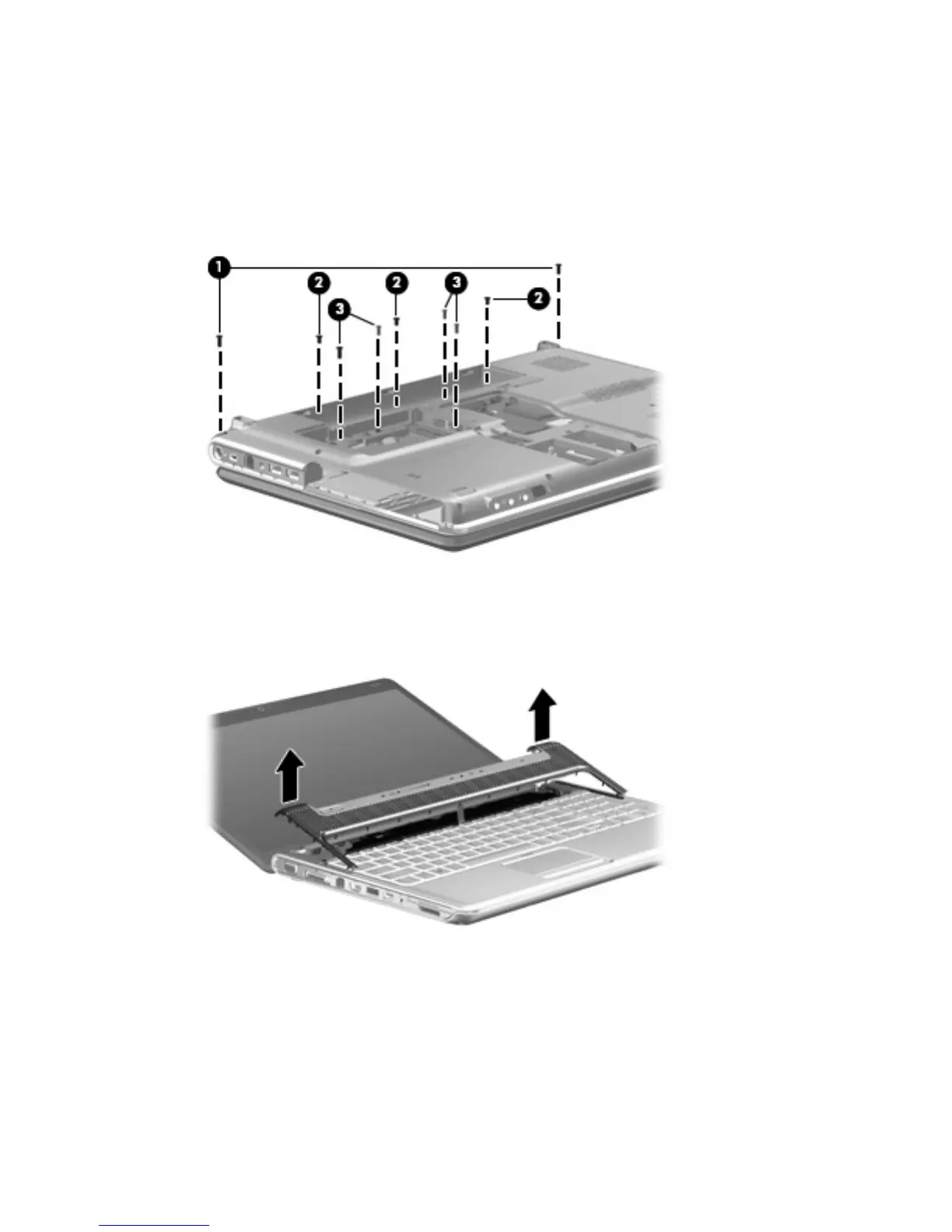

2. Remove the following screws:
(1) Two Phillips PM2.5×6.5 screws that secure the switch cover to the computer
(2) Three Phillips PM2.5×4.0 screws that secure the switch cover to the computer (these are inside
the battery bay)
(3) Four Phillips PM2.5×6.5 screws that secure the keyboard to the computer
3. Turn the computer display-side up, with the front toward you.
4. Open the computer as far as possible.
5. Lift the rear edge of the switch cover until it detaches from the computer.
Component replacement procedures 77
