HP Pavilion DV6-1030 Maintenance And Service Guide

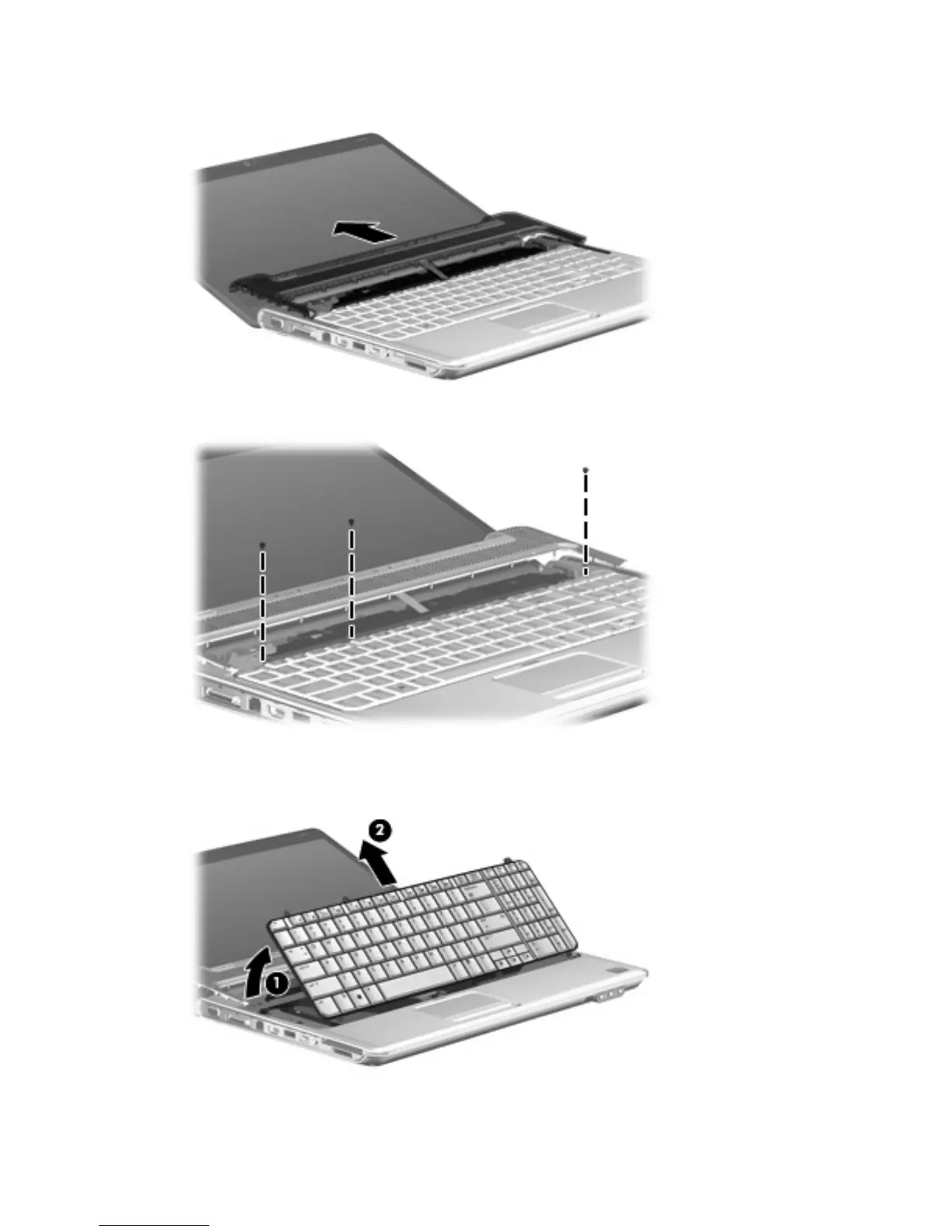

6. Move the switch cover back so it rests on the display.
7. Remove the three Phillips PM2.0×3.0 screws that secure the keyboard to the computer.
8. Lift the rear edge (1) of the keyboard .
9. Slide the keyboard (2) back until the keyboard connector on the system board is accessible.
78 Chapter 4 Removal and replacement procedures

HP Pavilion DV6-1030 Specifications

General

Brand	HP
Model	Pavilion DV6-1030
Category	Laptop
Language	English
