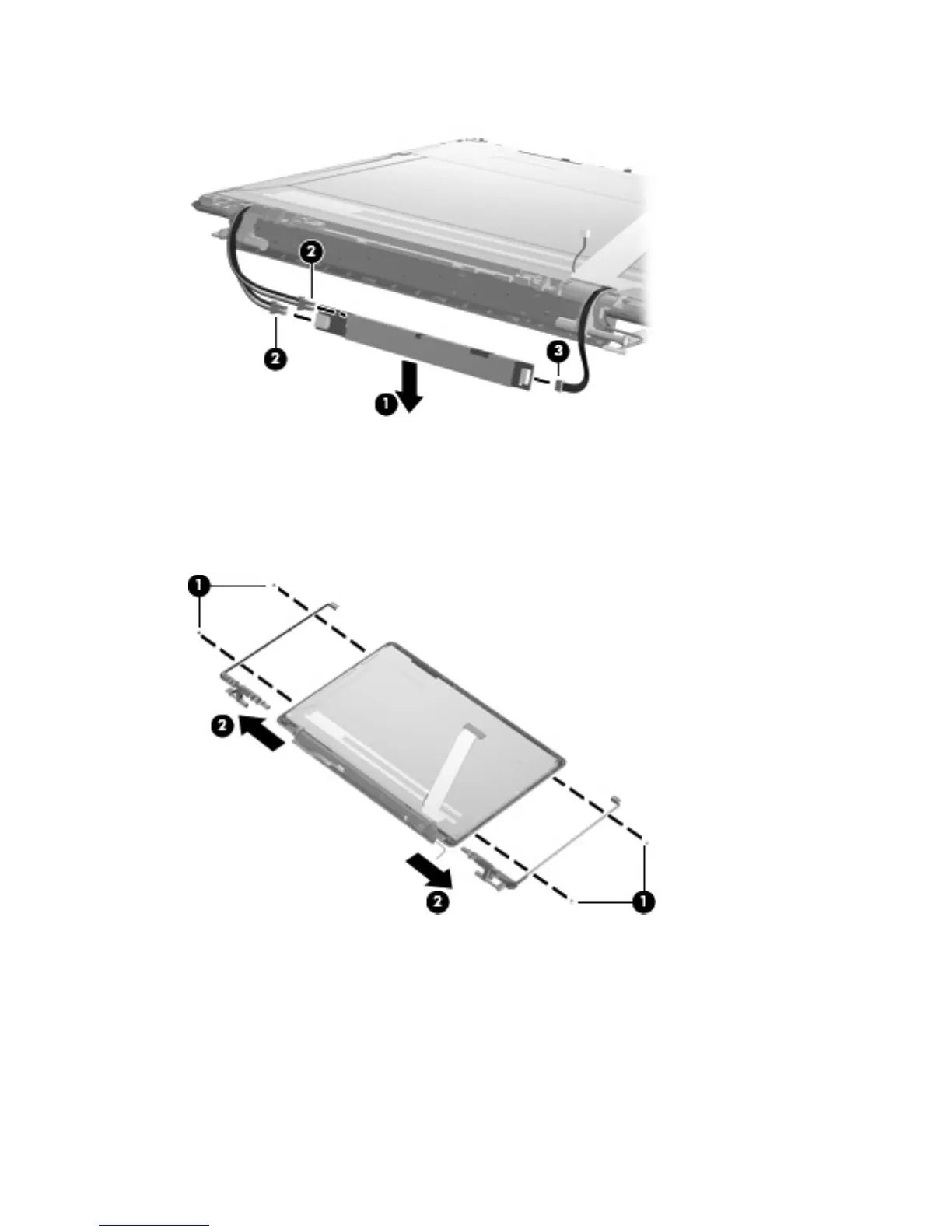

17. Disconnect the backlight cables (2) and display panel cable (3) from the display bezel.
18. Remove the display inverter. The display inverter is available using spare part number
488317-001.
19. If it is necessary to replace the display hinges, remove the four Phillips PM2.5×5.0 screws (1) that
secure the display hinge brackets to the display panel.
20. Remove the display hinge brackets (2).
21. Remove the two Phillips PM2.5×5.0 screws (1) that secure the display hinge to the display panel.
86 Chapter 4 Removal and replacement procedures
