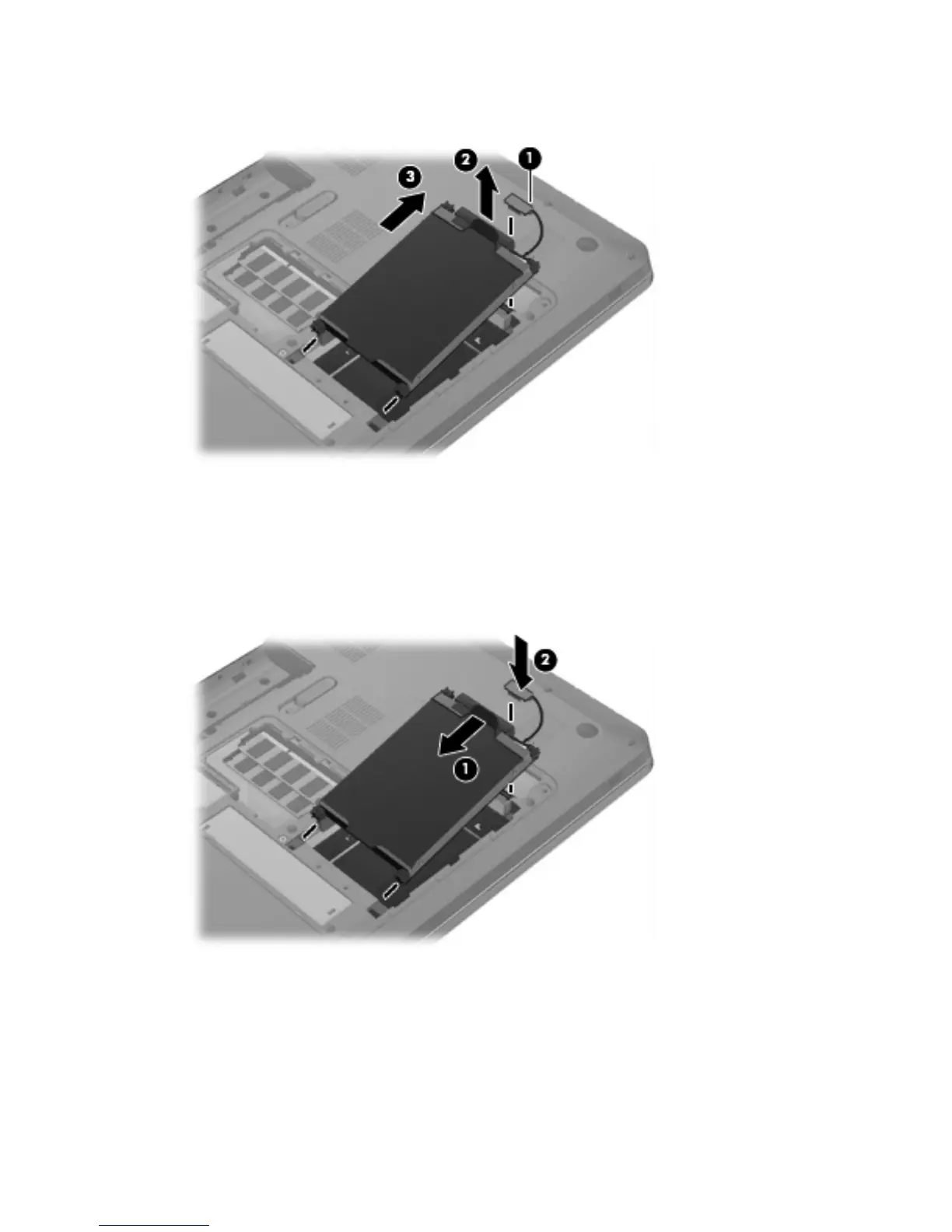

10. Using the tab (2) on the right side of the hard drive, lift the hard drive to a 45-degree angle, and
then remove the hard drive (3) from the computer.
To install the hard drive:
1. Insert the hard drive into the hard drive bay.
2. Using the tab (1), pull the hard drive to the right so that the rubber spacers tuck into the openings
on the left side of the hard drive bay.
3. Connect the hard drive cable (2) to the hard drive connector on the system board.
4. Align the tabs (1) on the hard drive cover with the notches on the computer.
5. Close the cover (2).
70 Chapter 7 Drives
