M70 Pin Assignments

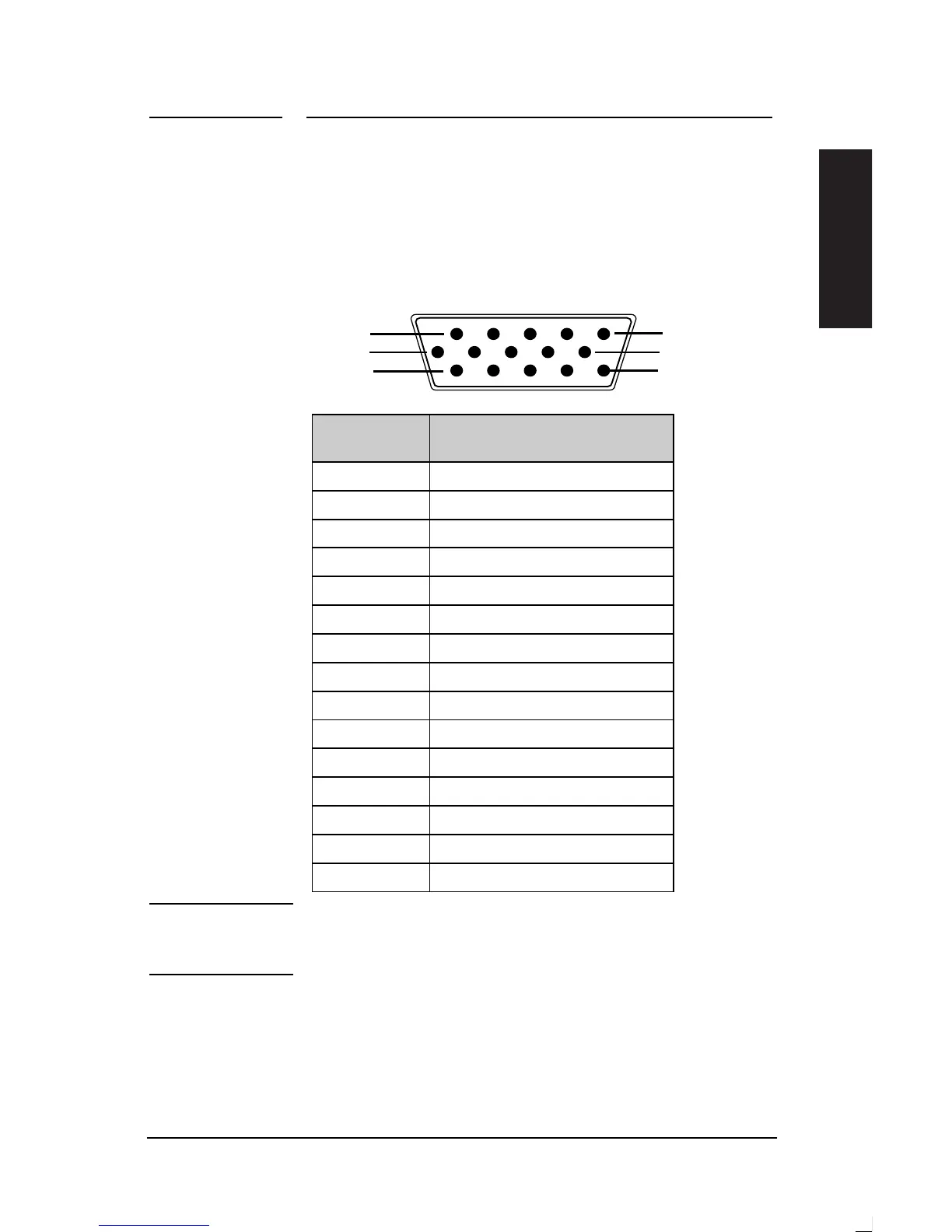

The following figure illustrates the
15-pin D-sub male video connector used
by the M70 display. The table shows
the pin assignments.
Pin 1
Pin 6
Pin 11
Pin 5
Pin 10
Pin 15
Pin
Number
Assignment
1 Red video input
2 Green video input
3 Blue video input
4 Ground
5 No connect
6 Red video return
7 Green video return
8 Blue video return
9 No connect
10 Ground
11 Ground
12 SDA data
13 Horizontal sync
14 Vertical sync
15 DDC data clock (SCL)
NOTE
Because of a policy of continuous
product improvement, pin assignments
are subject to change without notice.
