TouchPad
NOTE: The TouchPad spare part kit does not include the TouchPad bracket or TouchPad cable. The TouchPad
bracket is available using spare part number 924517-001. The TouchPad cable is available using spare part
number 924509-001.
Description Spare part number
TouchPad 924529-001
Before removing the TouchPad, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the keyboard/top cover (see Keyboard/top cover on page 24).
Remove the TouchPad:
1. Turn the keyboard/top cover upside down with the front toward you.

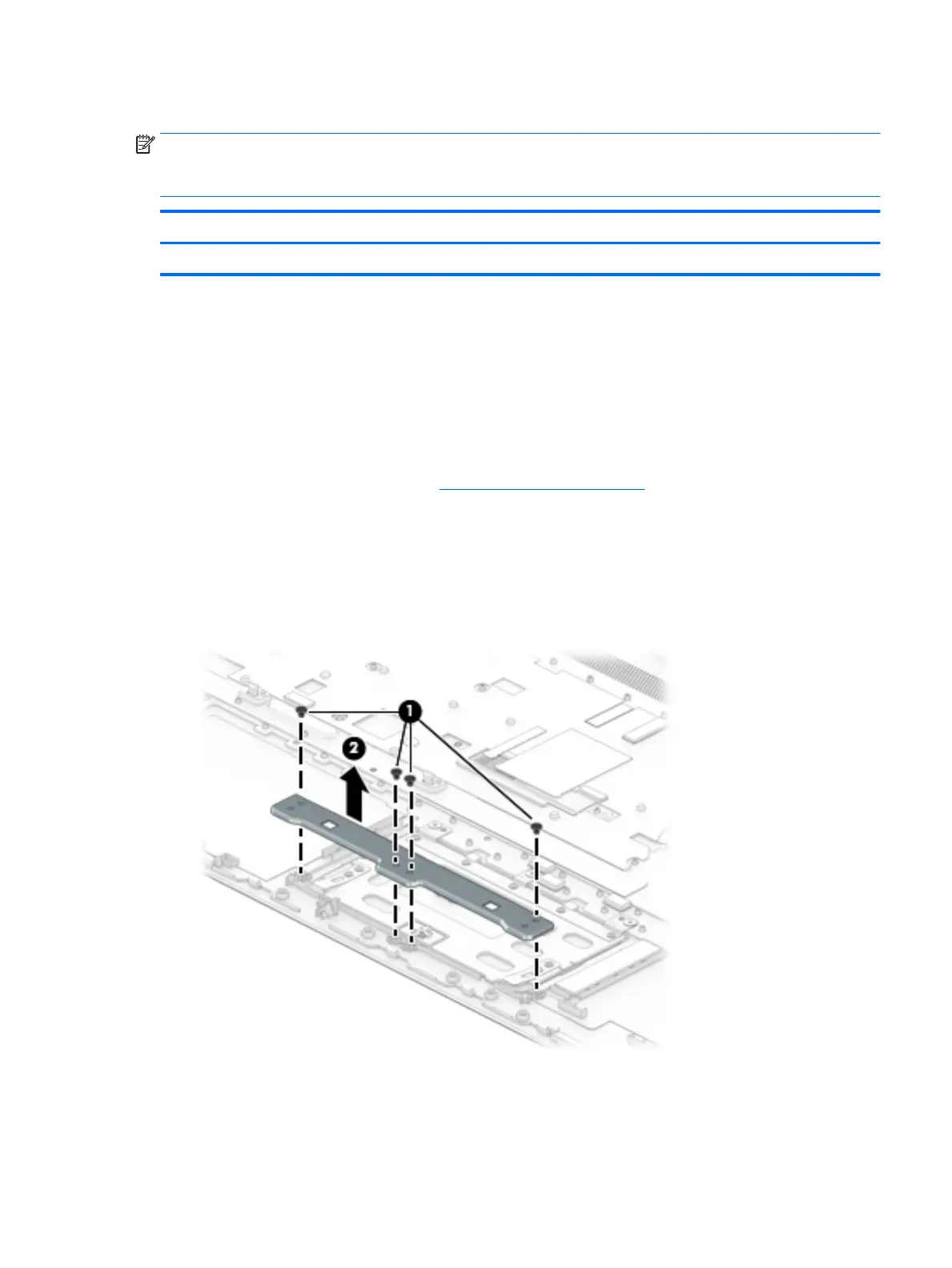

2. Remove the four Phillips PM2.0×2.8 screws (1) that secure the TouchPad bracket to the keyboard/
top cover.
3. Remove the TouchPad bracket (2).
4. Remove the three Phillips PM2.0×2.3 broad head screws (1) that secure the TouchPad to the keyboard/
top cover.
Component replacement procedures 29
