Speakers
Description Spare part number
Speakers (includes cables and 3 rubber isolators) 924538-001
Before removing the speakers, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
3. Disconnect all external devices from the computer.
4. Remove the keyboard/top cover (see Keyboard/top cover on page 24).
5. Remove the battery (see Battery on page 30).

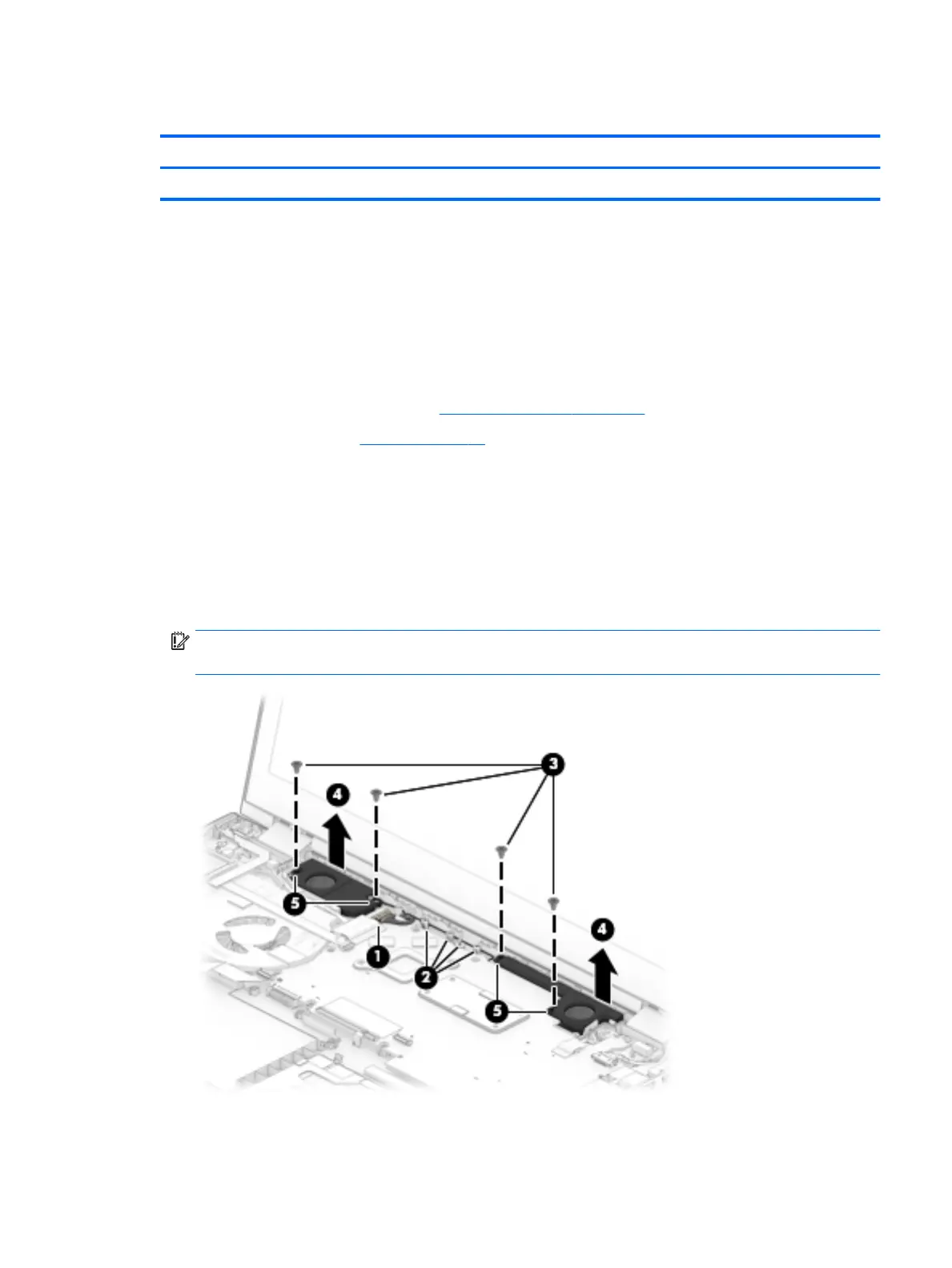

Remove the speakers:
1. Disconnect the speaker cable (1) from the system board
2. Release the display speaker cable from the retention clips (2) built into the base enclosure.
3. Remove the four Phillips PM2.0×5.5 broad head shoulder screws (3) that secure the speakers to
the base enclosure.
4. Remove the speakers (4).
IMPORTANT: When removing the speakers, make note of the location of the four rubber isolators (5).
Failure to properly install or damage to these isolators can result in degraded speaker performance.
Reverse this procedure to install the speakers.
Component replacement procedures 37
