Power connector cable
NOTE: The power connector cable spare part kit does not include the power connector cable bracket. The
power connector cable bracket is available using spare part number 924516-001.
Description Spare part number
Power connector cable (does not include bracket) 808155-024
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the keyboard/top cover (see Keyboard/top cover on page 24), and then remove
the following components:
a. Battery (see Battery on page 30)
b. Speakers (see Speakers on page 37)
c. System board (see System board on page 38)

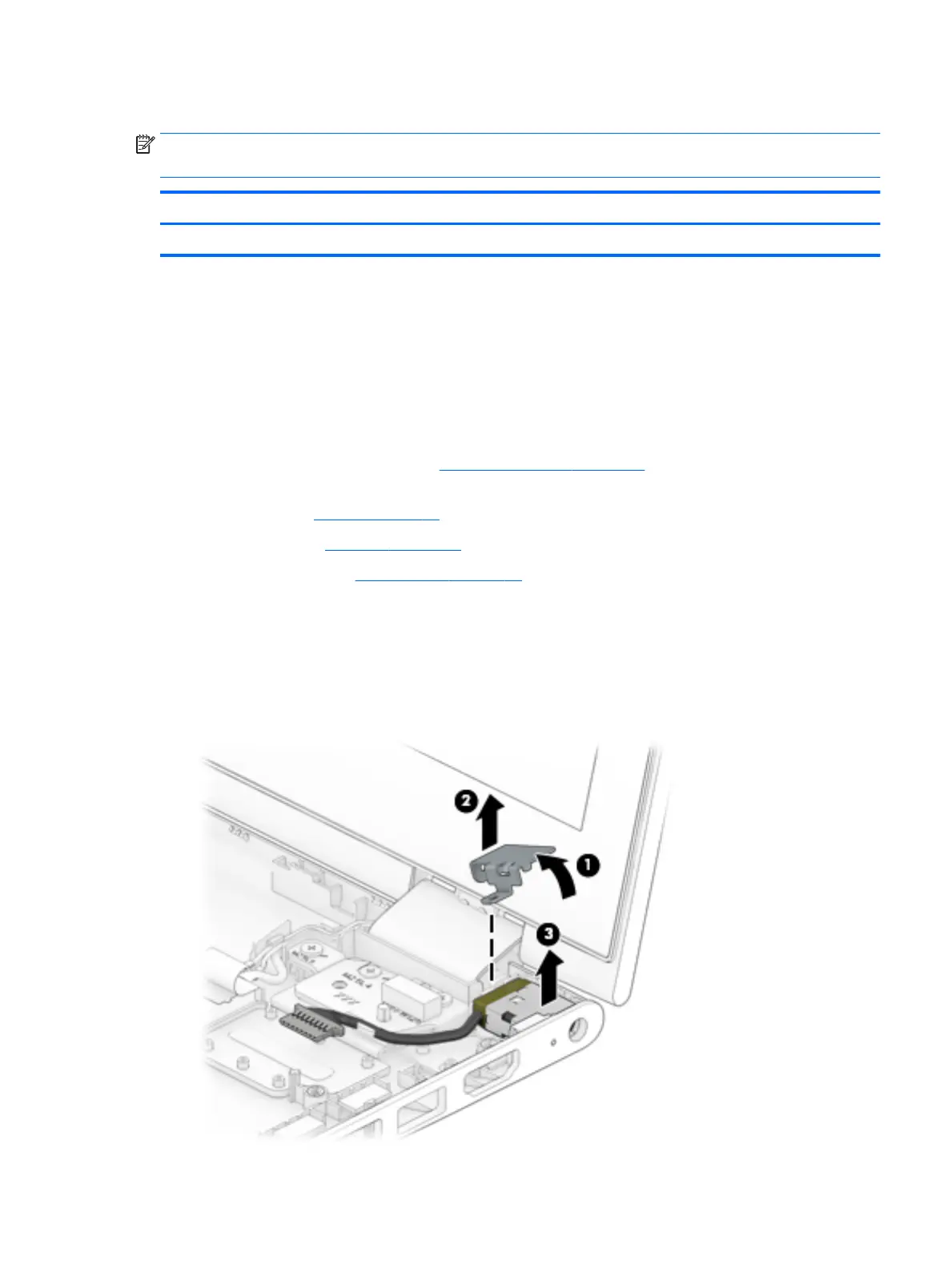

Remove the power connector cable:
1. Lift the right side of the power connector cable bracket (1) to release the bracket from
the power connector.
2. Remove the power connector cable bracket (2).
3. Remove the power connector cable (3).
Component replacement procedures 47
