Audio jack board
NOTE: The audio jack board spare part kit does not include the audio jack board cable. The audio jack
board cable is available using spare part number 924278-001.
Description Spare part number
Audio jack board (includes audio jack, volume control actuators, and hard drive activity light; does not
include audio jack board cable)
924527-001
Before removing the audio jack board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the keyboard/top cover (see Keyboard/top cover on page 24).
5. Remove the battery (see Battery on page 30).

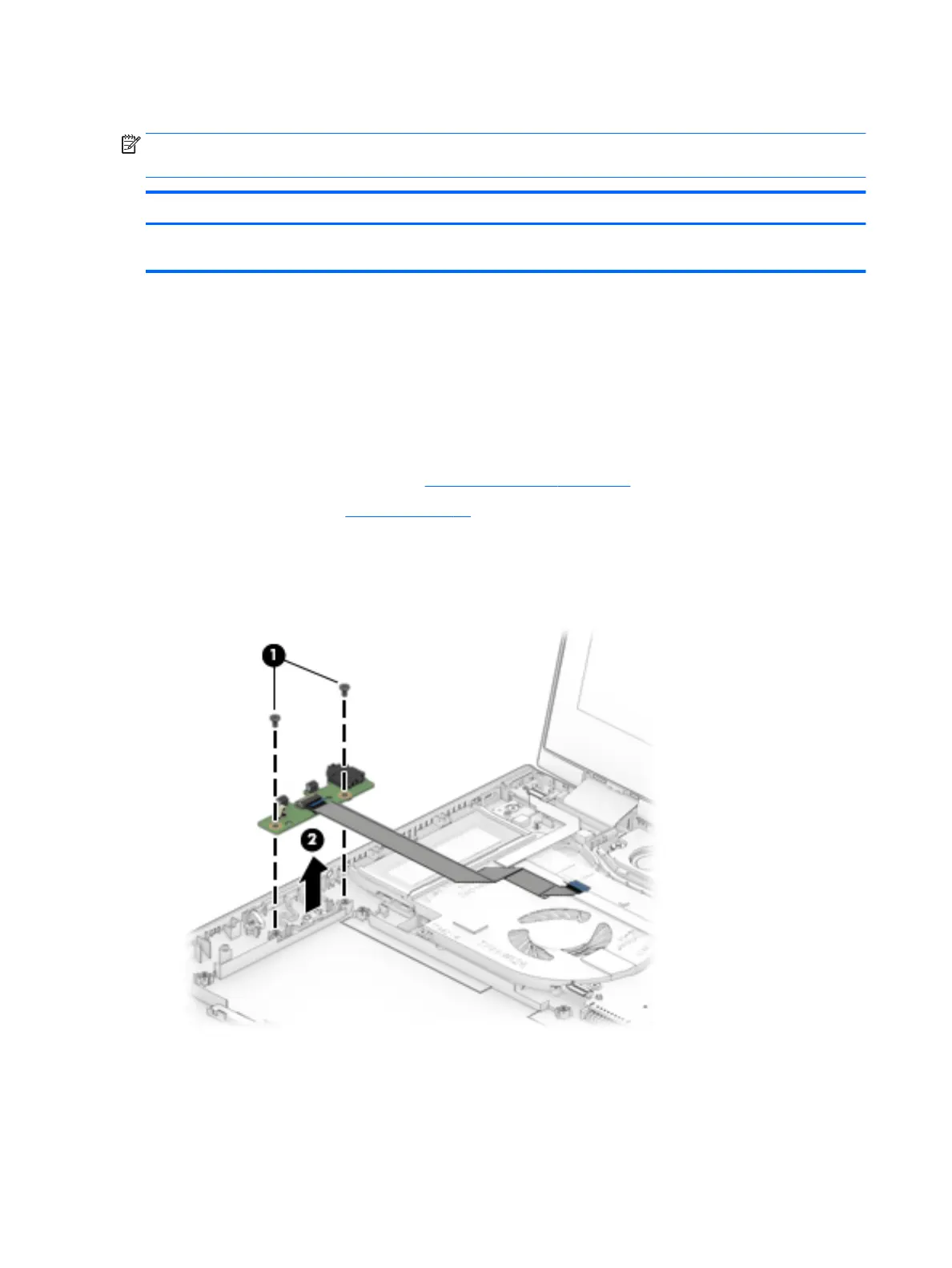

Remove the audio jack board:
1. Remove the two Phillips PM2.0×4.6 screws (1) that secure the audio jack board to the base enclosure.
2. Remove the audio jack board (2).
Reverse this procedure to install the audio jack board.
34 Chapter 5 Removal and replacement procedures
