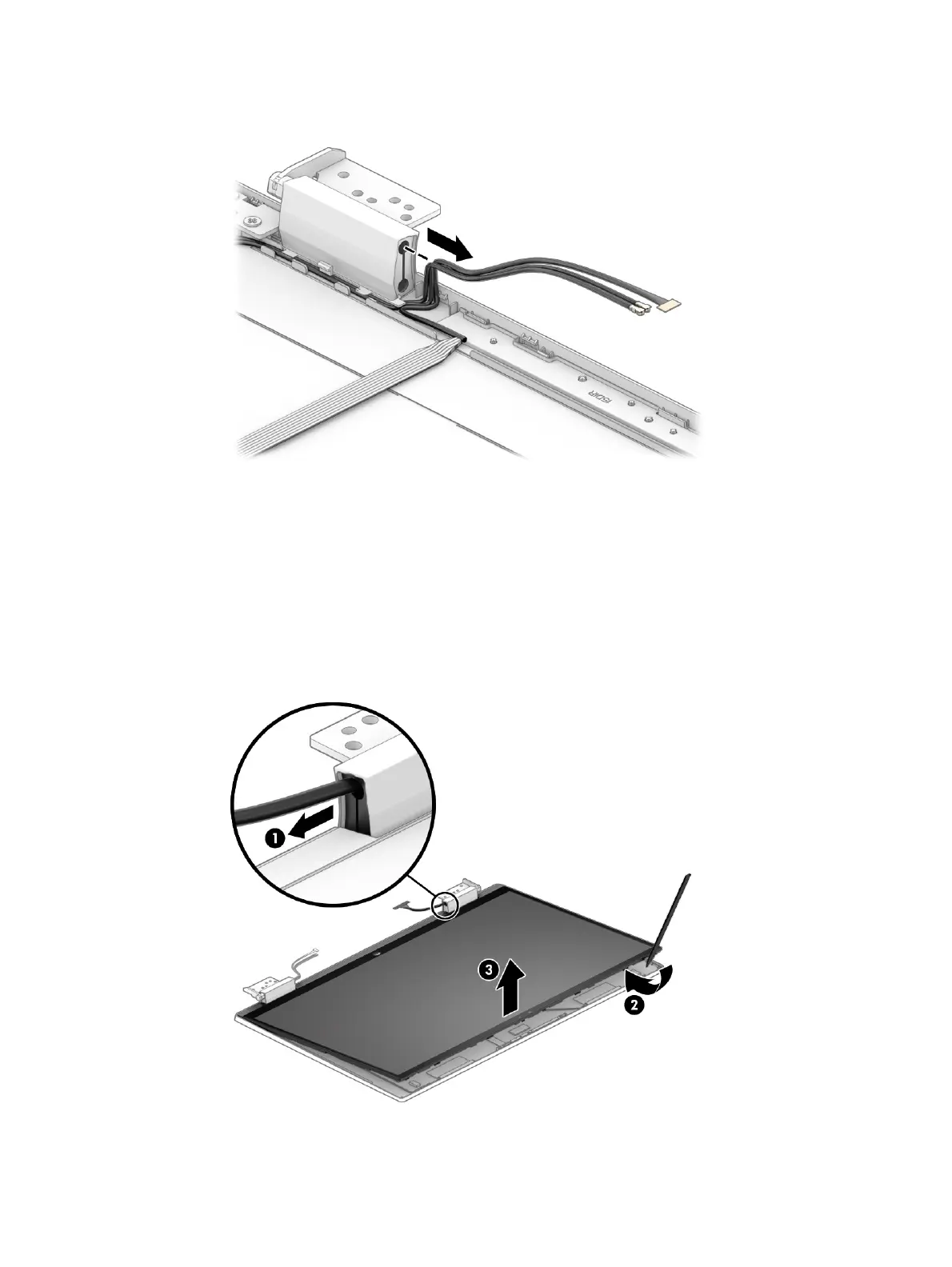

a. Release the antenna cables from the left hinge.
b. Remove the cables from the display hinge cover (1).
c. Insert a at tool into the seam between the display panel and back cover, and then pull the tool
around the entire top, right, and left sides of the panel to release it from the back cover (2).
d. Remove the display panel from the display back cover (3).
Touch panel kits are available as the following spare part numbers:
M45119-001: HD panel
M45118-001: FHD panel
8. If you need to remove the display cable kit from the display panel:
Display assembly
49
