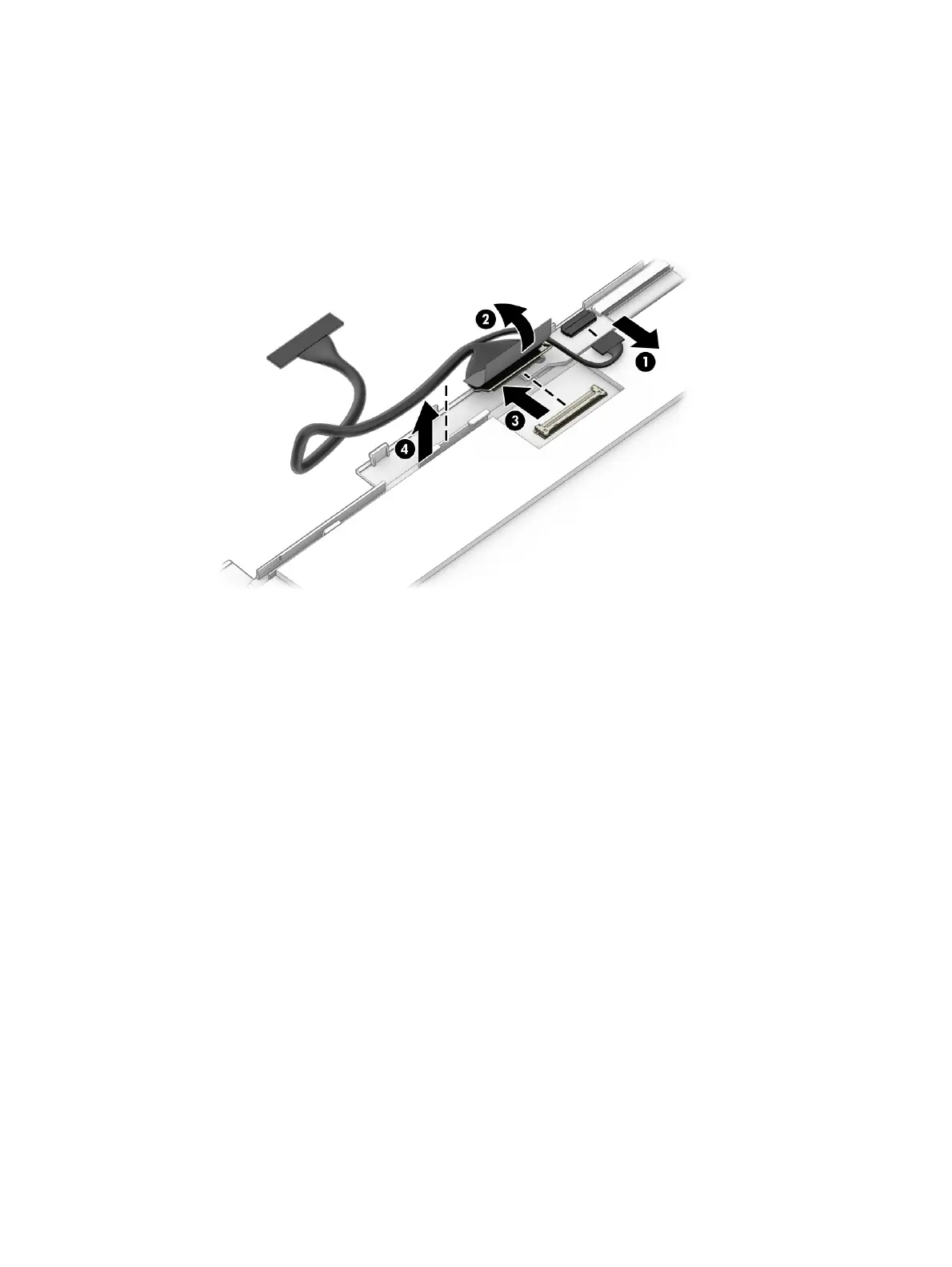

a. Disconnect the cable from the touch control board (1).
b. Remove the tape from the connector on the back of the display panel (2), and then disconnect the
cable from the panel (3).
c. Remove the cable from the clips and from the display panel (4).
The display/touch control board cable is available as spare part number M45120-001.
9. If you need to remove the hinges from the display back cover:
a. Remove the three Phillips M2.5 × 4.0 screws (1) from each hinge.
b. Remove the hinges from the display back cover (2).
The hinges are available in the Hinge Kit as spare part number M45115-001 for FHD models and
M45114-001 for HD models.
50 Chapter 5Removal and replacement procedures for authorized service provider parts
