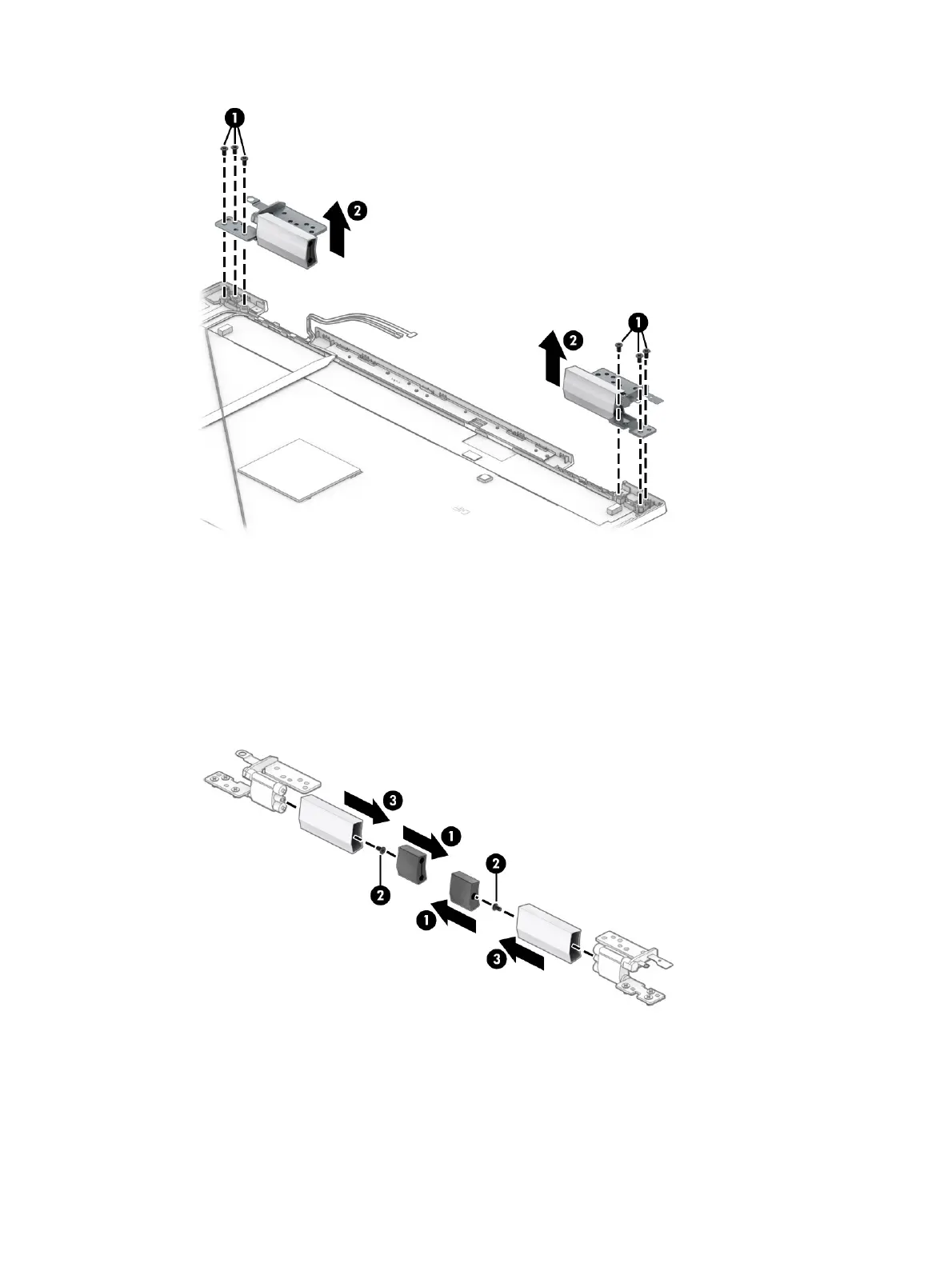

10. If you need to remove a hinge cover from a display hinge:
a. Remove the rubber insert from the hinge (1).
b. Remove the Phillips M1.6 × 2.0 screw (2) that secures the hinge cover to the hinge.
c. Slide the hinge cover o the hinge (3).
The hinge covers are available as spare part number M45117-001 for FHD models and M45116-001 for
HD models.
11. If you need to remove the touch control board from the display:
a. Disconnect the smaller cable (1) and the two larger ZIF cables (2) from the board.
b. Use a tool (3) to release the board from the display panel (4).
Display assembly
51
