Power connector cable
Description Spare part number
Power connector cable 808155-005
Before removing the power connector cable, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the keyboard/top cover (see Keyboard/top cover on page 34), and then remove
the following components:
a. Battery (see Battery on page 42).
b. USB port shield (see USB port shield on page 50).
c. System board (see System board on page 51).

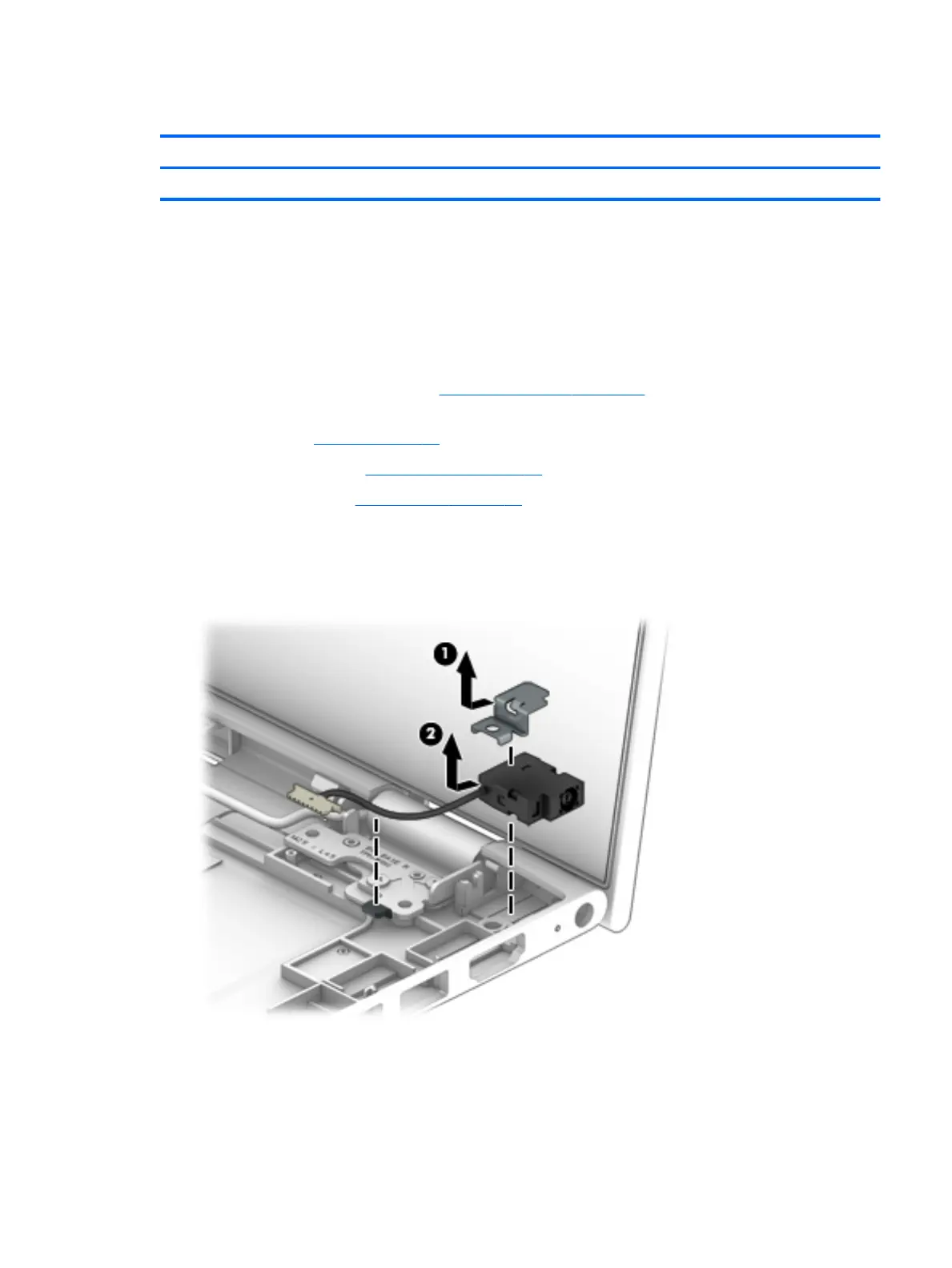

Remove the power connector cable:
1. Slide the power connector cable bracket forward, and then remove it (1).
2. Slide the power connector cable forward, and then remove it (2).
Reverse this procedure to install the power connector cable.
Component replacement procedures 61
