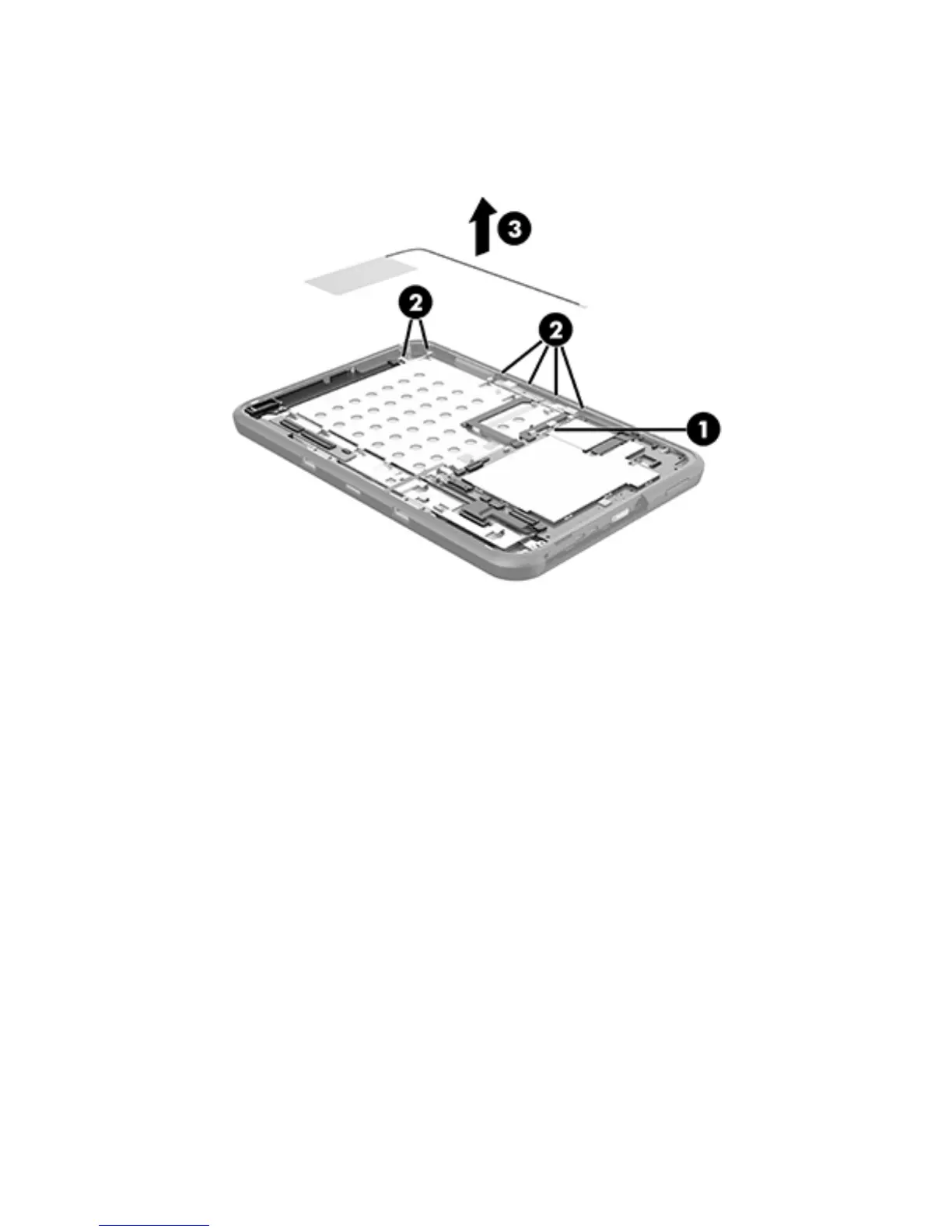

7. Detach the WWAN main antenna transceiver (3) from the display panel assembly. (The WWAN main
antenna transceiver is attached to the display panel assembly with double-sided adhesive.)
8. Remove the WWAN main antenna cable and transceiver.
9. Disconnect the WLAN main antenna cable (1) from the WLAN module main terminal.
10. Release the WLAN main antenna cable from the retention clips (2) built into the display panel assembly.
30 Chapter 5 Removal and replacement procedures
