HP ProBook 4525s - Notebook PC

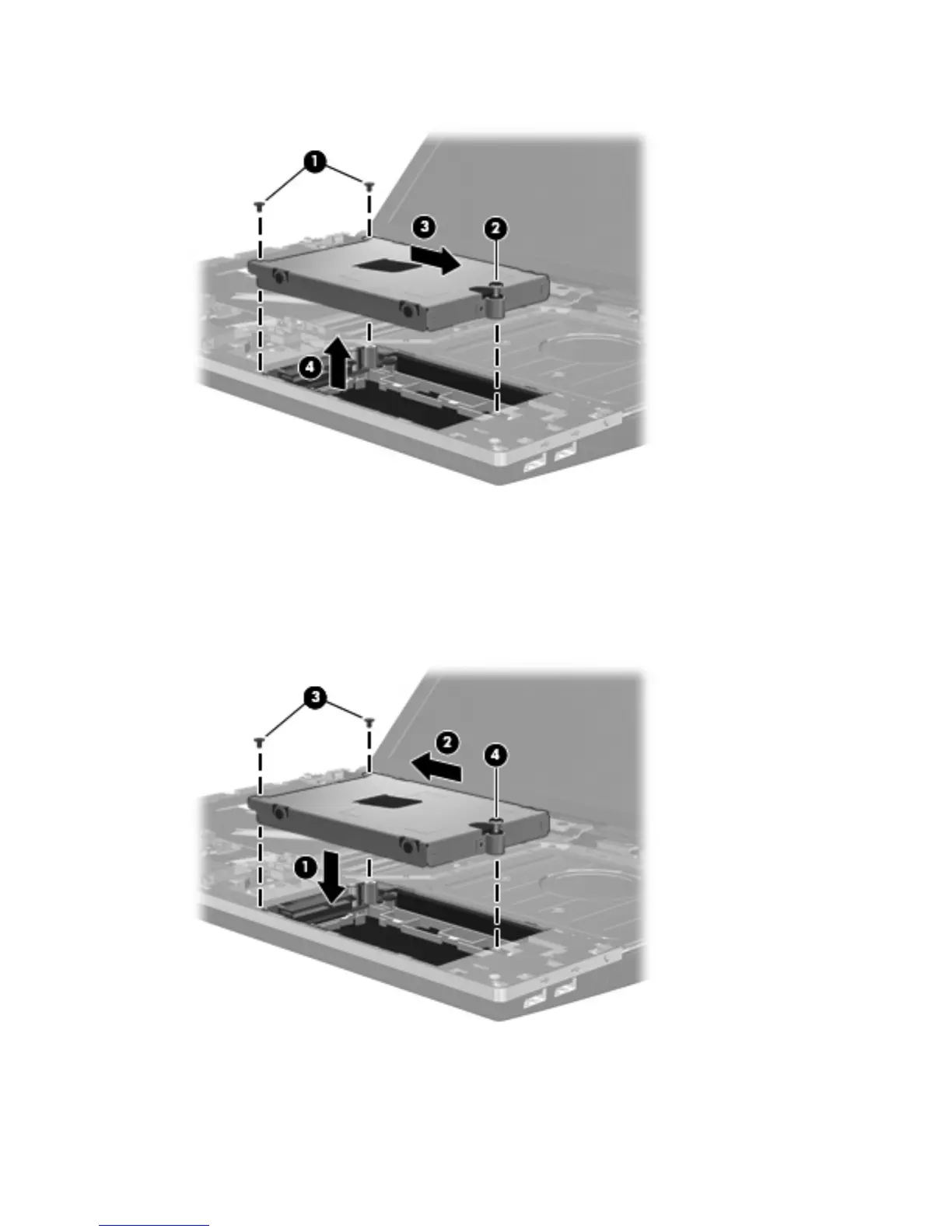

18. Lift the hard drive (4) out of the hard drive bay.
To install a hard drive:
1. Insert the hard drive into the hard drive bay (1).
2. Use the plastic tab (2) on the hard drive to slide the hard drive to the left to connect it to the system
board.
3. Replace the 2 hard drive screws (3), and then tighten the captive screw (4) to secure the hard drive
to the computer.
50 Chapter 5 Drives
